Chapter 6
6

CONNECTION TO THE PERIPHERAL

6.1

Connector pin assignment

WARNING!
Interferences are emitted and coupled through the connection cable.
A wrong cable would damage the operating and functions safeties of
your system.
We recommend to use our standard connection cable.
Make sure by the installation of the connection cable that:
- it is installed within a sufficient distance from sensitive analog signals
- the distance from potential interference sources (eg.: frequency converters,
supply circuits) is as long as possible.
If the output channels are operating with maximum load, you may install the
connection cable with the appropriate cross section in a well-aerated room.

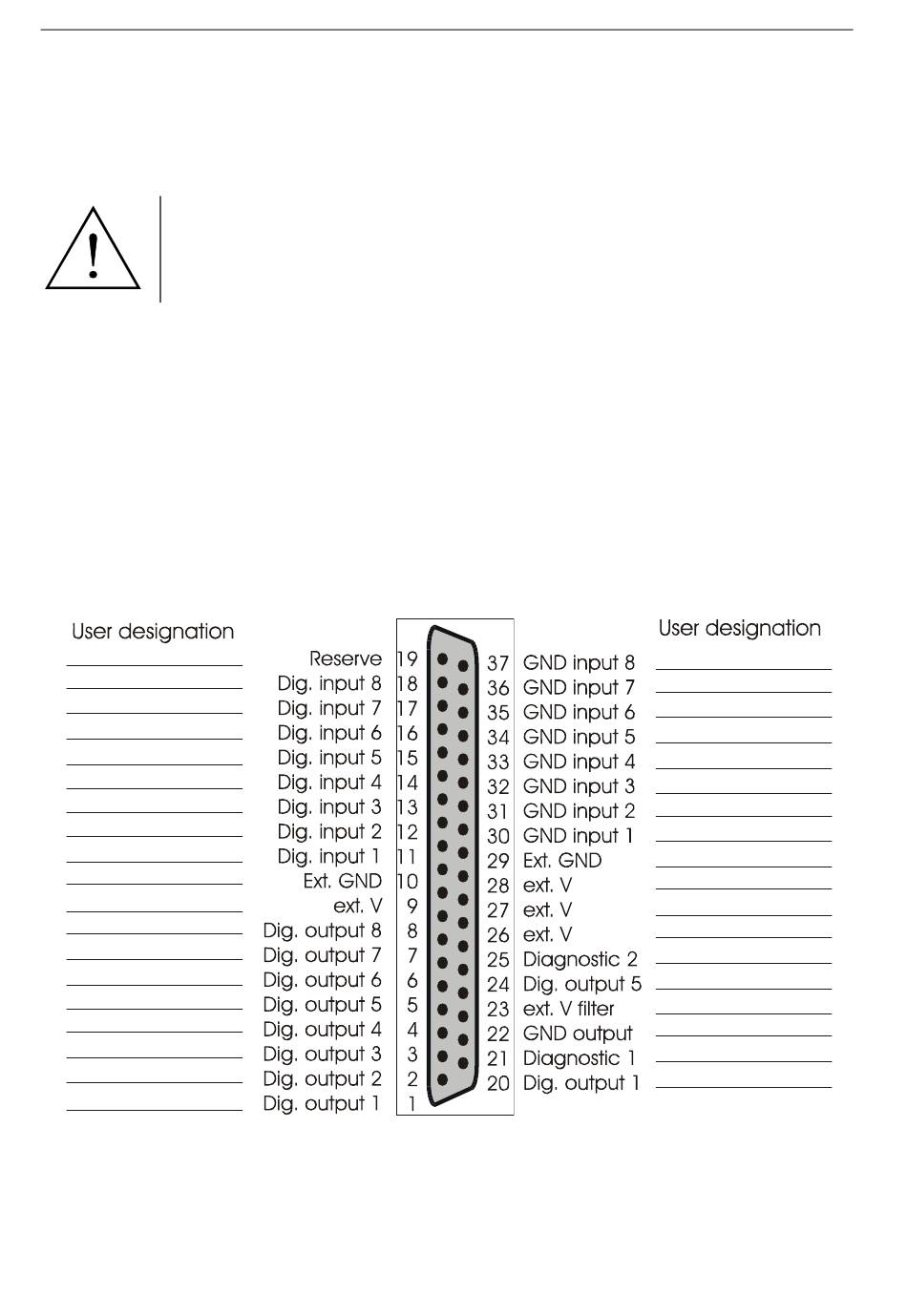

Fig. 6-1: Pin assignment of the 37-pin SUB-D male connector

PA 1508
