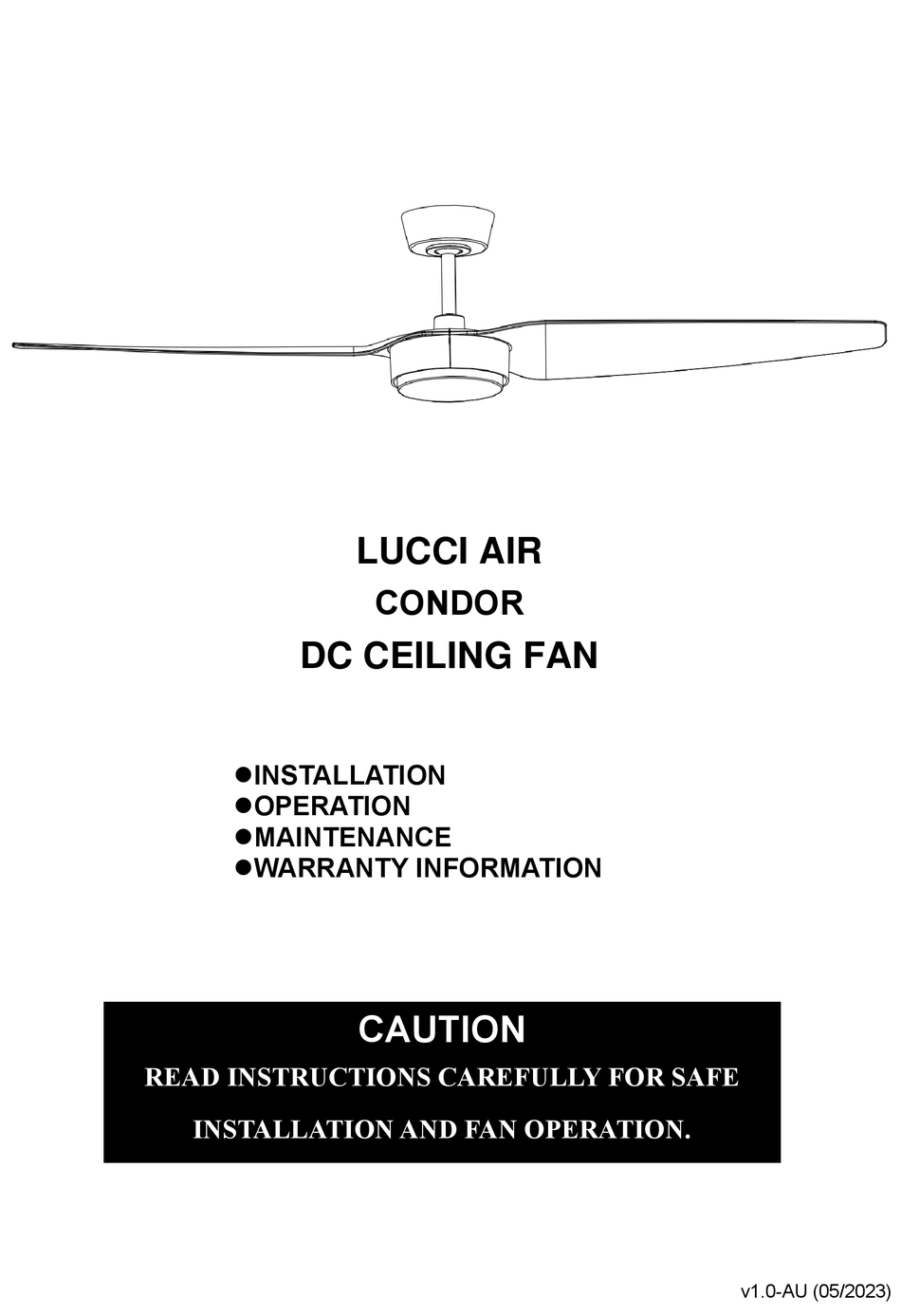

- Page 1 LUCCI AIR CONDOR DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (05/2023)
-
Page 2: Safety Precautions
CONDOR Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 CONDOR Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
CONDOR Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
CONDOR Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 CONDOR Installation Instructions INSTALLATION OF BLADE (Fig. 4) 1. Mount the fan blade onto the fan assembly using four blade screws with lockwashers (supplied in fan parts bag) (Fig.4). Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
- Page 7 CONDOR Installation Instructions 2. Loosen the set screws (11) on the down rod coupling housing (8). (Fig. 5.2) 3. Carefully feed the fan wires (1) up through the down rod (6). (fig. 5.3) 4. Assemble the down rod (6) into the down rod coupling housing (8), by inserting and line up the down rod coupling housing holes with the down rod holes and insert the hitch pin (9) and secure with the lock clip (10).
- Page 8 CONDOR Installation Instructions INSTALLATION OF BOTTOM COVER (Fig. 6) • Install the bottom cover to the fan assembly then secure it by turning clockwise. Fig. 6 HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation.
- Page 9 CONDOR Installation Instructions ELECTRICAL WIRING DIAGRAM THE FAN PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
- Page 10 CONDOR Installation Instructions Fig. 8 Carefully insert the receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig. 9). Fig. 9 9 | P a g e...
-
Page 11: Finishing The Installation
CONDOR Installation Instructions FINISHING THE INSTALLATION NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 12: Using Your Ceiling Fan
The fan must be operating to activate the reverse function. : Light On /Off Button Touch the button to turn on /off the light ( Remark: this CONDOR fan is without light ) : Fan Increase Speed Button Touch the button to increase the fan speed, the fan has total 6 speeds. - Page 13 CONDOR Installation Instructions The remote has memory function. If the fan is turned off by the isolating switch over 7 seconds, the next time to turn on the fan will be on last setting THE FAN RECEIVER & REMOTE PAIRING NOTE: This remote is supplied with default coding, can use the fan without further pairing, When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
- Page 14 CONDOR Installation Instructions RESET TO DEFAULT FOR THE REMOTE CONTROL: Press the button on the remote for 15 seconds within 30 seconds of switching the power ON to the receiver of the ceiling fan. When it exceeds 5 seconds, the LED white indication light ring on the remote edge will flash for twice with full brightness for pairing, keep press the button until exceeds 15 seconds, the LED white indication light ring on the remote edge will flash again, receiver will return to the default factory setting.
-
Page 15: Care And Cleaning
The motor has a permanently lubricated ball bearing so there is no need to oil. • This remote contains a rechargeable Li-ion battery that is non-replaceable. TECHNICAL INFORMATION 54” CONDOR DC fan Fan Models SKU# 216153 / SKU#216154/ SKU#216155 Rated Voltage... - Page 16 CONDOR Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 17 CONDOR Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..…...
