Page 1: Ceiling Fan

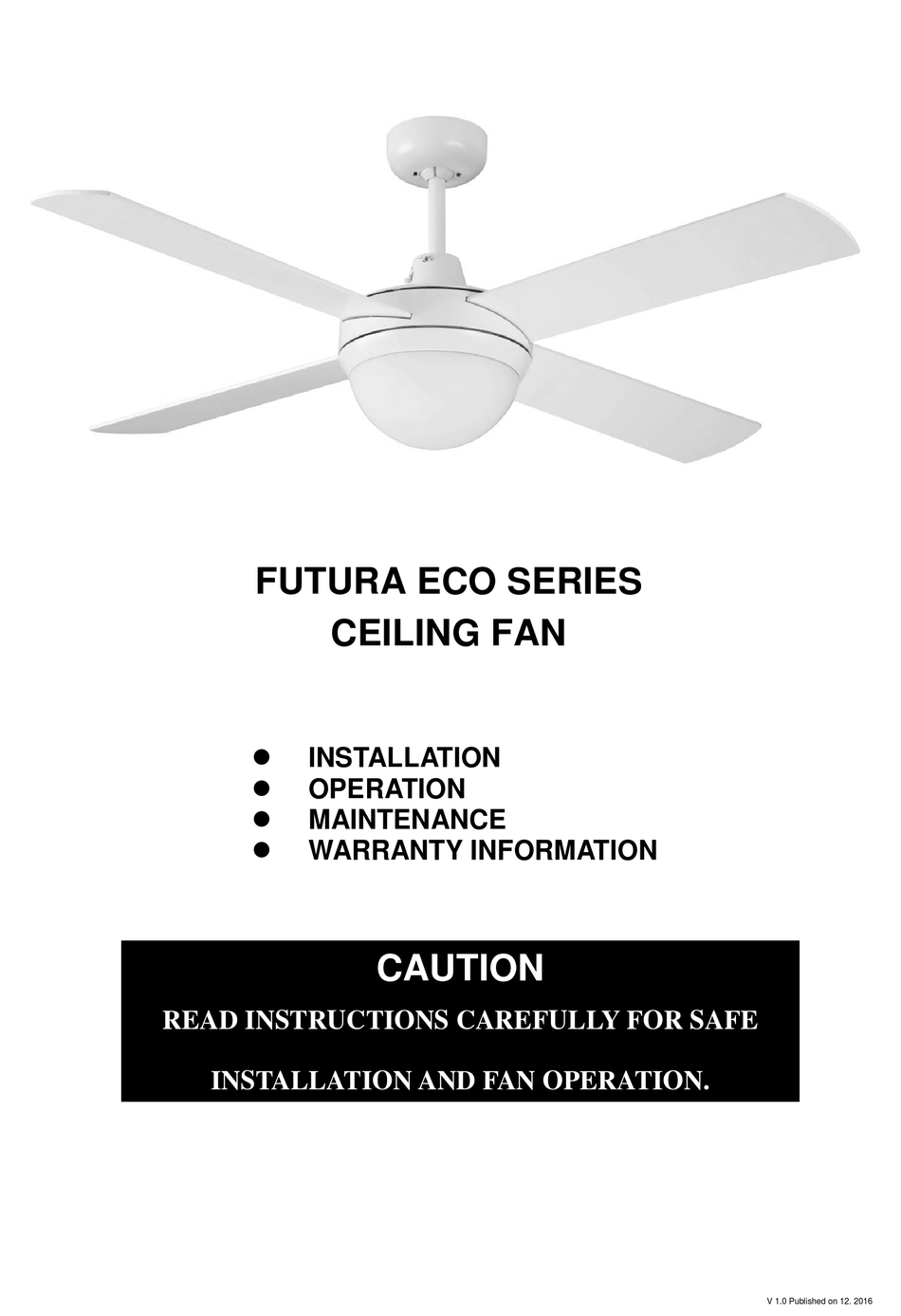

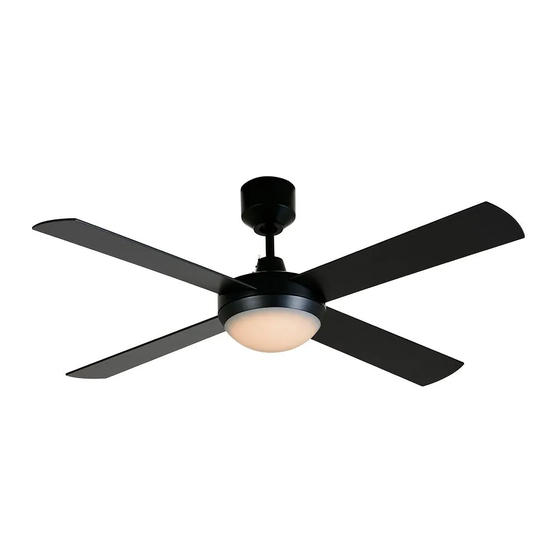

FUTURA ECO SERIES CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V 1.0 Published on 12. 2016... -
Page 2: Safety Precautions
Futura ECO Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference SAFETY PRECAUTIONS In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. - Page 3 Futura ECO Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Before Installation
Futura ECO Installation Instructions BEFORE INSTALLATION Unpack your ceiling fan carefully. Remove all parts and hardware. Examine all parts, you should have the following: Fig. 1 Mounting bracket x 1 Pre-assembled fan motor, down rod and canopy cover x 1 Glass shade x 1 Blades x 4 Screw for mounting bracket x 2... -
Page 5: Installing The Mounting Bracket
Futura ECO Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. • Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided. -
Page 6: Blade Installation
Futura ECO Installation Instructions BLADE INSTALLATION NOTE: The hole in the foam packaging is designed to assist in holding the pre-assembled fan into position. Insert the canopy cover end into the hole of the foam packaging to sit the motor facing up during assembly. -
Page 7: Hanging The Fan
Futura ECO Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. - Page 8 Futura ECO Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold seperately) 1/ Remote without plugs Fig. 9 2/ Remote with plugs Fig. 10 8 | P a g e...
-
Page 9: Completing The Installation
Futura ECO Installation Instructions COMPLETING THE INSTALLATION After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring by the quick connector plug. Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step. -
Page 10: Using Your Ceiling Fan
Futura ECO Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 11: After Installation
Futura ECO Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it will cause excessive vibration. Movement of a few centimeters is normal and does not suggest any problem. - Page 12 Futura ECO Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
- Page 13 Futura ECO Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
