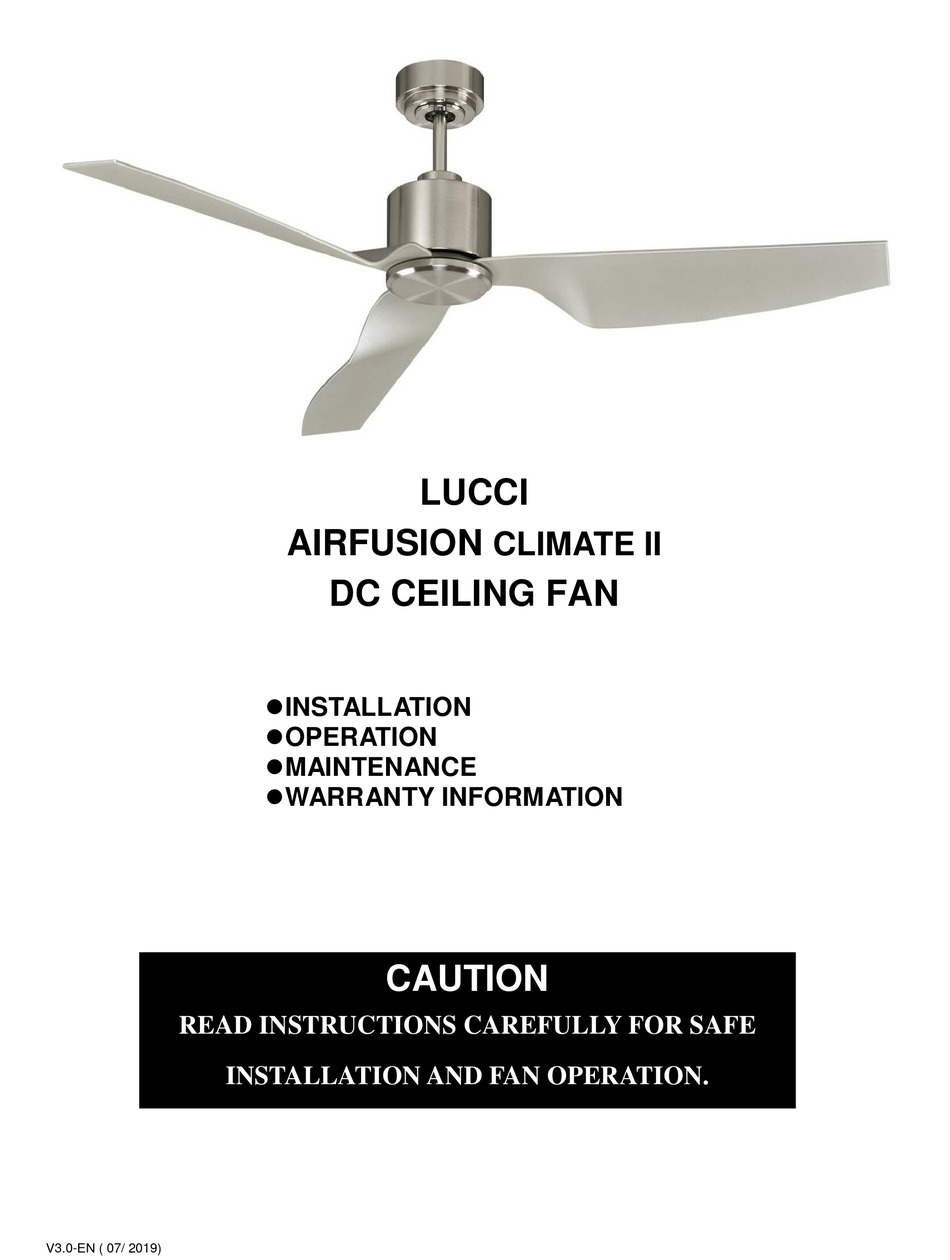

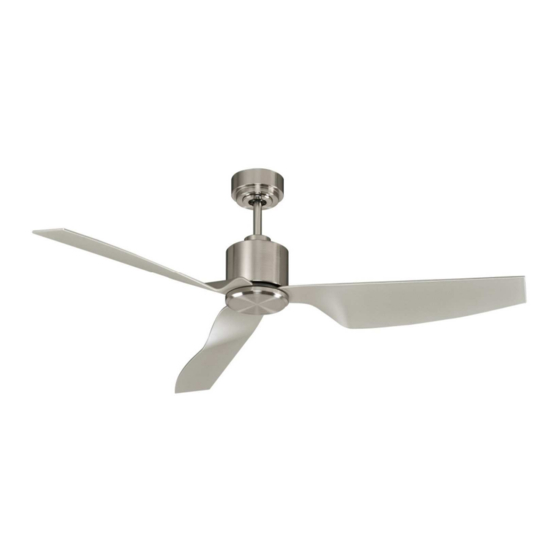

- Page 1 LUCCI AIRFUSION CLIMATE II DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V3.0-EN ( 07/ 2019)
-
Page 2: Safety Precautions
Airfusion Climate Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. Energy saving - The DC motor is the latest technology in fan design. - Page 3 Airfusion Climate Installation Instructions the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Climate Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Airfusion Climate Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided. -
Page 6: Blade Installation
Airfusion Climate Installation Instructions INSTALLING THE FAN BLADE INSTALLATION • Insert the blade screws (4) through the blade bracket (3) and place on the underside of blade (2). (Fig. 5) • Place the blade gasket (5) on the topside of the blade. (Fig. 5) •... -
Page 7: Finishing The Installation
Airfusion Climate Installation Instructions PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. -
Page 8: Using Your Ceiling Fan
Airfusion Climate Installation Instructions USING YOUR CEILING FAN Pairing Transmitter and Receiver – when 2 or more DC ceiling fans are installed in one location NOTE: The pairing of Transmitter and Receiver is not required if only one ceiling fan is installed. When more than two ceiling fans are installed near each other, please refer to the instruction below. - Page 9 Airfusion Climate Installation Instructions Transmitter/Receiver pairing for ceiling fan 2: • Turn off the mains supply to the receivers of both ceiling fans 1 and 2. • Slide the cover of the battery compartment of the transmitter to access the DIP switches. This will be transmitter 2.
- Page 10 Airfusion Climate Installation Instructions Remote Control Buttons ○ 1 - FAN SPEED CONTROL BUTTON: Fig. 11 ○ There are 6 available speeds. button is for the ○ lowest speed, and VI button is for the highest speed. NOTE: when you turn on the fan for the first time or switch the main power to the controller, you need to start ○...
- Page 11 Airfusion Climate Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC ceiling fan remote and receiver.
- Page 12 Airfusion Climate Installation Instructions C. Press the buttons on the remote to run the fan. In general, performing point A, B, and C should repair the remote and receiver, and will allow full control of the fan. If not, please do the next step. D.
-
Page 13: After Installation
Airfusion Climate Installation Instructions AFTER INSTALLATION NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 14: Technical Information
Airfusion Climate Installation Instructions If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour Poisons Information Centre on 13 11 26 for fast, expert advice. Battery Leaks: Battery contains chemicals and should be treated as any chemical would. - Page 15 Airfusion Climate Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 16 Airfusion Climate Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………………………………. DATE OF PURCHASE………………………………………………………………………………….…...
