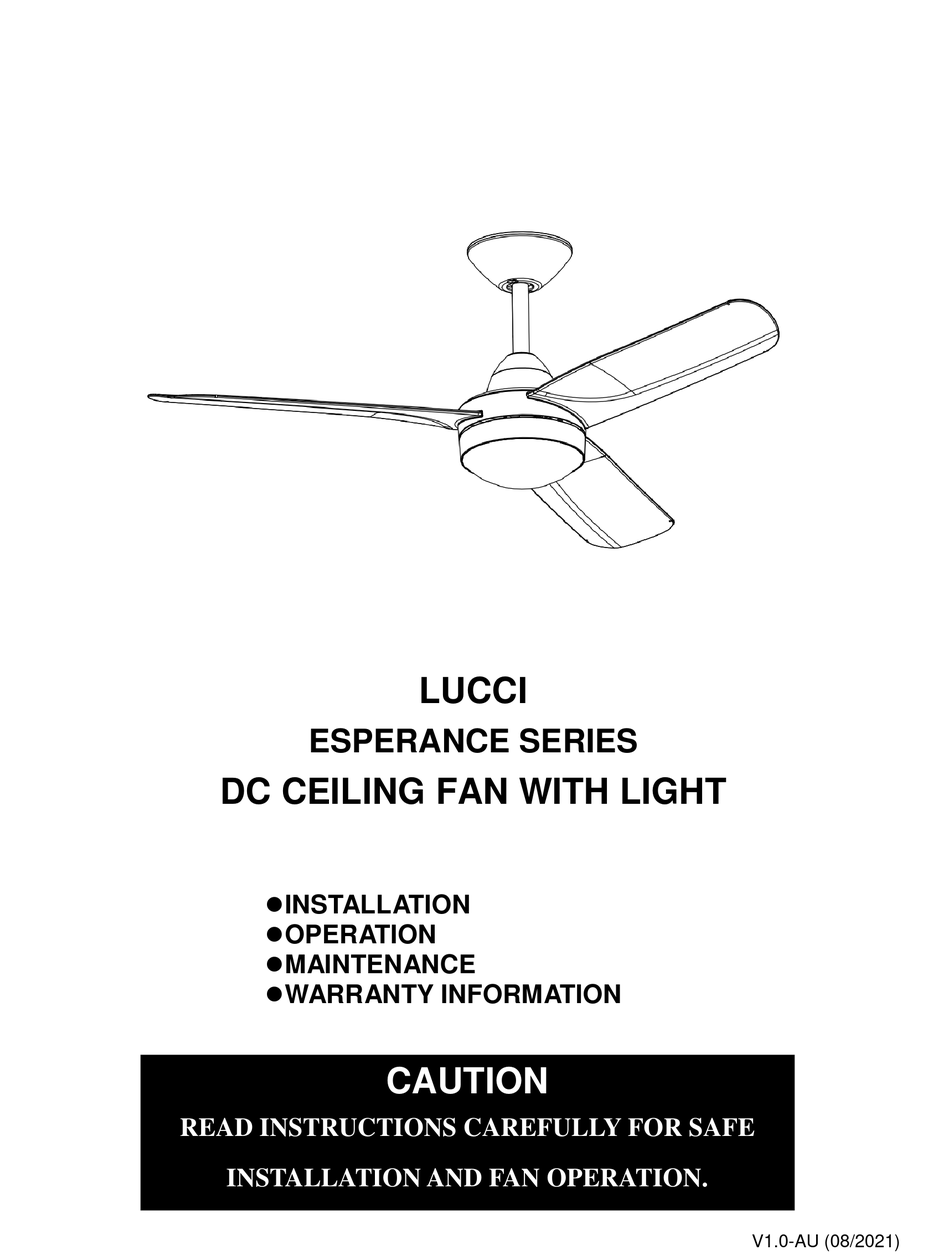

- Page 1 LUCCI ESPERANCE SERIES DC CEILING FAN WITH LIGHT INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (08/2021)
-
Page 2: Safety Precautions
Airfusion Esperance Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy-saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient while still maintaining high volume air-movement and silent operation. - Page 3 Airfusion Esperance Installation Instructions with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Esperance Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure no components are missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
Airfusion Esperance Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wirecutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 Airfusion Esperance Installation Instructions INSTALLATION OF BLADE (Fig.4) 1. Unscrew the three screws from the cover of the fan blade and lift up blade cover; (Fig.4.1) 2. Install the fan blades onto the motor assembly; (Fig.4.2) 3. Install the cover back to the motor assembly by tightening the 3 screws. (Fig.4.3) Fig.
- Page 7 Airfusion Esperance Installation Instructions Fig. 4.3 6 | P a g e...
- Page 8 Airfusion Esperance Installation Instructions HANGING OF THE FAN (Fig.5) 1. Place the hanger onto the mounting bracket. Ensure the key slot of the hanger ball is positioned on the key pin of the mounting bracket to prevent the fan from rotating when in operation; (Fig.5.1) 2.
- Page 9 Airfusion Esperance Installation Instructions WIRING DIAGRAM (FIG. 6) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN.
-
Page 10: Using Your Ceiling Fan
Airfusion Esperance Installation Instructions USING YOUR CEILING FAN Install the rotatory fan switch on the wall plate and connect the wiring according to the below. (NOTE: Only the fan rotatory switch is included as an accessory. Wall plate and light switch is not included. -
Page 11: Reverse Function
Airfusion Esperance Installation Instructions REVERSE FUNCTION Your ceiling fan can operate in either summer or winter mode. The reverse switch can be found once the cover of the down rod is lift. SUMMER Mode: The reverse switch shall be in the SUMMER position to make the fan rotate in an anticlockwise direction. - Page 12 Airfusion Esperance Installation Instructions COLOUR TEMPERATURE OF THE LED LIGHT 1. Remove the lamp shade from the luminaire. 2. Adjust the CCT switch to your desire colour temperature (3000K – 4000K – 6000K). NOTE: Do not attempt to remove the plastic protective cover of the LED module during any circumstances.
- Page 13 Airfusion Esperance Installation Instructions CHANGING AN EXTENSION ROD NOTE: When using extension rods, the lower edge of the fan blades must be more than 2.1m above floor level. Note: Extension Rod – Supplied Separately REPLACEMENT OF AN EXTENSION ROD: 1. Uninstall the ball joint, canopy, canopy bottom cover & the down rod joint cover from the fan assembly; (Figure 8.1, 8.2, 8.3) 2.
- Page 14 Airfusion Esperance Installation Instructions Fig. 8.2 Fig. 8.3 13 | P a g e...
- Page 15 Airfusion Esperance Installation Instructions Note: Extension Rod – Supplied Separately Extension cable provided with extension rod. Fig. 8.4 14 | P a g e...
-
Page 16: After Installation
Airfusion Esperance Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation as they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling, it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 17 Airfusion Esperance Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service is required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9 am & 5 pm (EST) Monday to Friday.
- Page 18 Airfusion Esperance Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………………………………. DATE OF PURCHASE………………………………………………………………………………….…...
