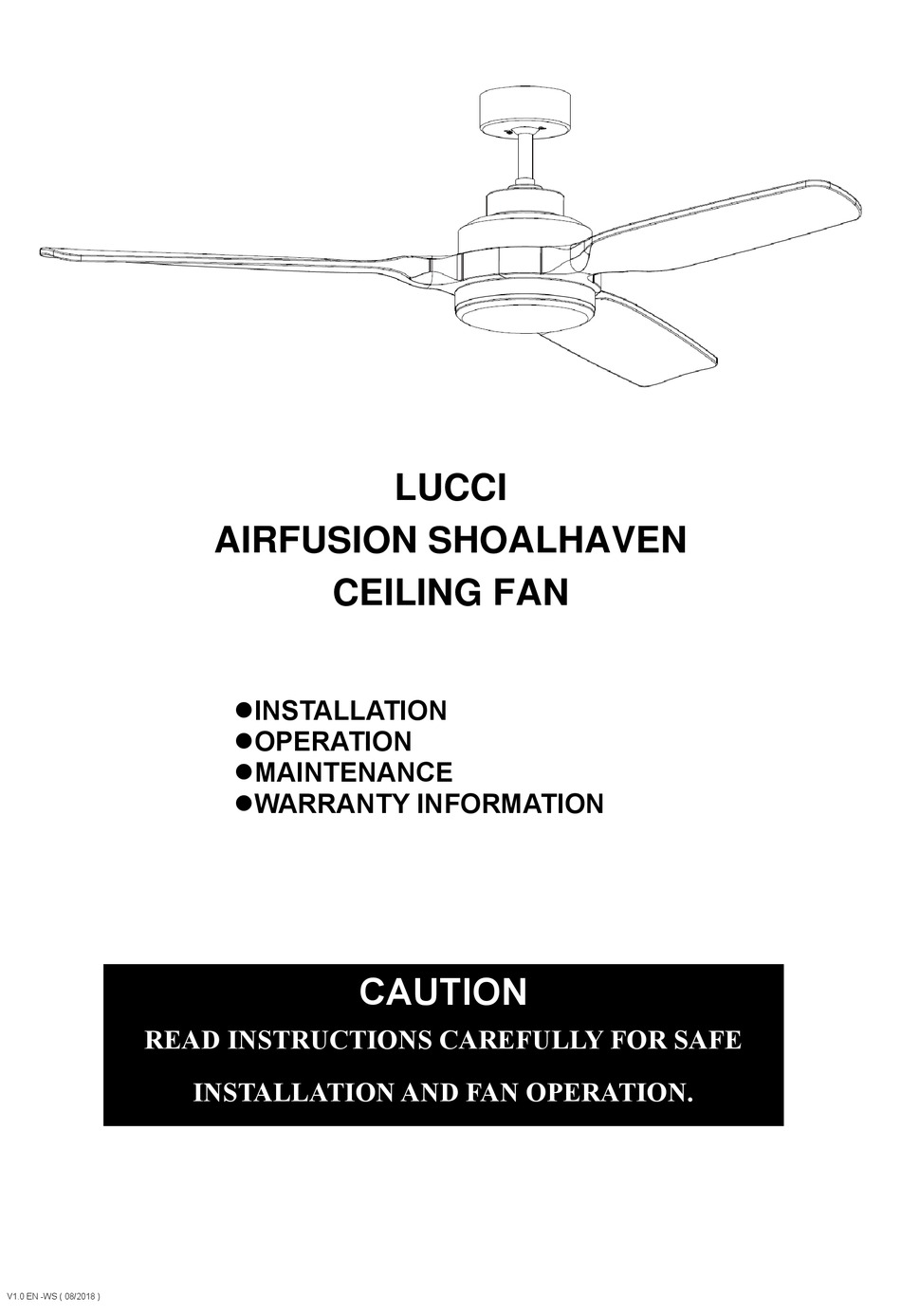

- Page 1 LUCCI AIRFUSION SHOALHAVEN CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 EN -WS ( 08/2018 )
-
Page 2: Safety Precautions
Shoalhaven Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Shoalhaven Fan Installation Instructions requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
-
Page 4: Parts List
Shoalhaven Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Shoalhaven Fan Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided. -
Page 6: Blade Attachment
Shoalhaven Fan Installation Instructions INSTALLING THE FAN BLADE ATTACHMENT • Insert the blade screws through the blade bracket and place on the underside of the blade. (Fig. 5) • Align the screws with the holes and secure the blade onto bottom of the fan motor. Ensure the screws are tightened equally and evenly to reduce the chance of warping or unbalancing. -
Page 7: Electrical Wiring Diagram
Shoalhaven Fan Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan. - Page 8 Shoalhaven Fan Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 9), for (Fig.10 and Fig.11) 1/ Remote without quick connectors (manual wiring) Fig.
-
Page 9: Finishing The Installation
Shoalhaven Fan Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 10: Reversing Switch
Shoalhaven Fan Installation Instructions REVERSING SWITCH Your ceiling fan can operate in either summer or winter mode. SUMMER Mode: The reverse switch shall be in the SUMMER position to make the fan rotate in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. WINTER Mode: The reverse switch shall be in the WINTER position to make the fan rotate in a clockwise direction. -
Page 11: Care And Cleaning
Shoalhaven Fan Installation Instructions CARE AND CLEANING: NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. • Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. - Page 12 Shoalhaven Fan Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
- Page 13 Shoalhaven Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
