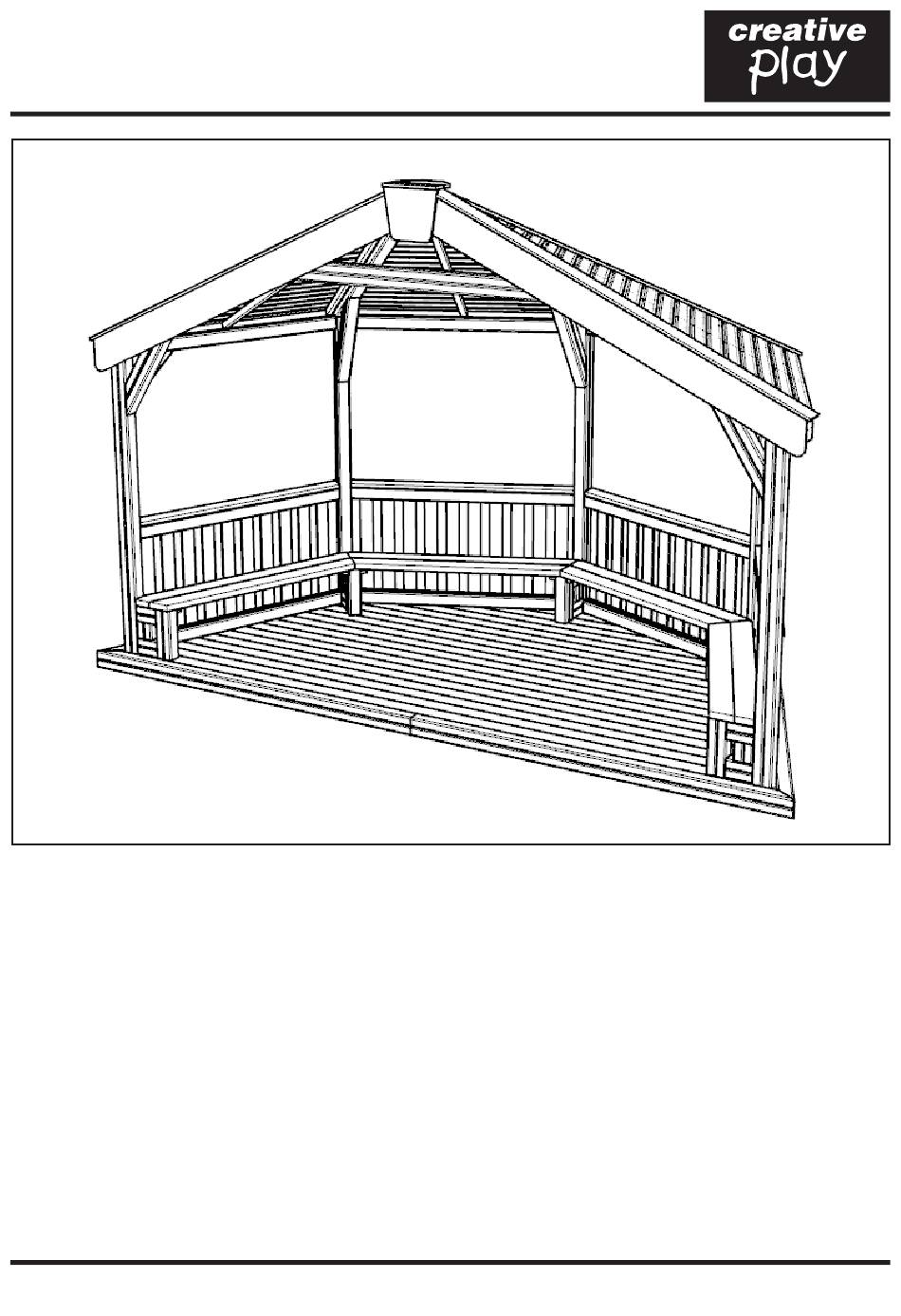

- Page 1 HS112 - OCTAVIA HALF (5M) Installation Instructions REF: HS112 pg 1 of 18 31.07.2019...
-
Page 2: Parts Required
SEAT SUPPORT ASSEMBLY x 3 SSA-I (INNER) SEAT SUPPORT ASSEMBLY x 2 SSA-E (END) SEATING & SIDES PARTS / ASSEMBLIES UPRIGHT MAIN TIMBER UMT - QTY x5 UPRIGHT ADDITIONAL UAT - QTY x7 UPRIGHT TIMBERS REF: HS112 pg 2 of 18 31.07.2019... - Page 3 FSA - c - QTYx2 (1 x cr / 1 x cl) FSA - d - QTYx1 FLOOR SUPPORTS FS-A - QTYx2 FS-B - QTYx2 FLOOR PARTS / ASSEMBLIES x282 97.M8X80CSK x480 97.D4.5X60 (DECK SCREW) 97.M8X120CSK 97.M8X180CSK REF: HS112 pg 3 of 18 31.07.2019...
- Page 4 QTY x 4 - RA - ROOF ASSEMBLIES ROOF MAIN SUPPORTS QTY x 5 ROOF SUPPORTS QTY x 4 - RS - a QTY x 1 - RS - b ROOF BRACES QTY x 5 REF: HS112 pg 4 of 18 31.07.2019...
-
Page 5: Foundation Details
FOUNDATION DETAILS NOTES: POST HOLES 400MM x 400MM REF: HS112 pg 5 of 18 31.07.2019... -
Page 6: Installation Instructions
FSA - cl FSA - ar FSA - cr ATTACH FSA - d TIMBER TO REINFORCE FSA TIMBERS SHOWN USING 4X M8X180MM WOOD SCREWS, ENSURE SCREWS ARE INSERTED FROM INSIDE FRAMEWORK FSA - d REF: HS112 pg 6 of 18 31.07.2019... - Page 7 INSTALLATION INSTRUCTIONS INSTALL THE UMT TIMBERS THE 90X90 TIMBER ON THE FSA ASSEMBLIES HELP POSITION THESE SCREW THE FAS ASSMBLIES TO THE UMT TIMBERS USING - 97.M8X120CSK - QUANTITY X 20 REF: HS112 pg 7 of 18 31.07.2019...
- Page 8 USING - 97.M8X180CSK - QUANTITY X 2 NOTES: TOP FACE OF TIMBER WILL BE FLUSH WITH THE TOP OF THE ‘INNER’ 90X90 TIMBER FSA - d INSTALL FA - a ASSEMBLIES USING - 97.M8X180CSK - QUANTITY X 16 REF: HS112 pg 8 of 18 31.07.2019...
- Page 9 USING 2 X M8X180MM PER TIMBER - SCREWING INTO THE FA ASSEMBLY INSTALL FLOOR SUPPORTS FS - a & b USING M8X180MM WOOD SCREWS FS - a FS - b FS - a FS - a FS - b FS - b REF: HS112 pg 9 of 18 31.07.2019...
- Page 10 USING 2 X M8X120MM & 2 X M8X180MM WOOD SCREWS NOTES: ENSURE SCREWS ARE AS SHOWN TO RIGHT, TAKE CARE NOT TO SPLIT UPRIGHT TIMBER 2X 120MM PER TIMBER 2X 180MM SCREWS PER END REF: HS112 pg 10 of 18 31.07.2019...
- Page 11 USING 120MM SCREWS INTO THE KING POST AND 180 SCREWS INTO THE UPRIGHT TIMBERS ATTACH THE RA-L / RA-R ASSEMBLIES TO THE RM TIMBERS USING - 97.M8X80CSK - QUANTITY X 8 (INTO EACH RM TIMBER EITHER SIDE) RA-L RA-R REF: HS112 pg 11 of 18 31.07.2019...
- Page 12 USING - 97.M8X80CSK - QUANTITY X 12 MIDDLE SECTION NOTES: REPEAT STEPS 12 & 13 UNTIL ALL RA PARTS HAVE BEEN ATTACHED ATTACH RS - b TIMBER TO FRONT RM TIMBERS SHOWN USING 4 M8X180MM WOOD SCREWS REF: HS112 pg 12 of 18 31.07.2019...
- Page 13 USING 16 X M8X80MM, SCREW TO RM TIMBERS RT3 - a NOTES: ENSURE RT5 TIMBER IS PLACED OVER RT4 TIMBER AND SCREWED TOGETHER AS SHOWN TOP OF RT35 TRIM SHOULD BE FLUSH WITH TOP OF TR3 TRIM SLATS ALREADY INSTALLED REF: HS112 pg 13 of 18 31.07.2019...
- Page 14 INSTALLATION INSTRUCTIONS ATTACH THE RT1 TRIM PIECE USING 4 X M8X80MM WOOD SCREWS FOR EACH TIMBER ATTACH ROOF BRACES - RB USING - 97.M8X120CSK - QUANTITY X 4 PER TIMBER REF: HS112 pg 14 of 18 31.07.2019...
- Page 15 BETWEEN TIMBERS ENSURE EACH PIECE IS SCREWED TO ALL SUPPORTS (DOTTED LINE) NOTES: USE 2 X DECK SCREWS FOR WHERE DECK IS SCREWED INTO FLOOR SUPPORTS - GENERALLY 20 X DECK SCREWS PER SLAT / TIMBER REF: HS112 pg 15 of 18 31.07.2019...
- Page 16 USE 2 X M8X120MM WOOD SCREWS TO SCREW INTO THE UPRIGHT TIMBER - FIG 3 FURTHER SECURE USING 2 X M8X120MM WOOD SCREWS, POSITION THESE SCREWS ON THE ‘INSIDE’ AND SCREW INTO THE GROOVE - FIG 4 SSA - E REF: HS112 pg 16 of 18 31.07.2019...
- Page 17 SS-Ia SS-Ia SS-Eb SS-Ea SS-Eb SS-Ea FURTHER SUPPORT THE ROOF USING RB-T TIMBERS USING - 97.M8X80CSK - QUANTITY X 4 PER ‘WEDGE’ NOTES: RB-T TIMBER BLOCKS SECURES / SUPPORT THE ADJOINING ROOF ASSEMBLIES REF: HS112 pg 17 of 18 31.07.2019...
-
Page 18: Installation Complete
INSTALLATION INSTRUCTIONS INSTALLATION COMPLETE PLEASE CHECK ALL SCREWS COUNTERSUNK / NEAT SAND ANY TIMBERS AS REQUIRED REF: HS112 pg 18 of 18 31.07.2019...
