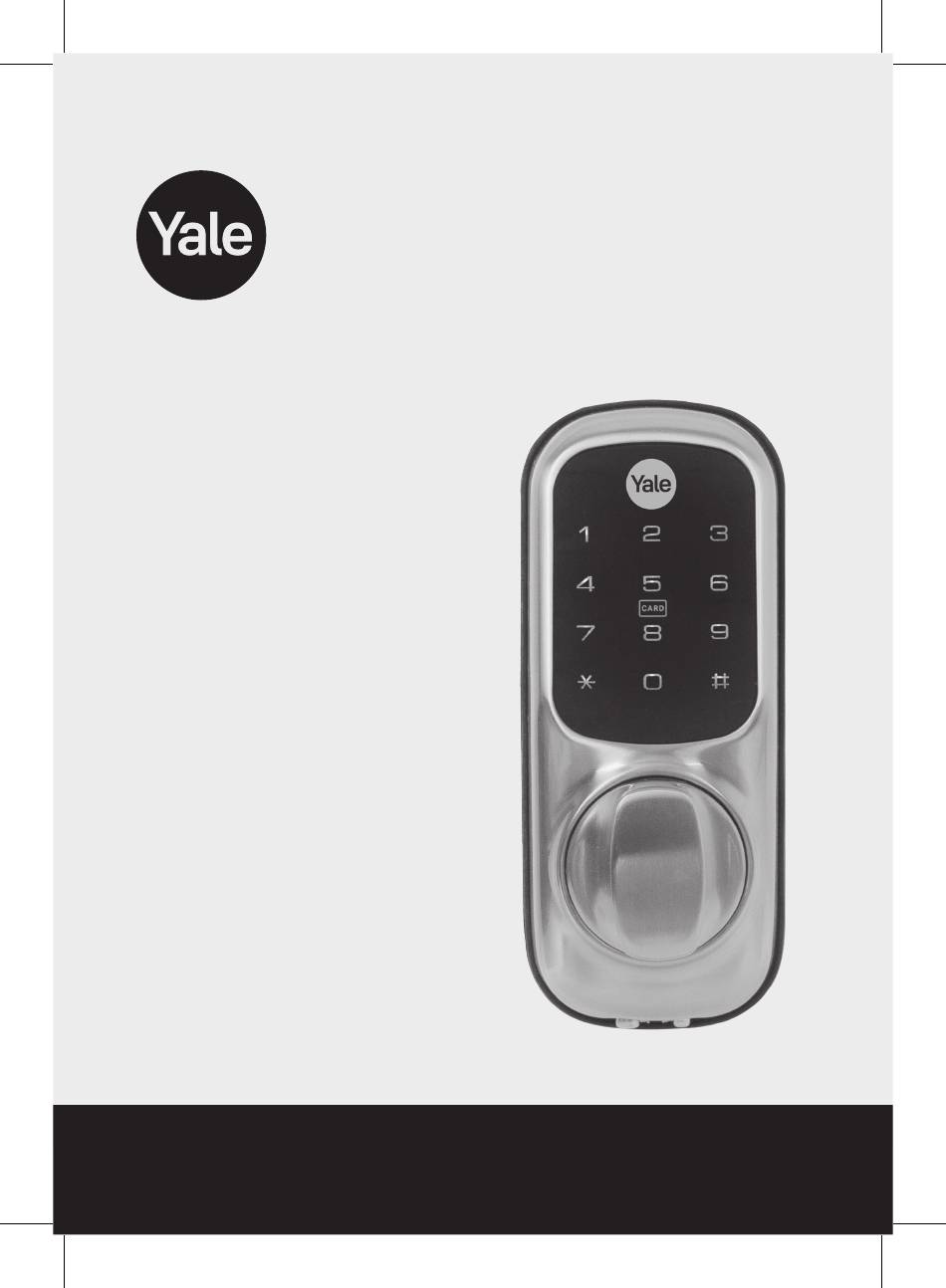

- Page 1 Smart Latch 2 Manual Please read the intructions before fitting and using the Yale Smart Latch 2. The functions and design of this product can be changed without prior notice for performance and quality improvements. The smarter way to protect your home.
-
Page 2: Table Of Contents
Opening the Lock with a PIN Code/ Key Card or Tag Set/Change Master Code Connecting with Yale Home App. - Insert a Module - Download the Yale Home App. - Removing the Module Set a User Code Delete a User Code Set/Delete One Day Code... -
Page 3: Introduction
The new Smart Lock uses the latest technology to make your life easier. This user manual enables you to operate the product safely and to its full potential. Please ensure you read it completely before using the Yale Smart Latch 2. Safety Precautions Please read this carefully •... -
Page 4: Product Features
Access via Yale Home App Module is connected You can use a mix of up to 20 PIN codes, Key Tags when Yale Home App Module is not connected. Smart Latch 2 Description Features Smart Latch 2... -
Page 5: Getting To Know Your Lock
Getting to Know Your Lock Front (Front body installed on the outside of the door) Keypad (10-key) Button Thumbturn Reset Button Button Emergency 9V power supply terminal Low Battery Indicator Back (Back body installed on the inside of the door) Battery Pack Cover Button 1.5V AA Alkaline Batteries... -
Page 6: Opening The Lock With A Pin Code
Opening the Lock with a Key Tag Key Tag Description Step Icon Expected Feedback If you connected the Yale Home App module, follow the Yale Home Present a valid Key 3 tone ascending beep App Guide to add key tags. Or on Tag to the lock... -
Page 7: Set/Change Master Code
The master code is the main password to the lock. As well as allowing entry through the door, it is also used to configure the lock including adding and removing users when the Yale Home App module is not connected... -
Page 8: Connecting With Yale Home App
Connecting with the Yale Home App The Smart Latch 2 Smart Deadlatch comes with the Yale Home App module to allow users to connect your lock with the Yale Home App to achieve a smart locking solution. Once you insert the Yale Home App module and batteries, the lock will be ready to pair with the Yale Home App. -
Page 9: Download The Yale Home App
Download the Yale Home App: Step 1: Download the Yale Home App from the Google Play Store or Apple App Store. Step 2: Scan the below QR code for more information on how to use the Yale Home App App and product information. -
Page 10: Set A User Code
Set a User Code To set a user code, please follow Yale Home App Guide if you connected module. Or refer to the below section if you decide not connect with the Yale Home App module. The lock can hold up to 20 unique user codes, each one has a slot in the locks memory from 1 to 20. If a new code is written to a slot that already holds a code it will overwrite it. -
Page 11: Delete A User Code
Delete a User Code To delete a user code, please follow Yale Home App Guide if you connected the Yale Home App module. Or refer to below section if you decide not connect with the Yale Home App module. To discontinue a user’s access their code will need to be deleted. Before removing a user code please refer to the User Credential Log at the back of this guide to determine the slot number of the code desired for deletion. - Page 12 Please refer to ‘Access Schedules’ section from Yale Home App Guide if you connected the Yale Home App module. Or refer to below section to set up a One day Code if you decide not connect with the Yale Home App module.
-
Page 13: Adding A Key Tag
Adding a Key Tag Key Tag The lock can hold up to 20 Key Tags, each one has a slot in the locks memory from 1 to 20. If you try to add a Tag to a slot that already holds one it will sound an error beep. It will also sound an error beep if you try to add a Tag that has already been added. -
Page 14: Delete A Key Tag
Delete a Key Tag Key Tag To delete a keytag, please follow Yale Home App Guide if you connected the Yale Home App module. Or refer to below section if you decide not connect with the Yale Home App module. -
Page 15: Change Auto-Lock Time
The relock time is the amount of time it takes for the lock to relock after it has been unlocked with a correct credential (PIN, KeyTag). The default is 7 seconds. Note: If the Yale Home App is used as credential to unlock the door, then the re-lock time will be always 7 seconds. Step... -
Page 16: Auto-Lock On/Off
Auto-lock On/Off Auto-lock On/Off can only be changed via the Yale Home App once connected to the App. The lock can be changed between two modes. With auto-lock mode ON the lock will automatically re-lock after the configured time. With auto-lock mode OFF the lock will not re-lock until you touch the Keypad with the palm of your hand. -
Page 17: Volume Settings
The volume can be adjusted from both the Yale Home App and keypad. The setting is automatically synchronised if the setting is changed on either App or keypad. Please refer to Yale Home App Guide to adjust volume from App and refer to below section for adjusting volume from keypad. -
Page 18: Intrusion Alarm
Security Features Intrusion Alarm Damage Alarm: If the lock is attacked by attempting to remove the lock from the door on the outside, an 80dB alarm will sound. -
Page 19: Incorrect Pin Lockout
Security Features Incorrect PIN Lockout For security, if the wrong PIN is entered 5 consecutive times the lock will lockout for 3 minutes. This is indicated by the numbers [3] on the keypad flashing. To Release Lockout Present valid Key Tag or unlock via the App. -
Page 20: Emergency Power
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE WASTE BATTERIES REGULATIONS. You will also receive the low battery warning from Yale Home App and email once you connected to Yale Home App. The battery life varies according to ambient temperature, humidity, frequency of use and the quality of the... -
Page 21: Resetting The Lock
Resetting the Lock In the event of losing the master code to the lock, the lock will need to be reset back to factory default settings. This will result in the master code being set to the factory default which is ‘123456’. Step Icon Description... -
Page 22: Specifications
Specifications Remarks Parts Specifications Operating Temperature 64mm(W)x 153mm(H) x 51mm(D) Front (Front Body) Zinc die-casting -15˚C - 55˚C (5-131˚ F) 68mm(W)x 120mm(H) x 21mm(D) Operating Temperature Back (Main Body) PC/ABS -15˚C - 55˚C (5-131˚ F) Zinc die-casting Thumbturn Lasts appoximately 1 year 4EA 1.5V AA alkaline batteries Battery (when lock is used 10... -
Page 23: User Credential Log (Pin/Key Tag)
User Credential Log (Pin/Key Tag) PIN Code Slot Number Name (Optional) - Page 24 ® Lose Your Keys. For Good. ASSA ABLOY New Zealand Limited 6 Armstrong Road, Albany Auckland 0632, New Zealand yalehome.com/nz nzsales@assaabloy.com Part of ASSA ABLOY...
