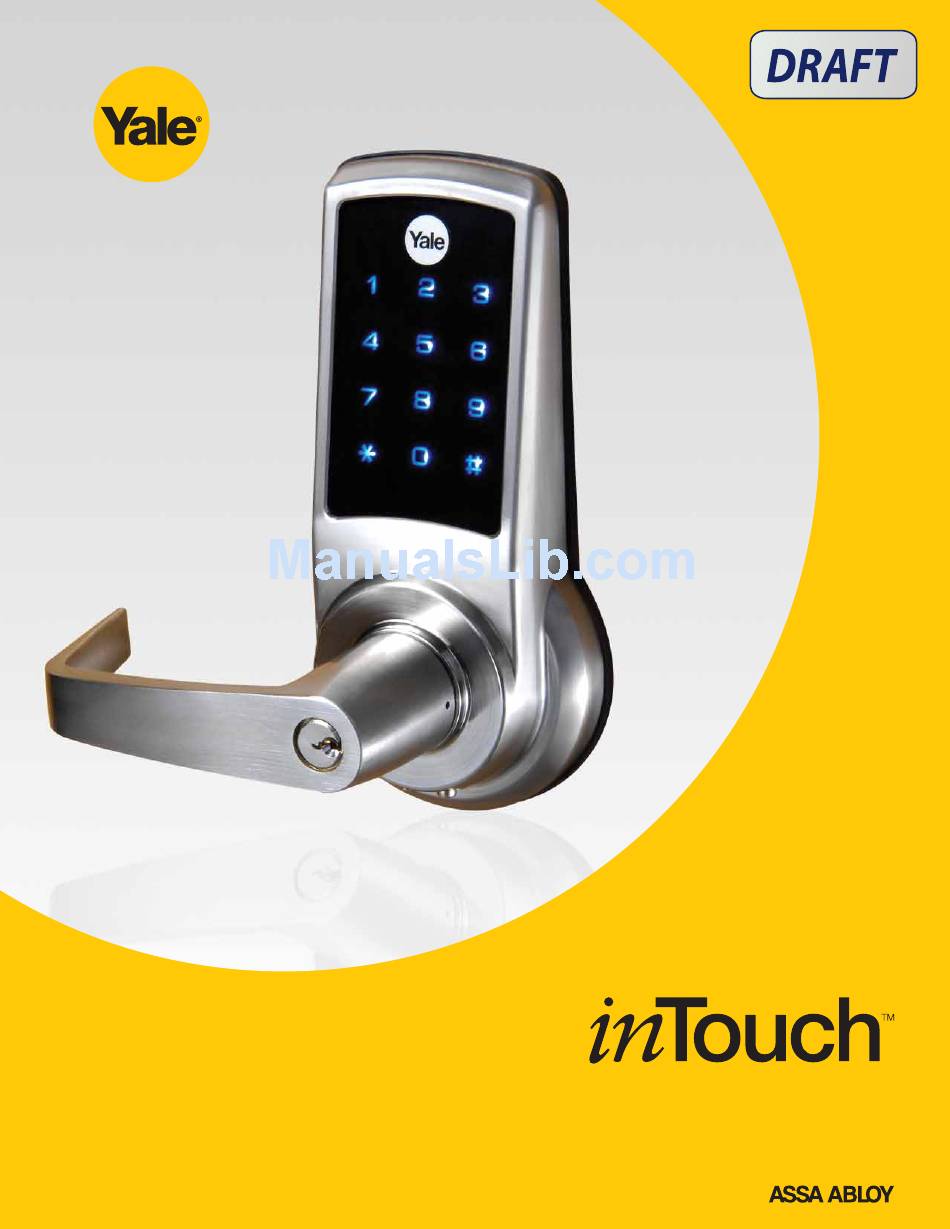

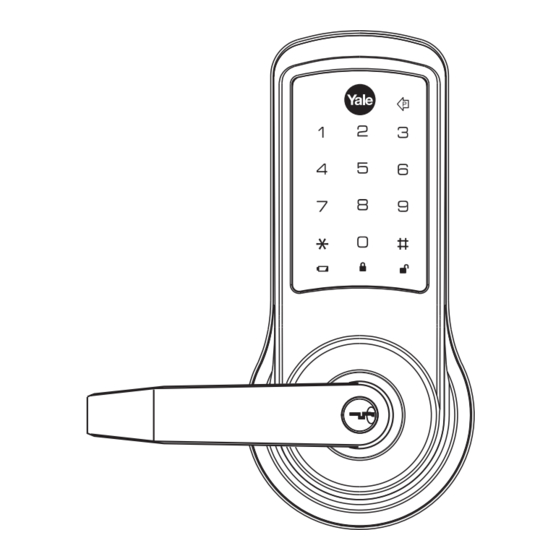

- Page 1 Stand-alone Touchpad Access Lock An ASSA ABLOY Group brand...
-
Page 2: Table Of Contents
Latchbolts ...........7 restroom doors, etc. Anywhere that requires simple controlled access without the use of mechanical keys is an ideal place for inTouch ! Strikes ..........8 Voice Guided Programming....9 inTouch is engineered for quick & easy installation and fits into a standard Options and Accessories ....9... -
Page 3: Features
Lock Out Mode - When illuminated, all users or escutcheon provides quality and groups of users will not have access. Available in durability. Advanced programming mode. Key Override - Accepts all Yale ® fixed core component cylinders (with modified tailpieces). Also available to accept small format interchangeable core (SFIC). -
Page 4: Operation And Dimensions
stand-alone touchpad access lock operation and dimensions unlock with a touch 1. Touch lock with palm of hand. 3. Palm or * key to enter. 2. Enter password. 4. Turn Handle. dimensions 2-13/16" 1-7/16" 9/16" 2-13/16" (71.4) (36.5) (14.3) (71.4) 7-5/8"... -
Page 5: Lever Design
stand-alone touchpad access lock lever design Augusta AU Lever: Cast Zinc functions E5360LN E5361LN Without Cylinder Override With Cylinder Override • For doors that do not require mechanical key override. • For doors that require optional mechanical key override. • Latchbolt retracted by lever outside with valid pincode, or by •... -
Page 6: Cylinders
Using the incorrect length tailpiece will damage the lock. See dimension "A" for the proper length from the shoulder of the cylinder to the end of the mounted tailpiece. Door Thickness Dimension "A"... -
Page 7: Latchbolts
LA Keyway. 3802 Available 0-bitted or keyed random. The 2802 and 3802 cylinders require an adapter sleeve (P/N 14-5407-9101-999) and a cylinder sleeve (P/N 14-5305-9078-999) to fit the inTouch™ lockset. levers accepting other manufacturers' interchangeable core cylinders Description Prefix Ordering Example... -
Page 8: Strikes
Yale ® inTouch™ Locksets are available with a variety of strike options. All strikes are located on the same vertical and horizontal center lines as the latchbolt. Some strikes are available in a variety of lip lengths to accommodate varying thickness of doors and frames. To determine the proper length of the lip, measure from the center line of the strike to the edge of the jamb and add 1/4"... -
Page 9: Voice Guided Programming
Easy (EZ) or Advanced (AD) Programming modes. Voice-guided prompts make updates, using the interactive touchpad, simple and effortless. EZ mode AD mode... -
Page 10: Ordering Information
From this outline select the model Number for the Yale ® inTouch™ you require. Design Function Latch Strike Cylinder Door Thickness Finish See Page 5 See Page 5 See Page 7 See Page 8... -
Page 11: Sample Specification
• Field reversible and adjustable for doors 1 3/8" (35mm) to 1 3/4" (44mm) thick. • UL Listed for use on fire doors up to 3-hour rating. • Capable of accepting Yale® 6-pin standard, small format interchangeable core, high-security and patented cylinders with master keying capabilities. - Page 12 These materials are protected under U.S. copyright laws. All contents current at time of publication. Yale Security, Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2009, Yale Security, Inc., an ASSA ABLOY Group company. All rights reserved.
