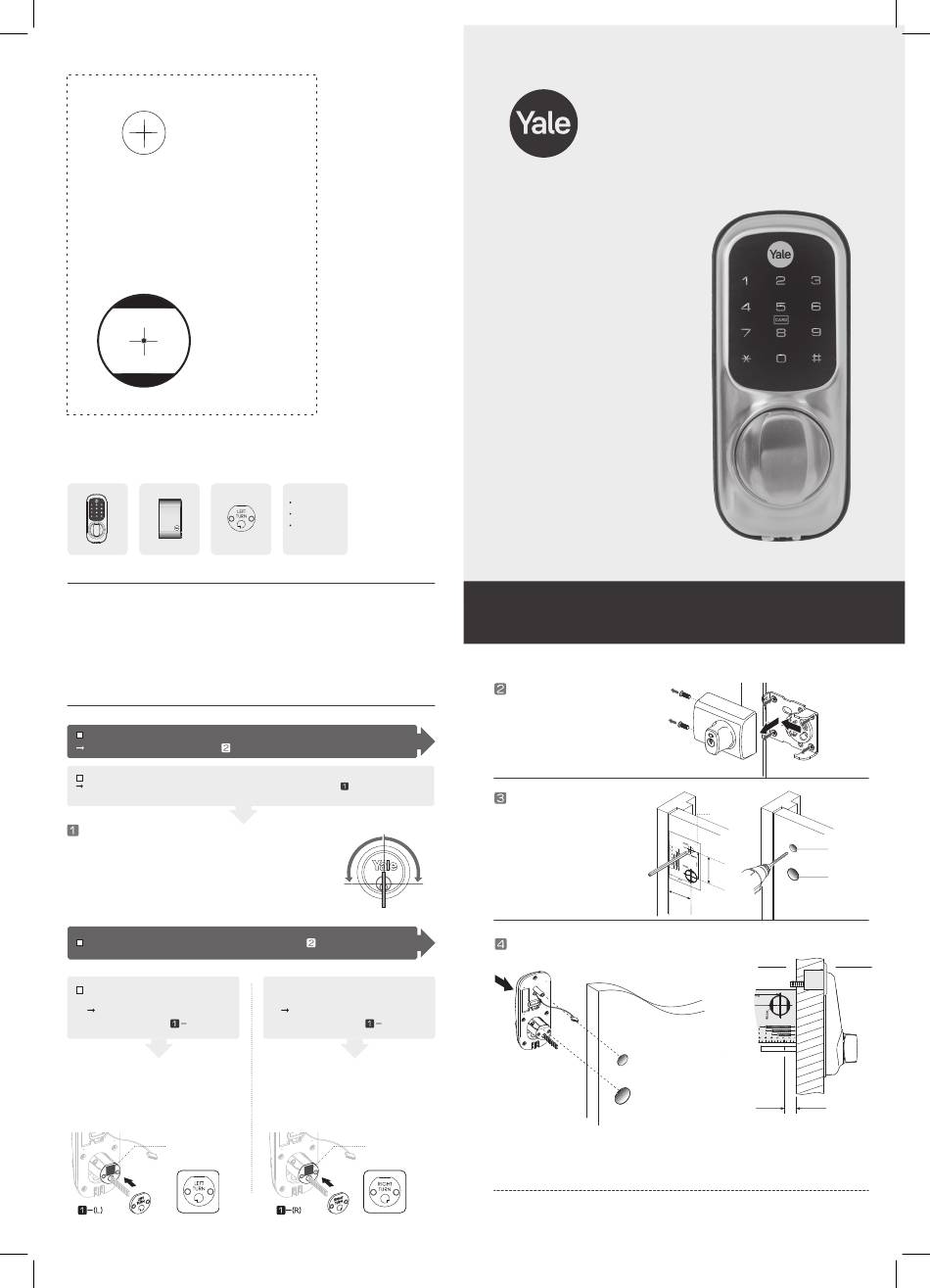

Yale Smart Latch 2 Installation Manual

20mm Hole
Contents Include
Fit the Yale Smart Latch 2 using hand Phillips screwdriver to avoid cross threading
fixing screws. If using a cordless, please ensure it is set to low speed & torque.
Front Body Battery Pack Handing Plate
For more info, visit: yalehome.com/nz
Part of ASSA ABLOY
Before getting started
Are you installing the Yale Smart Latch with a new Nightlatch?
Yes, I have bought the Yale Smart Latch with a new Nightlatch to install them onto my door.
Please start from installation step ON THE RIGHT PAGE
NO, I am going to keep using the existing Nightlatch on my door with the with the Yale Smart Latch.
There are many types of Nightlatches, so please start from installation step
check points for correct installation.
Check Point
Please use the key of your existing Nightlatch and check the below
Ⓐ
Keep your door open
Ⓑ
Insert the key in the outside cylinder key hole
Ⓒ
Turn the key 90° counter clockwise (to the left)
and check the latch fully retracts
Ⓓ
Turn the key 90°clockwise (to the right) and check the latch fully retracts
Can you open with your key in both directions? Please go to step
Can you open with your key only in the left
direction? Not in the right direction?
Your Nightlatch needs an additional plate
(L)
PLEASE GO TO STEP
Please attach the additional handing plate tightly onto
the cylinder fixing surface.
The plate must be aligned with the shape.
Make sure the 'LEFT TURN' is shown as the image
below if your latch is opened only to the LEFT
direction by the key.
Self adhesive pad
Screws
Batteries
Self adhesive
pad
ISL-1123
BELOW, and follow the
Ⓒ Ⓓ
90 90
0 0
Ⓑ
KEY
Can you open with your key only in the
right direction? Not in the left direction?
Your Nightlatch needs an additional plate
(R)
PLEASE GO TO STEP
Please attach the additional handing plate tightly onto
the cylinder fixing surface.
The plate must be aligned with the shape.
Make sure the 'RIGHT TURN' is shown as the image
below if your latch is opened only to the RIGHT
direction by the key.
Self adhesive pad
Smart Latch 2
Installation Guide
Please read the intructions
before fitting and using the
Yale Smart Latch 2.
The functions and design of this
product can be changed without
prior notice for performance
and quality improvements.
The smarter way to protect your home.
Disassemble Lockset
Please disassemble your existing
Nightlatch case and mounting plate.
*The Nightlatch and plates above are generic
images. If you are retrofitting the Yale Smart
Latch, your existing Nightlatch may be different.
Door Preparation
At the height you want your lock, use a
pencil to mark a spot exactly 60mm
from the edge of the door. At that spot,
drill a 32mm diameter hole through the
door. Or if using an existing cylinder
hole, use the template to mark the
position for the 20mm hole.
Cut Connecting Bar
Place the Electronic Keypad into the holes on
the outside of the door. Now measure and cut
the connecting bar to the required length.
Warning: The projection of the connecting bar is important to ensure the lock works correctly,
and may differ depending on the Nightlatch. If this is cut too short, it cannot be replaced.
Use template
provided
20mm Hole
72.5mm
32mm Hole
60mm
Inside Outside
*
Mark and cut connecting bar.
Cut with pliers to ensure a clean cut.
