Yale Luna Pro / Luna Pro+ 3D人脸推拉锁 安装指导书
材质：封面126g铜版纸，内页100g双胶纸 双面单色印刷 装订册
尺寸：205*140mm 24页
Part of ASSA ABLOY
STC-Luna-49S00236
Part of ASSA ABLOY
Installation Guide

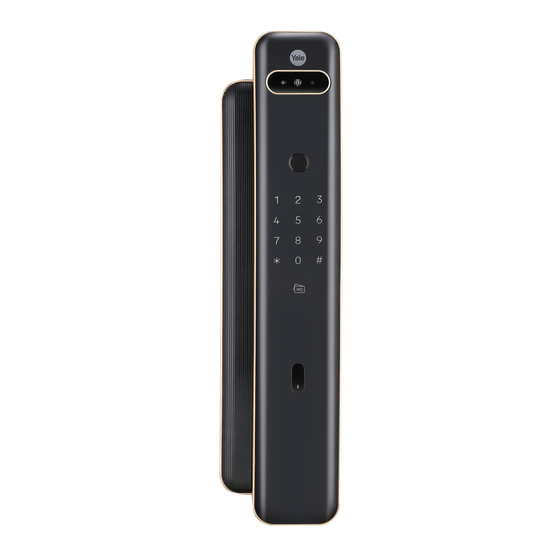

Yale Luna Pro+ / Pro
Yale Luna Pro+
FaceScan / CPU card /
Fingerprint / PIN code / Key
Yale Luna Pro
CPU card / Fingerprint / PIN
code / Key
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yale Luna Pro+
Summary of Contents for Yale Luna Pro+
- Page 1 Yale Luna Pro / Luna Pro+ 3D人脸推拉锁 安装指导书 材质：封面126g铜版纸，内页100g双胶纸 双面单色印刷 装订册 尺寸：205*140mm 24页 Installation Guide Yale Luna Pro+ / Pro Yale Luna Pro+ FaceScan / CPU card / Fingerprint / PIN code / Key Yale Luna Pro CPU card / Fingerprint / PIN...
-
Page 2: Table Of Contents
Table of contents Preparation before installation 1.1 Product parts list ........ 1.2 Optional accessories ........ 1.3 Door direction confirmation ........ 1.4 Mortise installation preparation ........ 1.5 Fixing handing direction ........ 1.6 Reversing handing direction (if needed) ........ 1.7 Installation of threaded pull tube, positioning plug ........ -
Page 3: Preparation Before Installation
(1x each) Accessories Mortise, striker plate, Striker box, screws Lithium battery 1x CPU card 2x Type-C USB cable 1x (Yale Luna Pro+) (Yale Luna Pro+) Alkaline AA battery 8x Mechanical key override 2x (Yale Luna Pro) Wooden door Steel door... -
Page 4: Optional Accessories
1.2 Optional accessories Table 1.2.2 Selection of spindle Exterior Interior Door Remark thickness (mm) Spindle 35-44 Length=35mm L1≥17mm Length=45mm 45-59 60-79 Length=60mm L1≥23mm 80-100 Length=80mm Exterior Interior door thickness Mortise center line Round head screws Table 1.2.1 Selection and customization of installation accessories Spindle Door thickness... -
Page 5: Door Direction Confirmation
1.3 Door direction confirmation 1.4 Mortise installation preparation This product can be applied to doors with four opening directions: left inward-opening, left To determine the latch direction by checking the door opening direction, either left inward-open- outward-opening, right inward-opening, right outward-opening. Take the person standing ing, left outward-opening, right inward-opening, right outward-opening, this is to ensure that outside facing the door as the standard: if the hinge of the door is installed on the left side, then when the door is closed, the latch bolt can be retracted under the pressure of door frame. -
Page 6: Fixing Handing Direction
1.5 Fixing handing direction Handle direction to be determined by door handing direction. . Handle . Round head screws Screw holes at the back panel, (ST2.9) for handing fixing to put on screw caps . Round head screws (M4) for securing cover plate Front body . -
Page 7: Reversing Handing Direction (If Needed)
1.6 Reversing handing direction (if needed) If you need to change the door opening direction due to ie. changing of the door, you will need to reverse the door handing direction. . round head . round head . Cover plate screws (ST2.9) screws (M4) . -
Page 8: Installation Of Threaded Pull Tube, Positioning Plug
1.7 Installation of threaded pull tube, 1.8 Main body handle cover removal positioning plug and transmission plate Threaded pull tube Gasket Before installation, use a flat-headed screw driver to detach the handle cover on Threaded pull tube the main body as shown in the picture above to expose the screw holes for installation later. -
Page 9: Product Installation
2.2 Front body installation Product installation 2.1 Mortise installation Exterior Interior Exterior Interior Mortise cable assembly Mortise screw Step 1. Pull through the front body cable assembly through the top hole as shown in the Step 1. Make hole on the door according to the template provided, insert mortise into door picture panel. -
Page 10: Main Body Plate Installation
2.3 Main body plate installation 2.4 Main body installation Main body plate Exterior Interior Mortise connector (right) Pull screw Spindle Retaining Ring Pull screw Front body connector (left) Spindle Mortise Spindle Spindle Retaining Ring Spindle Retaining Ring positioning plug Pull screw Insert the spindle into the main body Lever and ensure the positioning pin is... -
Page 11: Striker Plate And Striker Box Installation
2.5 Striker plate and striker box installation 2.6 Battery installation on main body Yale Luna Pro+ Yale Luna Pro Striker box Mortise screw Alkaline battery 8x Lithium battery x 1 Steel door Wooden door striker plate striker plate Mortise screw Step 1. -
Page 12: Acceptance Test
6. Check the door panel condition, ensure no swaying after the deadbolt is protruded into the side jamb 7. Check the functionality of credentials: PIN code, FaceScan (Yale Luna Pro+ only), fingerprint scan, CPU card. 8. Check the functionality of other components (networking modules, if any)
