This document is available on our website in Spanish and French. Go to www.yalelocks.com.
Click "Product Information & Documentation" and then "Installation Instructions".
Este documento está disponible en español en nuestra página de internet. Vaya a www.yalelocks.com.
Presione "Información del Producto y Documentación" y luego "Instrucciones de Instalación".
Ce document est disponible sur notre site Web dans le français imprimé. Allez à www.yalelocks.com.
Cliquez sur le " ; Information sur le produit et Documentation" et puis " Installation Instructions".
An ASSA ABLOY Group brand

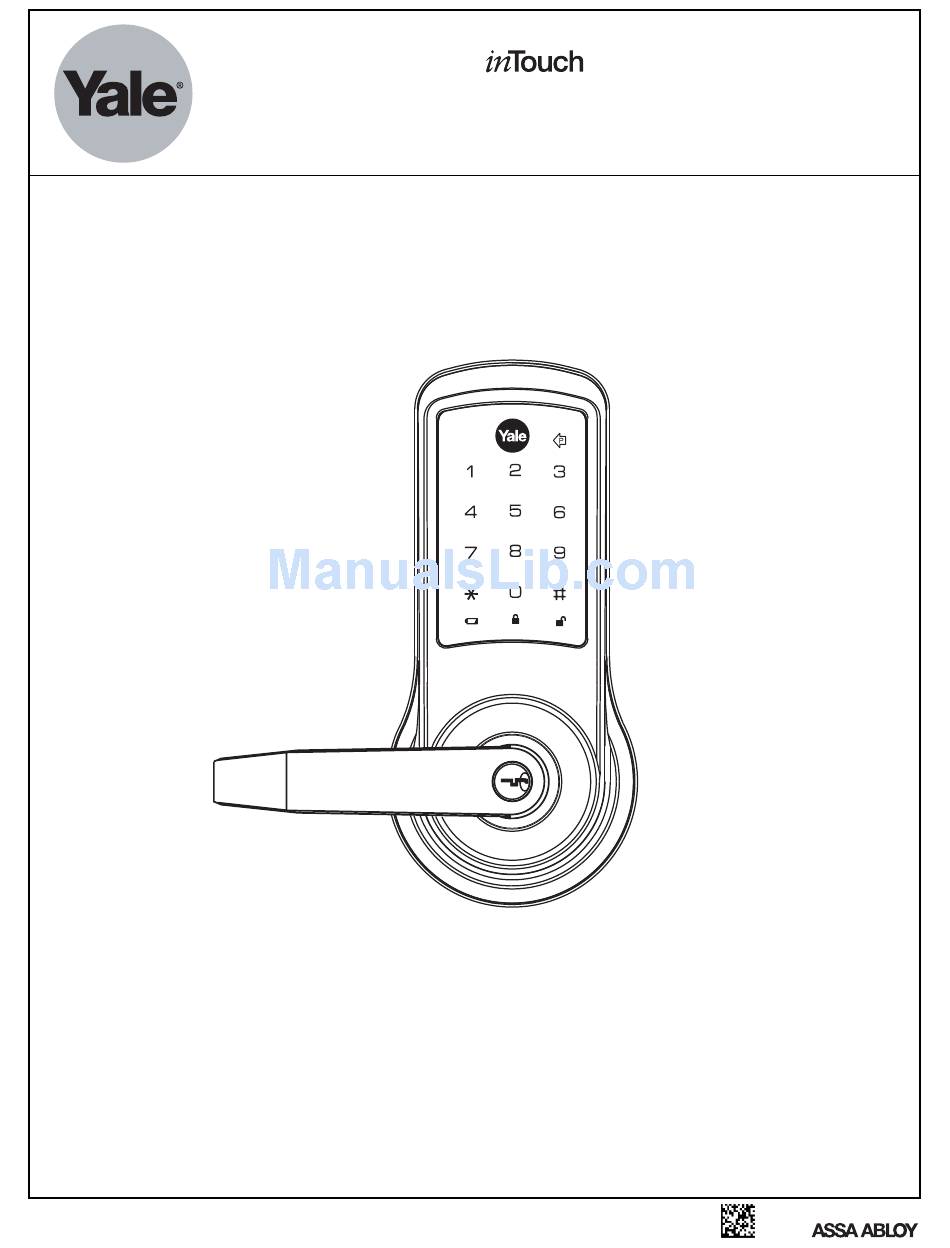

Stand-alone Touchscreen Access Cylindrical Lock
Installation and Programming Instructions
For Technical Assistance call Yale at 1-800-810-WIRE (9473)
®
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN DAMAGE TO THE PRODUCT
AND COULD VOID THE FACTORY WARRANTY
80-9150-0075-010 (08-12)
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Yale inTouch
Summary of Contents for Yale inTouch
- Page 1 COULD RESULT IN DAMAGE TO THE PRODUCT AND COULD VOID THE FACTORY WARRANTY For Technical Assistance call Yale at 1-800-810-WIRE (9473) This document is available on our website in Spanish and French. Go to www.yalelocks.com. Click "Product Information & Documentation" and then "Installation Instructions".
-
Page 2: Table Of Contents
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. -
Page 3: Installation
INSTALLATION COMPONENTS AND TOOLS In the box, you should find. . . Quick Start Instructions Inside Escutcheon Assembly: 4 AA Alkaline Batteries Installation Instructions • Inside Support Assembly Latchbolt Door Marker • Inside Escutcheon Strike Outside Touchscreen Assembly • Inside Lever Handle Allen Wrench 3/32"... -
Page 4: Door Preparation
DOOR PREPARATION 3/4" Diameter Mark Door VerIfy backset before marking and drilling door. 3-1/2" A. Mark horizontal line across edge of door at desired lever installation height. B. Fold door marker over the edge of the door, centering on the horizontal line. C. -
Page 5: Prepare Lock For Installation
Face the door from the secure side to determine it’s hand. The secure side is the touchscreen side of an entrance door or the corridor side of a room door. Note: inTouch locks are non-handed; the lever can be flipped around to the desired handing. Left Hand Reverse... - Page 6 Pull on handle to insure properly seated. ® CAUTION: For units shipped prior to March 2012: The cylinders furnished with inTouch lock for use in 1-3/8" doors have a tailpiece that is 1/4" shorter than the standard cylinders that are furnished for 1-3/4"...
-
Page 7: Install Lock
INSTALL LOCK Inside Assembly Outside Assembly Escutcheon Screw (1) 10-32 x 3/4" Pan Head With Star Washer Screw Touchscreen Cable Support Assembly Screws Motor Cable (2) 10-32 x 2-1/2" Flat Head Machine Screws Touchscreen Cable Retractor Touchscreen Routing Engages Cable Connector Latch Bolt Tail(s) -
Page 8: Hardware Troubleshooting
Avoid pinching wires 11. Insert four (4) AA alkaline batteries. The against the steel shank of the assembly. lock responds, “Welcome to the Yale b. “Z” fold touchscreen wire cable and lay Digital World.” against the back recessed area of 12. -
Page 9: Programming
PROGRAMMING Programming Features-Menus-Keys-Definitions ..........9-11 Operation ......................12-14 Miscellaneous Information ..................14 Programming Troubleshooting ................15 Sample Pin Code Management Sheets ............16-19 PROGRAMMING FEATURES - MENUS - KEYS - DEFINITIONS Outside Inside HEX Screw Numbers " P " Key (Return to Previous) Battery Cover Touchscreen 4 AA Battery... - Page 10 Menu and Icons Enter Personalized Master PIN code Touch the screen with palm of hand or (6 digits in length). fingers to begin and end actions. Click the indicated number. Enter User PIN. Can be 4-12 digits in length. Press the Star key on the touchscreen to User Number (1 - 255).
- Page 11 Definitions Re-lock Time: After successful code entry and the unit unlocks, it will automatically re-lock after a default of five (5) seconds. Re-lock time is adjustable from one (1) to ten (10) seconds through feature settings. Shut Down Time: The unit will shut down for a default of one hundred and eighty (180) seconds and not allow operation after the wrong code entry limit has been met.
-
Page 12: Operation
OPERATION ® inTouch features single programming mode with a total of 255 PIN codes available for access. All programming is performed through the touchscreen by use of the Master code (which also grants access) and voice guided prompts. The lock can be programmed for Passage mode, Silent mode, Lockout mode or alternate language settings. - Page 13 Establish the Master Code Before Programming 1. Touch the screen with the palm of your hand or fingers to activate 2. Press the key. 3. Enter personalized 6-digit Master PIN code followed by the key. 4. Press key to complete the process and conclude the programming session. Feature Programming 1.
-
Page 14: Miscellaneous Information
9. Reinstall the AA battery (still holding the reset button in). 10. Release reset button and wait 3 seconds. 11. The speaker will announce "Welcome to the Yale Digital EXT-PWR / REMOTE / MOTOR World". To reassemble the lock, refer to steps 8 through 12 on page 8. -
Page 15: Programming Troubleshooting
PROGRAMMING TROUBLESHOOTING Symptom Suggested Action Lock does not respond – door is • The touchscreen will become active when pressed with the palm or fingers in at least open and accessible. 3 areas simultaneously. • Use a larger area of the palm or fingers and verify contact with at least 3 areas. •... -
Page 16: Sample Pin Code Management Sheet
PIN CODE MANAGEMENT SAMPLE SHEETS PIN Code Management Door Number: Door Number: User Name PIN Number User Name PIN Number User 1 User 41 User 2 User 42 User 3 User 43 User 4 User 44 User 5 User 45 User 6 User 46 User 7... - Page 17 PIN CODE MANAGEMENT SAMPLE SHEETS PIN Code Management Door Number: Door Number: User Name PIN Number User Name PIN Number User 81 User 121 User 82 User 122 User 83 User 123 User 84 User 124 User 85 User 125 User 86 User 126 User 87...
- Page 18 PIN CODE MANAGEMENT SAMPLE SHEETS PIN Code Management Door Number: Door Number: User Name PIN Number User Name PIN Number User 161 User 201 User 162 User User 163 User User 164 User User 165 User User 166 User User 167 User User 168 User...
- Page 19 PIN CODE MANAGEMENT SAMPLE SHEETS PIN Code Management Door Number: User Name PIN Number User 241 User 242 User 243 User 244 User 245 User 246 User 247 User 248 User 249 User 250 User 251 User 252 User 253 User 254 User 255 80-9150-0075-010 (08-12)
- Page 20 Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Yale® and inTouch® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
