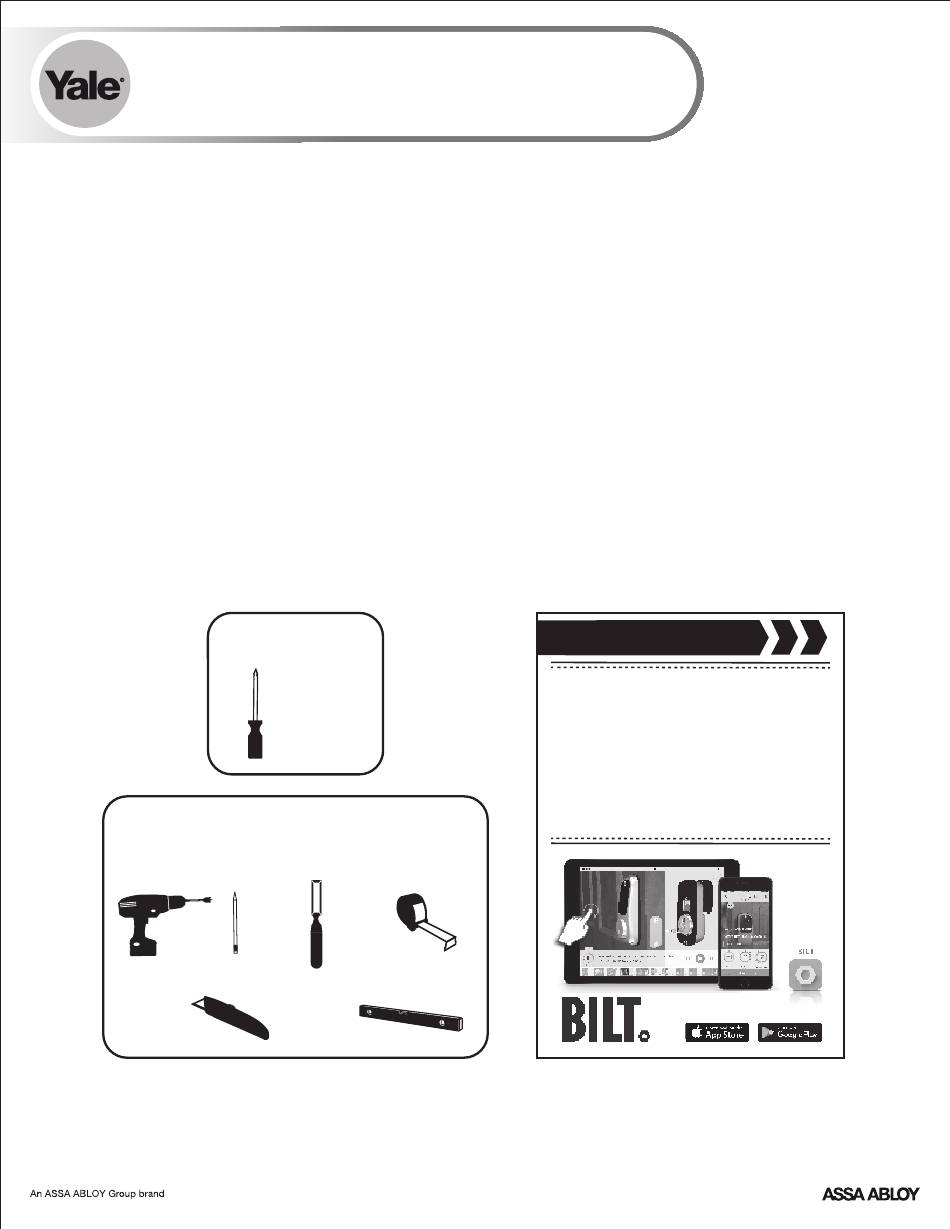

This manual will walk you through all the required steps to add your new
Yale Assure Lock SL to your door.
• Remove Existing Door Hardware
• Double Check Door Measurements
• Install your Assure Lock SL
• Program your Assure Lock SL
• Add your Assure Lock SL to your smart home system or August App*
Tools necessary only for new doors
or adjusting existing door
Drill
Utility Knife
*If purchased with Yale Smart Module or Connected by August Kit
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT, VOIDING THE FACTORY WARRANTY AND COULD LEAD TO FAILURE OF THE PRODUCT TO PROVIDE ACCESS.
Yale Assure Lock
®
Key Free Touchscreen Deadbolt
Installation and Programming Instructions
(YRD256)
Tools Needed
Standard
Phillips Head
Screwdriver
Measure
Pencil
Wood Mortise
Chisel
Level
P/N YRD256-MNL-0003 Rev F
SL
®
Before you begin
THE BILT APP
for step-by-step installation
Tape
1
DOWNLOAD
instructions & to register
your product
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Yale Assure Lock SL
Summary of Contents for Yale Assure Lock SL
- Page 1 • Remove Existing Door Hardware • Double Check Door Measurements • Install your Assure Lock SL • Program your Assure Lock SL • Add your Assure Lock SL to your smart home system or August App* Tools Needed Before you begin DOWNLOAD...
- Page 2 What's In The Box Optional Yale Let's Get Started Smart Module Installation Guide Envelope (Includes this manual and door checker with template) Key Free Touchscreen Keypad Loosen screw to remove cover Battery Cover 4 AA Batteries Inside Lock Mounting Plate...
- Page 3 Removing Existing Door Hardware Do not discard old lock hardware until Assure Lock SL has been successfully installed. Frame P/N YRD256-MNL-0003 Rev F...
- Page 4 Check Door Measurements and Make Adjustments If Needed Door Checker Use door checker from installation guide envelope to verify your door measurements and make any needed adjustments. Check Your Door Guide Let's Get Started New Door Marking Template With door checker, use template from installation guide envelope to prep a new door that has not been predrilled for hardware.
- Page 5 Installing Latch & Strike Plate *2-3/8" Backset default Actual Size *Deadbolt latch position is based on backset. Choose position appropriate for your door. *2-3/4" Backset Reference Door Checker measurements E and F. Actual Size optional Pull Bolt must be in retracted Press (unlocked) position.
- Page 6 Installing Touchscreen Keypad Inside of Door Outside of Door Bolt must be in retracted (unlocked) position. Note horizontal orientation of tailpiece slot. P/N YRD256-MNL-0003 Rev F...
- Page 7 Installing Inside Mounting Plate Choose through bolt appropriate for your door thickness. Verify appropriate through bolt with the door checker. Actual Size Screw Set B Actual Size Green Screw Set C Black 1-3/8" Actual Size Standard for Door Thickness Screw Set D 1-3/4"...
- Page 8 Attaching the Cable Assembly Inside of Door Ensure cable is securely fastened into adapter. Use cable hooks to ensure proper routing. Do not pinch wire. P/N YRD256-MNL-0003 Rev F...
- Page 9 Installing Inside Lock Horizontal Inside of Door Actual Size Ensure thumbturn is vertical. If the thumbturn does not move freely, refer to the hardware troubleshooting steps. P/N YRD256-MNL-0003 Rev F...
- Page 10 Testing Mechanical Operation Inside of Door If thumbturn operation fails, check the installation beginning with Step 3. P/N YRD256-MNL-0003 Rev F...
- Page 11 Installing Optional Yale Smart Module Inside of Door Batteries must not be installed prior to inserting and/or removing the Yale Smart module. For more information about Yale Smart modules and smart home features visit: https://www.yalehome.com/en/yale/yalehome/residential/yale-smart-home-guide/ P/N YRD256-MNL-0003 Rev F...
- Page 12 Additional entry codes and further programming can be done through the Settings Menu. Refer to page 15. Congratulations, you've installed the Yale Assure Lock SL ® ® Key Free Touchscreen Deadbolt ( YRD256...
- Page 13 Using Your Lock Touchscreen Keypad Press to wake keypad or lock door Press to return to previous Settings Menu Inside Lock Speaker Battery Cover Press to enter Enter Master Entry Code or unlock and press to access Settings Menu All Code Lockout Mode Indicator Low Battery Inside Notification...
- Page 14 Creating Master Entry Code The master entry code is used to change the lock settings. A security best practice is to set your master code with 6 or more digits and create a separate code that is used daily to lock and unlock the door. "Register Master Code.
- Page 15 Creating Entry Codes Master Entry Code must be created first. *Max user codes = 250 with Smart Module; 25 without. "Menu mode, press the gear key to continue." Enter Master Entry Code Press Press Enter 4-8 digit entry code Press Press Press Press...
- Page 16 Deleting Entry Codes "Menu Mode, enter number, press the gear key Enter Master to continue." Entry Code Press Press Press Press Press Deleting one entry code: To delete all entry codes (Does not delete Master Entry Code): To delete one entry code, you must enter the entry code you wish to delete.
- Page 17 Unlocking Door with Entry Codes Enter Entry Code Press P/N YRD256-MNL-0003 Rev F...
- Page 18 Setting Definitions Settings Default Setting Definition The Master Entry Code is used for programming and for feature Master Entry Code Creation required* settings. It must be created prior to programming the lock. The Master code will also operate (unlock/lock) the lock. After a successful code entry or manual unlock with the key, the lock will automatically re-lock after each unlock in an effort to keep Auto Re-lock...
- Page 19 Here is an example of how to set Auto Lock to 30 seconds: Master Entry Code *The Master Entry Code must be created prior to any other programming of the lock. **Network Module Setting function appears only with Yale Smart module installed. P/N YRD256-MNL-0003 Rev F...
- Page 20 Troubleshooting Symptom Suggested Action Yale keypad becomes active when the Yale logo is pressed. • Verify contact with the logo. If keypad numbers are visible, check to see if they respond when pressed. • Lock does not respond – Check batteries are installed and oriented correctly (polarity) in battery case.
- Page 21 1. Remove plate from door frame with a manual For help with misalignments, watch our door screwdriver. (Using an electric driver may strip screw alignment video: heads or enlarge screw holes.) https://www.yalehome.com/en/yale/yalehome/support/ yrl-electronic-lock-faqs/electronic-lock-installation/ P/N YRD256-MNL-0003 Rev F...
- Page 22 (9-Volt battery jumper, low battery warnings), it is still possible for a lockout situation to occur. Because this product does not ® have a mechanical override (a key), Yale recommends to use this product in an environment where there are additional entry points into the dwelling.
- Page 23 Please use this procedure only when network primary controller is missing or otherwise inoperable. Adding a Yale Z-Wave Plus v2 Smart Module to your Assure Lock & Z-Wave System ® 1. Install Yale Smart Module into slot above battery compartment...
- Page 24 20cm between the radiator & your body. 24/7 Tech Support : 1-855-492-0505 • www.yalehome.com Yale® is a registered trademark of ASSA ABLOY Residential Group. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
- Page 25 Yale Locks Z-Wave Plus v2 System Integrators Guide Yale Assure Electronic Deadbolts YRD216-ZW3, YRD226-ZW3, YRD256-ZW3...
- Page 26 Contents Yale Z-Wave+ Product Info ................3 Supported Command Classes ................3 Association Table: ..................3 Notifications Table ..................4 Configurable Parameters ................. 8...
- Page 27 Yale Z-Wave+ Product Info Manufacturer ID: Assa Abloy (0x0129) Z-Wave Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) Product ID: 0xA570 Product Type ID: 0x8002 for YRD256-ZW3 (Touch Screen Deadbolt) Supported Command Classes ...
- Page 28 o Battery_Report Command_Class_Configuration o Configuration_Report Command_Class_Notification o Notification_Report Command_Class_Door_Lock o Door_Lock_Operation_Report o Door_Lock_Configuration_Report Command_Class_Device_Reset_Locally o Device_Reset_Locally_Notification Command_Class_Indicator o Indicator_Report Command_Class_User_Code o User Code Report Command_Class_Clock o Clock_Report Notifications Table Table 2 - Notifications Table Alarm Alarm Notification...
- Page 29 0x03 By inside button 0x06 0x01 By key cylinder Manual Unlock 0x16 0x01 or inside thumb 0x06 0x02 turn RF Operate Lock 0x18 0x01 by RF module 0x06 0x03 RF Operate 0x19 0x01 by RF module 0x06 0X04 Unlock Auto re-lock Auto Lock 0x1B 0x01...
- Page 30 Master code was 0x00 changed at 0x06 0x12 Master Code keypad changed Master code was 0xFB 0x06 0x0E 0x70 changed over RF User added. 0x(01- Alarm level = User added 0x06 0X0E user slot users) number Where Alarm level represents user slot number Alarm generated...
- Page 31 0x08 0x0B at 3.9V) ** The Yale lock also supports a 3 low battery alarm: too low to operate. This alarm is sent out as a Battery Report (with value = 0xFF) through the Battery Command Class. This is the last low battery alarm level before the product stops...
- Page 32 Configurable Parameters Table 3 - Configurable Parameters Info Configuration Properties Info String Param. Num. Name Length Default 0x01 (High 0x03 0x02 (Low Set Volume Level to high (1), Volume 1 byte Volume) (Silent) Volume) low (2), or silent (3). 0x00 0xFF 0x00 Set Auto Relock feature to...
- Page 33 0x00 0x02 0x00 Set the Operating Mode to Operating (Normal (Privacy (Normal normal mode(0), vacation mode 1 byte Mode) Mode) Mode) mode(1) or privacy mode(2). One Touch 0x00 0xFF 0xFF Set One Touch Locking Locking 1 byte (Disable) (Enable) (Enable) feature to enable or disable.
