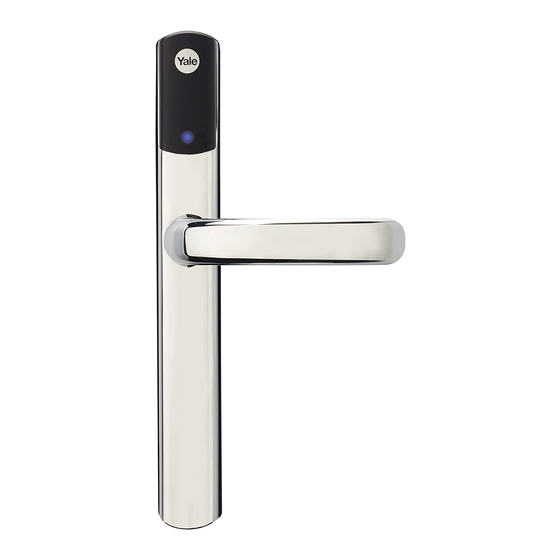

Summary of Contents for Yale Conexis L1

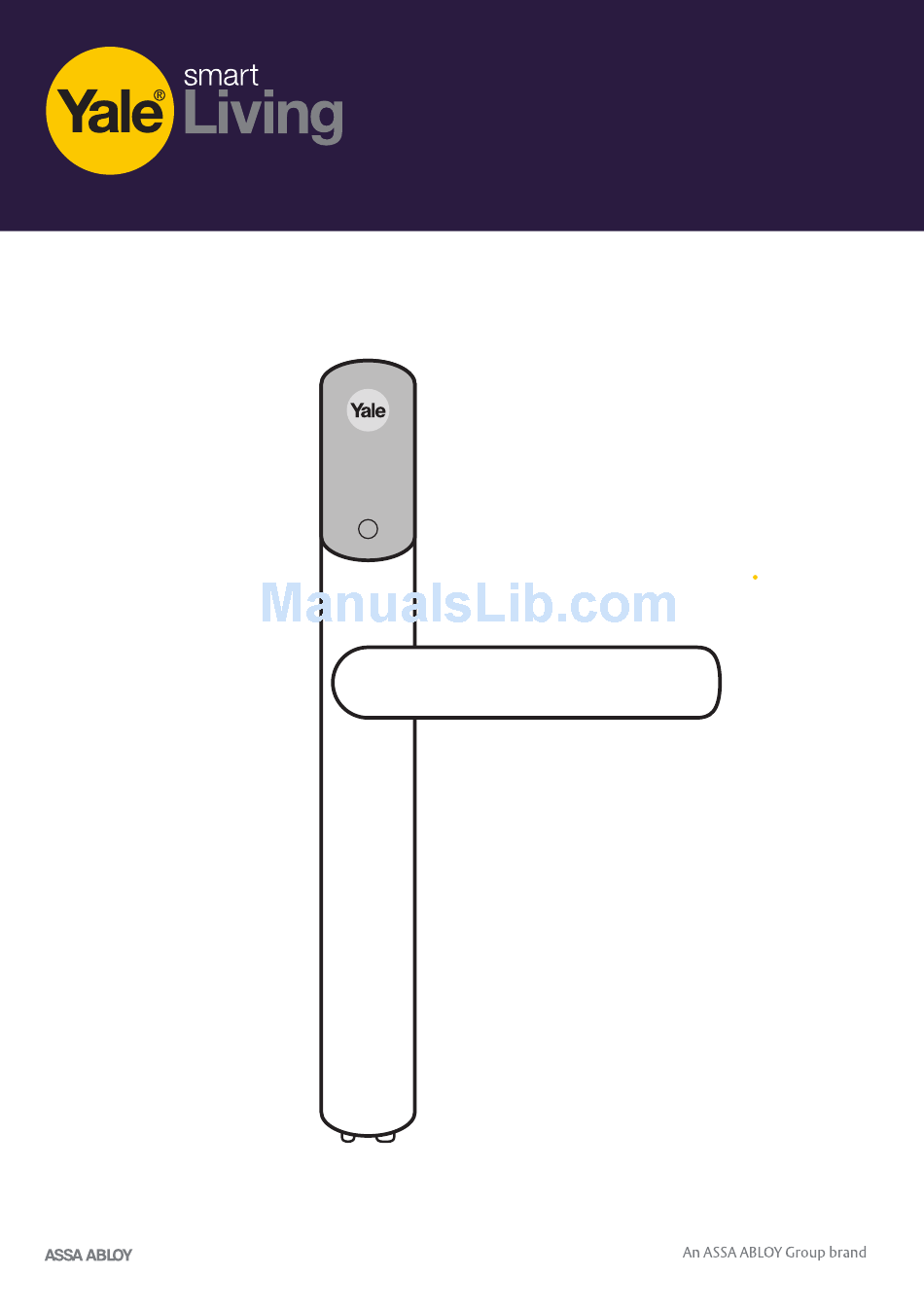

  • Page 1 Conexis L1 Conexis L1 Conexis ® Manual The Secure, Keyless Smart Door Lock ASSA ABLOY Group brand...
  • Page 2: Table Of Contents

    Factory Reset Frequently Asked Questions Hereby, ASSA ABLOY Ltd declares that the Conexis L1 Smart Door Lock is ® in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.yale.co.uk/declaration-of-conformity...
  • Page 3: Installation Videos

    Installation Videos Please watch the installation videos on the Yale website or YouTube channel and read this manual completely before installation. How to install a Conexis ® L1 Smart Door Lock smart Living How to install a Conexis L1 Smart Door Lock ®...
  • Page 4: Conexis L1 Smart Door Lock

    (02) Conexis L1 Smart Door Lock ® • I N S I D I D E I D E I N S I D O U T S O U T S I N S I D I D E O U T S Radio Cover Key Card/Tag Reader...
  • Page 5: Inside The Box

    Inside The Box • (03) 4x AA Alkaline 4x AA Alkaline Fixing Pack A Fixing Pack A The smart way to protect your home. The smart way to protect your home. Fixing Pack B Fixing Pack C Fixing Pack D Fixing Pack B Fixing Pack C Fixing Pack D...
  • Page 6: Removing Existing Handle And Cylinder

    Removing Existing Handle And Cylinder • Do not close door until installation is complete Make note of your positions...
  • Page 7: Measuring Your Door

    Measuring Your Door • Measure the thickness of the door to select the correct fixing pack. I N S I D Door thickness Door thickness Door thickness 44-50mm 58-65mm 70mm Measure the distance between the centre of the lock and the inside of the door to select the correct tailbar. I N S I D E I N S...
  • Page 8: Installing The Actuator

    Installing The Actuator • Choose suitable size screw for door I N S I D E I N S I D E I N S I D E Once installed in the door, turn the tailbar left and right, do not turn past angle shown on diagram.
  • Page 9: Installing Handles

    Installing External Handle • Refer to current fixing screw positions...
  • Page 10 Installing Internal Fixing Plate • (08) Ensure correct fixing pack is used for width of door. Do not fully tighten as the handle needs to be aligned in the next step. Fixing pack B, C or D screws. Remove...
  • Page 11 Aligning Handle • (09) Ensure exterior handle and fixing (09) plate are parallel before finally tightening screws. (09) INSIDE OUTSIDE INSIDE OUTSIDE INSIDE OUTSIDE Please ensure that alignment tool is flat against the door as screws are tightened. This ensures the motor is aligned correctly.
  • Page 12 Installing Internal Handle • Do not turn thumbturn until installation is complete Turn until arrows are facing each other...
  • Page 13 Installing Internal Handle • Remove Take care when removing cable if adjustments are needed Tuck excess cable into slot Do not trap cable!
  • Page 14 Installing Internal Handle • Check seal! Then tighten screws...
  • Page 15: Handing The Lock

    Handing The Lock • If these steps are not completed the door will not lock. If the lock sounds like it is struggling to lock, check actuator installation shown on page 8 Hold ‘R’ Button for 15sec until “Beep Beep” Return handle to centre “Beep Beep”...
  • Page 16: Pairing Master Key Card

    / tags will need to be added via the app Press ‘R’ button on internal handle to turn the light on the external handle purple Touch card below the Yale logo on the external handle so that the light turns green, then purple.
  • Page 17: Locking The Conexis ® L1

    Locking The Conexis ® • Please make sure your door remains open “Beep Beep Beep” Check that the handle is locked...
  • Page 18 Unlocking With Master Key Card •...
  • Page 19 Lift the lever handle to lock again. Tap the paired card on the outside handle under the Yale logo. Make sure it unlocks and the lever can be pushed down. Please proceed to setup the Conexis L1...
  • Page 20 Conexis L1 App ® • Download App YALE LO 1 Download the Conexis L1 App ® LOCK 2 Register Account Create Account 3 Verify account by clicking link sent to your email You will now be credited with 5 Virtual Key credits. Additional key...
  • Page 21: Pairing Master Phone To App

    When prompted press ‘R’ button. If the app has changed from what is shown on this manual please download the latest version from www.yale.co.uk/help Press Purple Light to activate Bluetooth O U T S I Please note that pairing the lock to your phone will use 1 of your 5 key credits.
  • Page 22: Adding Additional Key Cards/Tags

    Adding Additional Key Cards/Tags • All additional key cards/tags must be added through the app When prompted, press the Bluetooth button on the exterior handle.
  • Page 23 Adding Additional Key Cards/Tags • When prompted by app, present card/tag Once an additional key card/tag has been added, ‘User 1’ will appear in the list. This is the master key card previously added. Having difficulty? Please check out our video guides.
  • Page 24: Unlocking Using App

    Unlocking Using App • Make sure Bluetooth is active on your Smart Phone...
  • Page 25: Sharing Virtual Keys

    Sharing Virtual Keys • You can give an unlimited number of people access by sharing a virtual key. Please note, 5 virtual key credits are included with the app. Additional key credits can be purchased through the app The user will have to download the Conexis L1 App and register an account to be able ®...
  • Page 26: Pairing To A Smart Home Controller

    Pairing To A Smart Home Controller • Insert radio module Press ‘R’ 3 times within 1.5 sec Pairing is a two way process, your smart home controller may need to be in ‘Device Inclusion Mode’ Remove From Controller The lock may need to be removed from a home automation system before being added to a new system.
  • Page 27: Adding Remote Fobs

    process and may require the Adding Remote Fobs • o look for a new device, please nformation. All remote fobs you wish to add need to be added at the same time in step 4 (maximum of 5) Parts Required (19) Locking “Beep beep beep”...
  • Page 28: Battery Indicator

    Battery Indicator • Low Battery “Beep beep beep, Beep beep beep, be be be be be” Replace with Alkaline Batteries No Battery...
  • Page 29: Factory Reset

    Factory Reset • (19) Locking “Beep beep beep” Disconnect cable Do not pull cable. To prevent damage, pull at base of connector Press and hold ‘R’ Checking Remove batteries and install following Insert batteries while installation instructions pressing ‘R’ button. Hold until “beep”...
  • Page 30: Frequently Asked Questions

    ‘R’ button as the batteries are inserted. When the lock powers up, release the ‘R’ button. Re-check connections and cabling. If you have issues with any of the above, please visit www.yale.co.uk/help and view the YouTube videos covering istallation and app setup.
  • Page 31 Notes •...
  • Page 32 Issue No. 2A Conexis L1 with its unparalleled THE YALE BRAND global reach and range of products, reassures more people in more countries than any other consumer locking solution THE ASSA ABLOY GROUP is the world’s leading manufacturer and supplier of locking...
