- Page 1 English User manual XAS 8000...

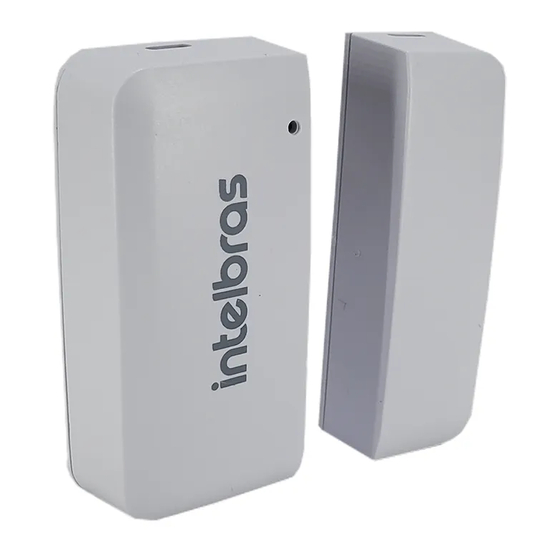

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The XAS 8000 opening sensor is indicated for protecting doors and windows, monitoring their opening and closing. Easy installation product, it has a low consumption circuit, providing a longer battery life. It also has a tamper key for tamper protection, making your environment even more secure, a key for registration and a status indicator LED.
- Page 3 Care and safety » LGPD – Data processing by Intelbras: Intelbras does not access, transfer, capture or perform any type of processing of personal data from this product. » This product is intended for indoor environments. » Respect the distance of the GAP (distance between the sensor is the magnet).
-
Page 4: Table Of Contents
4. Sensor opening 5. Enrolling the XAS 8000 sensor 5.1. Deleting sensor registration ..............7 6. -
Page 5: Technical Specifications
1. Technical specifications Operating voltage 3V Lithium battery, model CR2450 Operating current RF range 1000 meters without barrier Transmission frequency 915 MHz – 928 MHz Power 11 dBm Modulation DSSSS BPSK 40 Kbps Compatibility AMT 8000 alarm panel Anti jamming Against invasive signs Anti-violation Rear tamper... -
Page 6: Product
4. Sensor opening To access the XAS 8000 board for registration, battery replacement or to unregister it from the control unit, simply open the lock with the help of a screwdriver and remove its base. This way the board will be exposed and ready for handling. -
Page 7: Enrolling The Xas 8000 Sensor
Remove the plate, then insert the battery (model CR2450), respecting the polarity. 5. Enrolling the XAS 8000 sensor The sensor registration can be performed through the AMT 8000 Desktop Programmer software, remote AMT mobile application, keyboard commands and synchronization button on the alarm center. -
Page 8: Identified The Best Location For Installation
6. Identified the best location for installation The XAS 8000 sensor has signal level indications for communication with the AMT 8000 control panel, this will help you to choose the best installation location. Follow the procedure: 1. After duly registered, take the sensor to the environment you want to protect;... - Page 9 Important: check that the GAP distance (distance between the sensor and the magnet) is within the specified range, to avoid unwanted triggering if any vibration occurs in the structure in which the sensor is installed. Maximum GAP: 20 mm ±15%. To close the sensor and the magnet, simply fit the locks and then press the other side for complete closure.
-
Page 10: Configuring The Xas 8000 Sensor
8. Configuring the XAS 8000 sensor The adjustment of sensor settings can be done in two ways, below we present the step by step of each one. 8.1. Configuring the sensor via the keyboard Using the AMT 8000 control panel keypad, enter programming mode with the installer password, then enter the following... - Page 11 Sensor 9 > ... Sensor 64 > After selecting the sensor, the following adjustment screen will open. For the XAS 8000 the sensitivity and operating mode settings do not apply. LED configuration only. Sensitivity (not applicable) Level 0 Level 1...
-
Page 12: Battery
Intelbras or directly disposed of in an environmentally appropriate manner, avoiding environmental and health impacts. If you prefer, the battery as well as other unused Intelbras brand electronics can be disposed of at any Green Eletron collection point (electronic waste manager to which we are associated). In case of doubt about the reverse logistics process, contact us by telephone (48) 2106-0006 or 0800 704 2767 (from Monday to Friday from 8 am to 8 pm and on Saturdays from 8 am to 6 pm) or by e-mail. -
Page 13: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 03.23 CNPJ 82.901.000/0016-03 –...
