1.2

PCB 3-D Views

Figure 3 and Figure 4
SLVUAI8A – August 2015 – Revised June 2017
Submit Documentation Feedback
show the top and bottom three-dimensional PCB views.

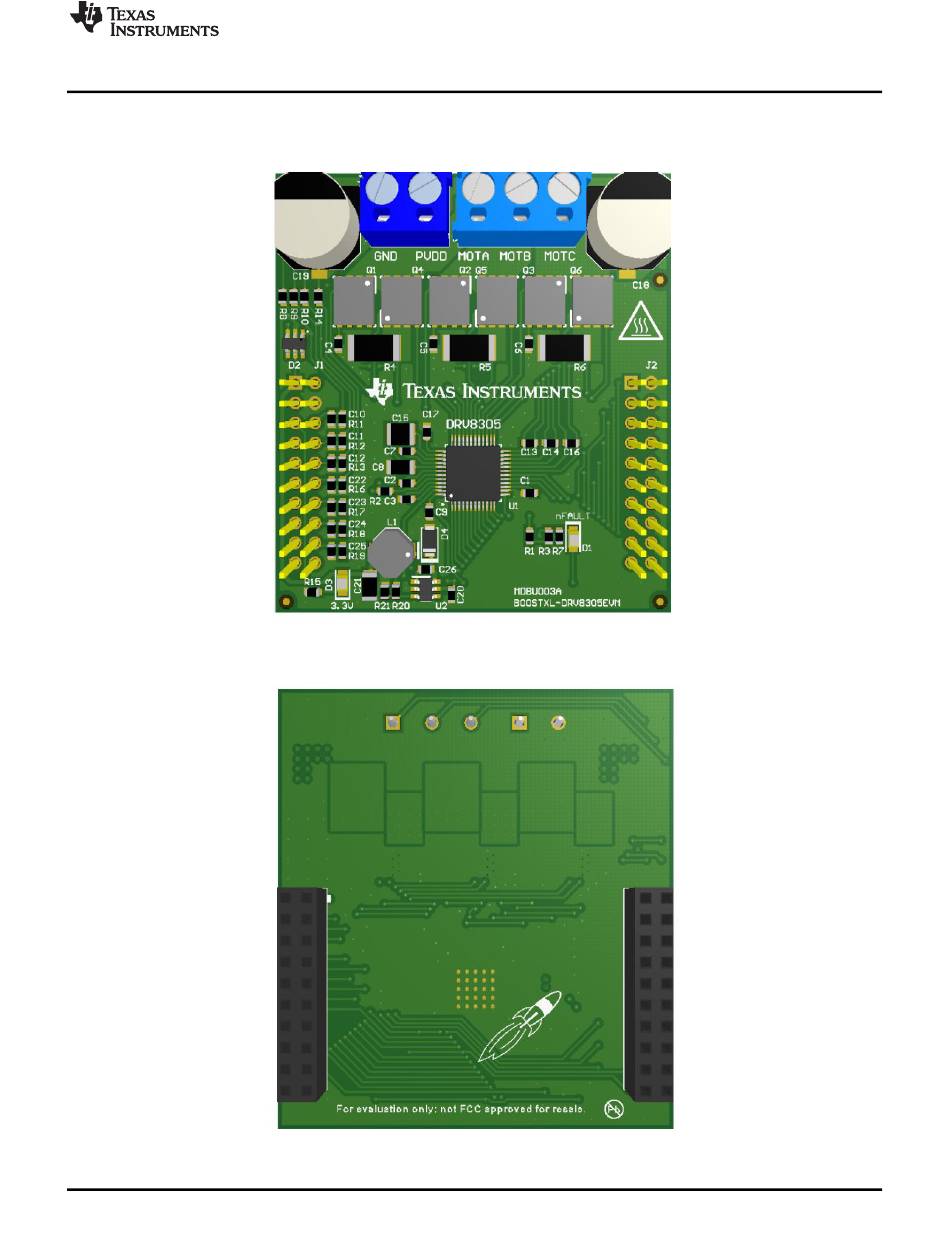

Figure 3. 3-D Top View
Figure 4. 3-D Bottom View
