Assembly Manual

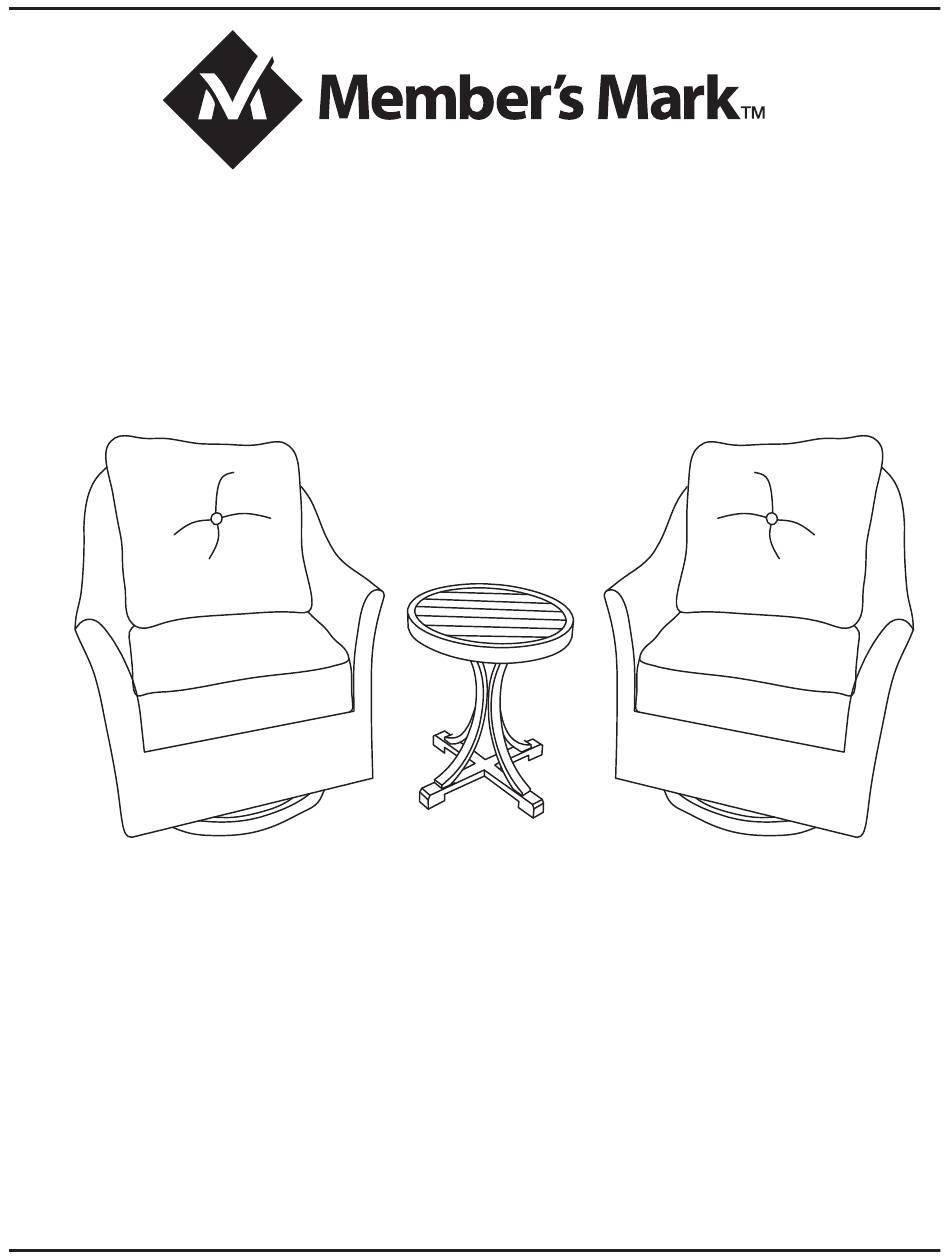

Townsend 3pc Bistro Set
Model Number: GC-41007-3PC
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Townsend GC-41007-3PC and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark Townsend GC-41007-3PC

Summary of Contents for Member's Mark Townsend GC-41007-3PC

  • Page 1 Assembly Manual Townsend 3pc Bistro Set Model Number: GC-41007-3PC THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 2: Important Safety Information

    Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime.
  • Page 3 Swivel Chair Components A..Chair frame..1 B..Base....1 C..Seat cushion..1 D..Back cushion...1 Hardware Metal plate Allen/Hex Head Bolt M8 Washer Qty: 4 M8x50mm Qty: 4 Qty: 4 M8 Spring Washer M8 Damping Nut M6-M8 Hex Wrench Qty: 4 Qty: 4 Qty: 2 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 4 Step 1 Metal plate Allen/Hex Head Bolt M8 Washer Qty: 4 M8x50mm Qty: 4 Qty: 4 M8 Spring Washer M8 Damping Nut M6-M8 Hex Wrench Qty: 4 Qty: 4 Qty: 2 Carefully place chair frame(A) upside down a soft, flat and non-abrasive surface. Attach the base (B) to chair frame (A) using M8 bolts(F), Washer(G), Spring washer (H) and M8 Damping nuts (I) .
  • Page 5 Step 2 Crefully turn the chair over. Place the seat cushions (C) and back cushion (D) on the swivel chair. The chair is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...

  • Page 6: Side Table

    Side table Components A..Table top..1 B..Table leg 1..1 C..Table leg 2..2 Hardware Allen/Hex Head Bolt M6 Washer Allen Wrench M6x20mm Qty: 8 Qty: 1 Qty: 8 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 7 Step 1 Allen/Hex Head Bolt M6 Washer Allen Wrench M6x20mm Qty: 4 Qty: 1 Qty: 4 Carefully place the table top (A) upside down on a non-abrasive surface. Assemble the table legs 1 (B) and legs 2 (C) to the table top(A) with bolts (D) and washer (E) by using Allen wrench (F).
  • Page 8 Step 2 Allen/Hex Head Bolt M6 Washer Allen Wrench M6x20mm Qty: 4 Qty: 1 Qty: 4 Assemble the table legs 1 (B) and legs 2 (C) with bolts (D) and washer (E) by using Allen wrench (F). Tighten all bolts with Allen wrench. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
  • Page 9 Step 3 Crefully turn the table over. The side table is ready for your enjoyment. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
