Ruijie Reyee RG-NIS Series Configuration Manual page 12

Web-based Configuration Guide

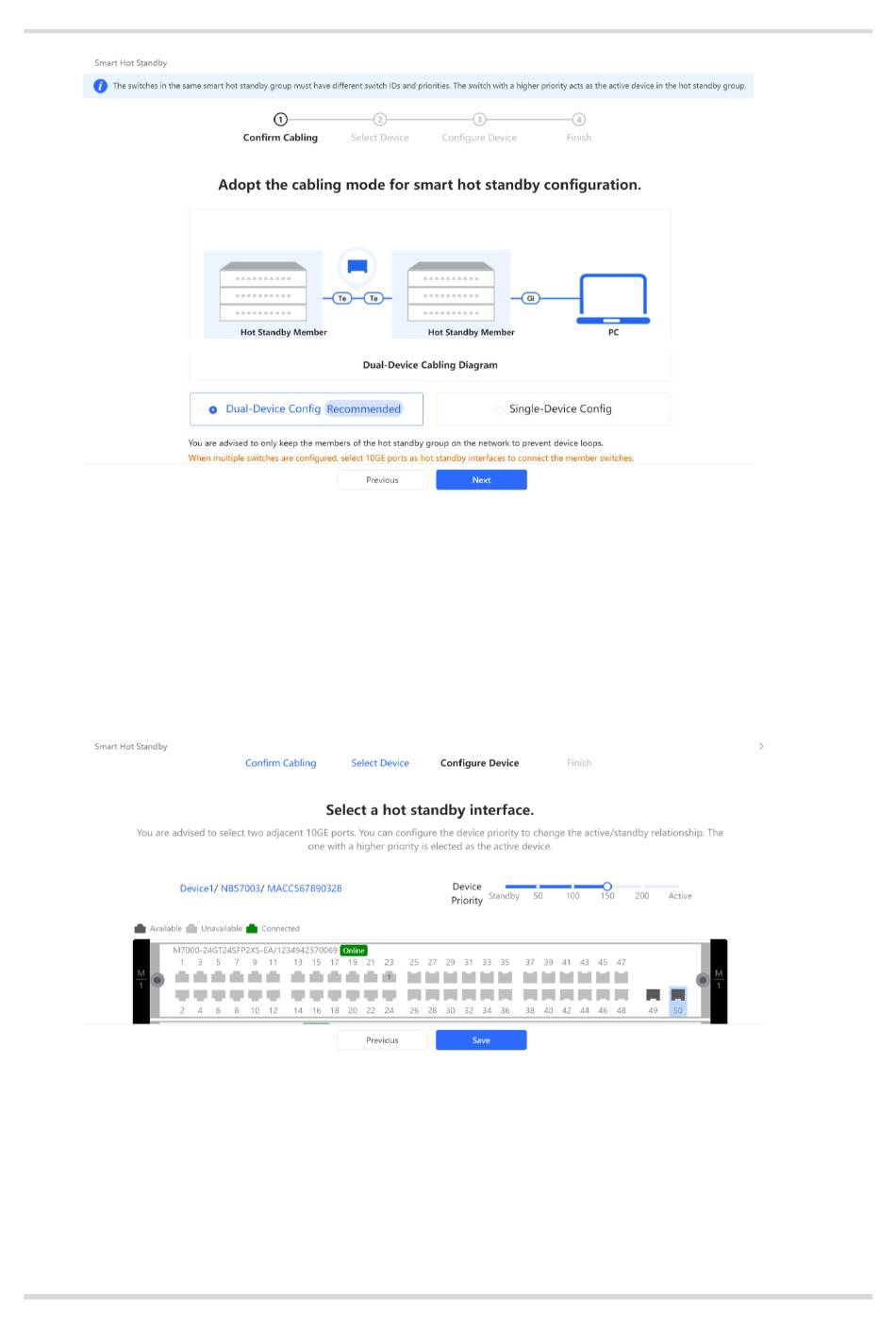

(4) Select the active switch and click Next.
(5) Select the standby switch.
(6) Select the hot standby interfaces. You are advised to select two adjacent interfaces on a switch, and can
select up to four interfaces on each device for hot standby. These hot standby interfaces must be 10GE
interfaces. By default, the active switch has a priority of 200, while the standby switch has a priority of 100.
If the priority is changed, a switch with a higher priority will become the active switch.
(7) Then, click Next. Use a 10GE cable to connect the hot standby interfaces that you have selected. (The
following figure shows an example of connecting Interface 49 of Device 1 to Interface 49 of Device 2.)
