Skope B Series Service Manual

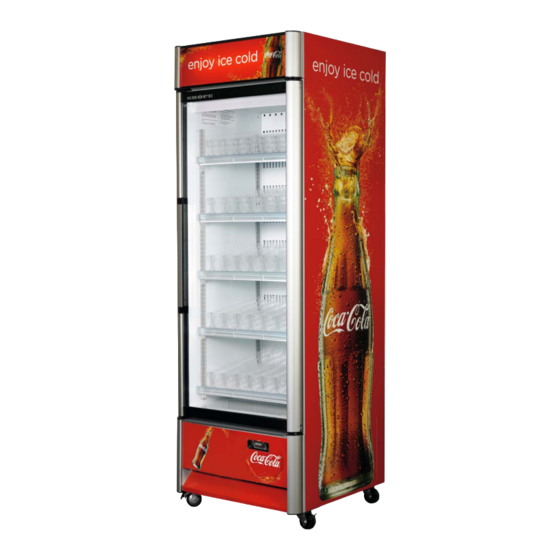

Gen3 vertical fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

B Series (R290)
SKOPE Gen3 Vertical Fridge

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skope B Series

Summary of Contents for Skope B Series

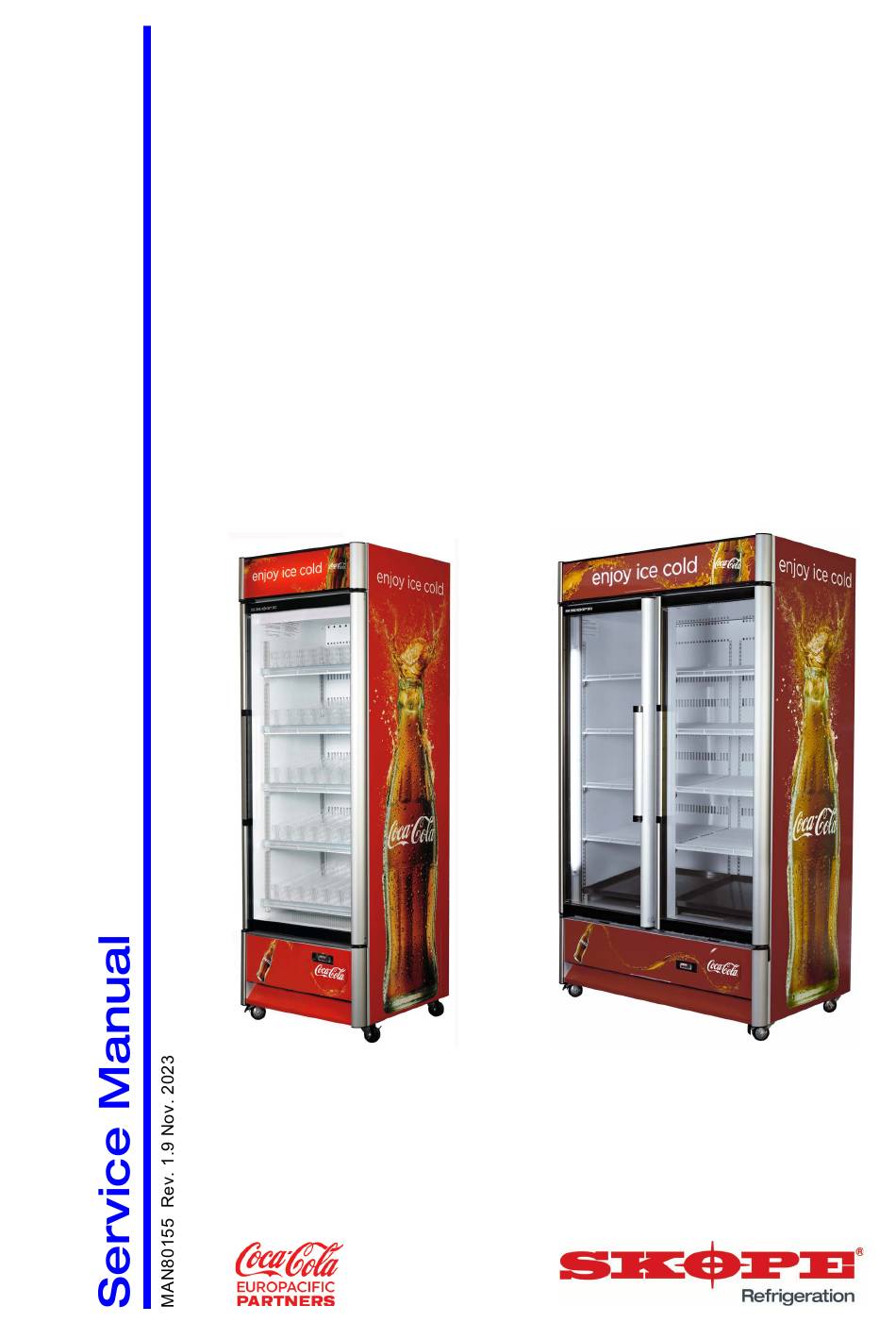

  • Page 1 B Series (R290) SKOPE Gen3 Vertical Fridge...
  • Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...

  • Page 3: Table Of Contents

    Cassette Cover ........34 SKOPE B Series (R290)
  • Page 4 Cabinet ..........67 SKOPE B Series (R290)

  • Page 5: Specifications

    Models This service manual is applicable to the SKOPE Gen3 cabinets detailed below. The model code is used to distinguish between different models. Table 1: Model specifications...
  • Page 6 SKOPE B Series (R290) B600N-3 Table 2: B600N-3 Cabinet Description R290, side lighting, gravity matting Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane Insulation blowing agent: C 1 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass External...

  • Page 7: B600N-3U

    SKOPE B Series (R290) B600N-3U Table 4: B600N-3U cabinet Description R290, shelf front lighting, gravity matting Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane Insulation blowing agent: C 1 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass...

  • Page 8: B600N-3W

    SKOPE B Series (R290) B600N-3W Table 6: B600N-3W cabinet Description R290, side lighting, standard wire shelves Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane Insulation blowing agent: C 1 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass...

  • Page 9: B1200N-3

    SKOPE B Series (R290) B1200N-3 Table 8: B1200N-3 cabinet Description R290, side lighting, gravity matting Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane blowing Insulation agent: C 2 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass External...

  • Page 10: B1200N-3U

    SKOPE B Series (R290) B1200N-3U Table 10: B1200N-3U cabinet Description R290, shelf front lighting, gravity matting Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane Insulation blowing agent: C 2 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass...

  • Page 11: B1200N-3W

    SKOPE B Series (R290) B1200N-3W Table 12: B1200N-3W cabinet Description R290, side lighting, standard wire shelves Construction 50 mm thick, polyurethane foam. Cyclo-iso pentane Insulation blowing agent: C 2 × self-closing, lockable, double-glazed, double low-e, Doors argon-filled, toughened safety glass...

  • Page 12: Installation

    SKOPE B Series (R290) 2 Installation Positioning the Cabinet Climate Class The cabinet has been designed to operate safely in an environment up to climatic class 5 (40.0°C @ 40% relative humidity), and is also designed to achieve TCCC C-Pass performance within a 32.2°C @ 65% environment.

  • Page 13: Shelves

    SKOPE B Series (R290) Shelves The cabinet is fitted with wire shelves which may be positioned at different heights to suit various products, and one or two solid bottom shelves. Each solid bottom shelf is held in place by brackets attached to the floor of the cabinet. It is important that the bottom shelves are always in place as they direct the interior air circulation.
  • Page 14 SKOPE B Series (R290) Procedure 5: To reposition a lit shelf 1. Disconnect the cabinet from the mains power supply (see page 22). 2. Remove product from the shelf required to be moved, and from the shelf immediately above it.

  • Page 15: Electronic Controller

    The cabinet is fitted with an AoFrio SCS Connect electronic controller. The controller located behind the front kick panel. The controller is pre-programmed. SKOPE does not recommend that settings be changed unless it is absolutely necessary. To ensure efficient operation, the controller automatically forces a defrost cycle when required.

  • Page 16: Service Mode

    SKOPE B Series (R290) Service Mode Service mode can be accessed and used via the controller faceplate, or the SCS Connect Field app. Follow the steps below to access and use service mode via the controller buttons. Note: A 9 digit pin code is required to access service mode via the controller buttons. Contact your User Manager to receive your activation code.

  • Page 17: App Categories

    SKOPE B Series (R290) Procedure 9: To connect to a controller 1. Check that the Bluetooth logo on the top right of the controller faceplate is lit, indicating that the controller is ready to connect to a device. Note: A flashing Bluetooth logo indicates that the controller is currently connected to a device.

  • Page 18: Faults And Alarms

    SKOPE B Series (R290) SCS info Controller version and the cabinet’s asset information. SCS setup Add or change SCS info (see above). Disconnect Disconnect from currently connected controller. Settings Change app general settings. Faults and Alarms The following table explains faults and alarms that the electronic controller may log and display.
  • Page 19 SKOPE B Series (R290) Table 15: AoFrio controller faults (continued) Description Possible root cause Take a spare cassette in case of refrigeration system fault. • Condenser blocked (or bad installation or ventilation) • Door installation or ventilation • Cabinet or cassette gasket seals leaking Excessive compressor cycling protection •...
  • Page 20 SKOPE B Series (R290) Table 16: AoFrio controller alarms (continued) Code Description Possible root cause Take a spare cassette in case of refrigeration system fault. • Condenser blocked (or bad installation or ventilation) • Poor installation or ventilation • Frozen blocked evaporator coil Failed to reach set temperature •...
  • Page 21 SKOPE B Series (R290) Table 16: AoFrio controller alarms (continued) Code Description Possible root cause Take a spare cassette in case of refrigeration system fault. • Door not self-closing or gasket leaking Excessive automatic defrosting • Evaporator probe • Evaporator motor or fan The system is automatically defrosting too frequently.

  • Page 22: Replacement Procedures

    SKOPE B Series (R290) 4 Replacement Procedures Electrical Safety Caution Disconnect the cabinet from the mains power supply before attempting any maintenance. Correct wiring routing is as important as using the correct components for compliance with safety and radio interference regulations.

  • Page 23: Shelf Front Lights

    SKOPE B Series (R290) Ensure the light is replaced with the same light type. WARNING Replace the light with the same SKOPE OEM part. DO NOT use alternative LED strip or tube lights, or fluorescent tubes. Shelf Front Shelf front lights are made up of two replaceable components: Lights •...

  • Page 24: Sign Light

    SKOPE B Series (R290) Procedure 14: To replace the LED driver power supply (continued) 5. Replace the LED driver power supply. 6. Reassemble the cabinet and perform electrical safety test as per standard procedure. 7. Reconnect to the power supply and check for correct operation.

  • Page 25: Removing And Refitting The Door

    SKOPE B Series (R290) If the gasket is out of shape after you fit it, use a hair dryer to heat and reshape it. Door gasket Door frame Removing and For ease of servicing and to reverse the hinging, you can remove the door from the cabinet.
  • Page 26 SKOPE B Series (R290) Procedure 17: To refit the door 1. Lift the door onto the bottom hinge pin, and align the pin on the top of the door with top hinge. Ensure the pin is fully inserted into the top hinge.

  • Page 27: Adjusting Door Tension

    SKOPE B Series (R290) Adjusting Door The door has an internal torsion bar, pre-tensioned at the factory, that lets the door self-close. Tension If the door has lost tension and does not self-close it may need re-tensioning. If the door cannot be re-tensioned the torsion bar may need replacing.

  • Page 28: Replacing The Torsion Bar

    SKOPE B Series (R290) Replacing the When the door tension can no longer be adjusted, replace the torsion bar. Torsion Bar Procedure 19: To replace the torsion bar 1. Remove the door from the cabinet (see page 25), and remove the three screws holding the bottom hinge end cap.
  • Page 29 SKOPE B Series (R290) Procedure 20: To reverse the hinging 1. Remove the door from the cabinet (see page 25). 2. Remove the gasket from the hinge side of the door (see page 24) (you do not need to remove the entire gasket) and check for screws in the gasket channel.

  • Page 30: Refrigeration System

    Refrigeration System Before Overview Servicing Ensure you have read and understood this manual before starting any servicing. Important • SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. Replacement Procedures Service Manual CCEP...
  • Page 31 Check all components including the electronic controller and electrical systems. Ensure your work area is well ventilated. IMPORTANT Use only dedicated hydrocarbon SKOPE OEM spare parts. DO NOT use alternative parts. For safety compliance, use only SKOPE-supplied components specified for the appliance.

  • Page 32: On-Site Work

    The refrigeration cassette is a bottom-mounted, electronically controlled, removable cassette. Cassette For safety and compliance, only repair the cassette with SKOPE-supplied parts made Assembly specifically for this appliance. Other parts may appear to be suitable, but may not be approved or safe for use in an appliance with hydrocarbon refrigerant.

  • Page 33: Cassette Electrics Box Assembly

    SKOPE B Series (R290) Evaporator fan Cassette rating/ serial number label Condenser coil Electronic Evaporator tub controller Cassette Compressor electrics box Evaporator coil Drain pipe Condenser fan Cassette The cassette electrics box assembly contains the electronic controller, the mains supply Electrics Box socket, and panel mount socket connectors.

  • Page 34: Cassette Cover

    The fan blade, fan motor and mounting brackets can then be replaced. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, and correct alignment and refrigeration performance.

  • Page 35: Evaporator Fan

    (complete with fan motor and fan blade) can be lifted off the evaporator tub once the refrigeration cassette cover has been removed. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the specified part to ensure safety, and correct alignment and refrigeration performance.
  • Page 36 SKOPE B Series (R290) Evaporator shroud Fan motor Mounting bracket Evaporator tub Procedure 27: To replace the fan blade 1. Unplug the cabinet from the mains power supply and remove the refrigeration cassette (see page 38). 2. Remove the screw and washer from the centre of the fan blade, and lift the blade from the motor.

  • Page 37: Compressor

    SKOPE B Series (R290) Compressor The cassette is designed for use only with the specified compressor. If the compressor must be replaced, ensure that the SKOPE specified compressor is used as a replacement. Do not use other compressors within this refrigeration cassette. IMPORTANT Replace the compressor with the same SKOPE OEM part.

  • Page 38: Cassette Removal

    SKOPE B Series (R290) Cassette Follow the steps below to remove the refrigeration cassette. Removal Procedure 29: To remove the refrigeration cassette 1. Disconnect the cabinet from the mains power supply (see page 22). 2. Remove the electrics panel cover and unplug all plugs from the electrics panel.

  • Page 39: Electronic Controller

    SKOPE B Series (R290) Procedure 30: Refrigeration system diagnostic test (continued) 5. Use the relevant table below (depending on cassette) as a guide to determine if the system charge is correct. • A system with the correct refrigerant charge will frost back to the compressor.

  • Page 40: Electronic Controller Location

    SKOPE B Series (R290) Use needle nose pliers to unlock and gently remove the terminals. Electronic The electronic controller is located within the cassette electrics box assembly, which is Controller attached to the front of the refrigeration cassette. Location Replacing the...

  • Page 41: Door Switch

    SKOPE B Series (R290) Procedure 31: To access and replace the controller (continued) 6. Fit the new electronic controller. PIR sensor Door Evaporator switch/es Condenser probe Control probe probe GNYE GNYE GNYE GNYE GNYE GNYE Lights Mains supply Element Condenser...

  • Page 42: Pir Sensor

    SKOPE B Series (R290) Procedure 32: To remove the door switch (continued) 4. Trace the door switch cable back to the interior Screws wall, and remove the wall grommet. Door switch 5. Pull the inline connector plug and socket through the hole, and disconnect the door switch cable plug from the socket.

  • Page 43: Control Probe

    SKOPE B Series (R290) Control Probe The control probe is cable-tied to a bracket on the evaporator (see the image below). Evaporator shroud Control probe Procedure 34: To replace the control probe 1. Remove the evaporator shroud (see “Evaporator Fan” on page 35).

  • Page 44: Condenser Probe

    SKOPE B Series (R290) Procedure 35: To replace the evaporator probe 1. Unplug the cabinet from the power supply and remove the refrigeration cassette. 2. Remove the electrics box cover, detach the electrics box, unscrew the four fixing screws from the side of the cassette cover and lift the cover from the cassette.

  • Page 45: Wiring

    SKOPE B Series (R290) 5 Wiring Model: B600N-3 Series GNYE GNYE GNYE GNYE Surge Protector / EMI Filter Surge Protector / EMI Filter T1-1 T1-1 T1-2 T1-2 P1-L S1-L P1-L S1-L S1-N P1-N S1-N P1-N Appliance Appliance P13 S13 P13 S13...

  • Page 46: Model: B1200N-3 Series

    SKOPE B Series (R290) Model: B1200N-3 Series GNYE GNYE GNYE GNYE Surge Protector / EMI Filter Surge Protector / EMI Filter P1-L S1-L P1-L S1-L T1-1 T1-1 T1-2 T1-2 S1-N P1-N S1-N P1-N Appliance Appliance P15 S15 P15 S15 Sensor...

  • Page 47: Spare Parts

    SKOPE B Series (R290) 6 Spare Parts Cabinet Assembly B600N-3 (Side Lighting) Table 19: Parts – Cabinet B600N-3 (side lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Door assembly HB0070833036 120086206 Cabinet top lock bracket HB0070109268A 120081651 Top hinge assembly –...
  • Page 48 SKOPE B Series (R290) Table 19: Parts – Cabinet B600N-3 (side lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Bottom solid shelf HB0070109270A 120085832 12 Light power supply ELZ11887 120086174 Side light assembly HB0070208596 120086221...

  • Page 49: B600N-3U (Shelf Lighting)

    SKOPE B Series (R290) B600N-3U (Shelf Lighting) Table 20: Parts – Cabinet B600N-3U (shelf lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Door assembly HB0070833036 120086206 Cabinet top lock bracket HB0070109268A 120081651 Top hinge assembly – right hand...
  • Page 50 SKOPE B Series (R290) Table 20: Parts – Cabinet B600N-3U (shelf lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. 17 Light loom cover HB0070201457B 120081803 18 Shelf light loom FLX11805 120086218 19 Front castor – lockable...

  • Page 51: B600N-3W (Side Lighting)

    SKOPE B Series (R290) B600N-3W (Side Lighting) Table 21: Parts – Cabinet B600N-3W (side lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Cabinet top lock bracket HB0070109268A 120081651 Top hinge assembly – right hand HB0070111618A 120086225...
  • Page 52 SKOPE B Series (R290) Table 21: Parts – Cabinet B600N-3W (side lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. 16 End cap – left hand HB0070201463 120078429 17 Front kick panel stop HB0070203535 120084245 Mains box assembly...

  • Page 53: B1200N-3 (Side Lighting)

    SKOPE B Series (R290) B1200N-3 (Side Lighting) Table 22: Parts – Cabinet B1200N-3 (side lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Door assembly – left hand HB0070833744 120086243 Top hinge assembly – left hand HB0070111617A...
  • Page 54 SKOPE B Series (R290) Table 22: Parts – Cabinet B1200N-3 (side lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. 15 Bottom solid shelf HB0070108452C 120073405 16 Light power supply ELZ11806 120086209 Side light assembly HB0070208596...

  • Page 55: B1200N-3U (Shelf Lighting)

    SKOPE B Series (R290) B1200N-3U (Shelf Lighting) Table 23: Parts – Cabinet B1200N-3U (shelf lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Door assembly – left hand HB0070833744 120086243 Top hinge assembly – left hand HB0070111617A...
  • Page 56 SKOPE B Series (R290) Table 23: Parts – Cabinet B1200N-3U (shelf lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. 18 Shelf matting kit CCEP source – MFT 19 B1200N wire shelf HB0070114865 20 Bottom solid shelf...

  • Page 57: B1200N-3W (Side Lighting)

    SKOPE B Series (R290) B1200N-3W (Side Lighting) Table 24: Parts – Cabinet B1200N-3W (side lighting) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Cabinet top lock bracket HB0070109268A 120081651 Top hinge assembly – right hand HB0070111618A 120086225 Top hinge assembly –...
  • Page 58 SKOPE B Series (R290) Table 24: Parts – Cabinet B1200N-3W (side lighting) (continued) Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. 16 Front kick panel end cap – top left hand HB0070208618 120086245 17 End cap – right hand...

  • Page 59: Glass Door Assembly

    SKOPE B Series (R290) Glass Door Assembly Spare Parts Service Manual CCEP...
  • Page 60 SKOPE B Series (R290) Table 25: Parts – Glass door B600F-3 and B600F-3U Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Door assembly – right hand HB0070833036 120086206 Magnetic gasket HB0070204885 120076587 Handle end cap – top...

  • Page 61: Sign Assembly

    SKOPE B Series (R290) Sign Assembly Table 27: Parts – Sign B600F-3 and B600F-3U Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Sign assembly (excluding LED tube) HB0070833102A 120086212 Sign cover HB0070109119 120086239 End cap – left hand...

  • Page 62: Cassette Assembly

    SKOPE B Series (R290) Cassette Assembly B600N Spare Parts Service Manual CCEP...
  • Page 63 SKOPE B Series (R290) Table 29: Parts – Cassette B600N Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Refrigeration cassette assembly HB0070833099 120086178 Cassette plastic top cover HB0070203470G 120086211 Cassette gasket seal HB0070201441 120075985 Cassette mesh grille...

  • Page 64: B1200N

    SKOPE B Series (R290) B1200N Spare Parts Service Manual CCEP...
  • Page 65 SKOPE B Series (R290) Table 30: Parts – Cassette B1200N Item Description SKOPE Part No. CCEP-AU Part No. CCEP-NZ Part No. Refrigeration cassette assembly HB0070834038 120086769 Cassette plastic top cover HB0070201535G 120086255 Cassette gasket seal HB0070201441 120075985 Cassette mesh grille...

  • Page 66: Maintenance

    SKOPE B Series (R290) 7 Maintenance Cleaning Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. As with any maintenance, ensure the cabinet is disconnected from the power supply before cleaning.

  • Page 67: Troubleshooting

    SKOPE B Series (R290) 8 Troubleshooting Electronic Controller Alarms signal unexpected operational changes in the cabinet. When an alarm is activated, use the electronic controller app to assist with fault diagnosis and service as necessary. See page 16 for information.
  • Page 68 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...

This manual is also suitable for:

B600n-3B600-3uB600-3wB1200n-3B1200n-3uB1200n-3w
