Summary of Contents for Skope ReFlex RF6.UBR.1.SD

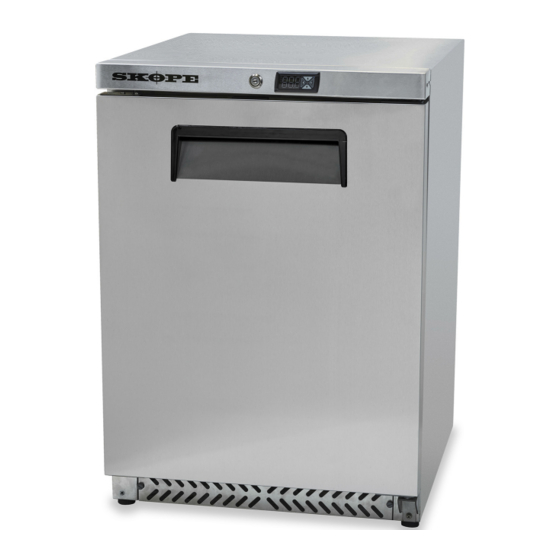

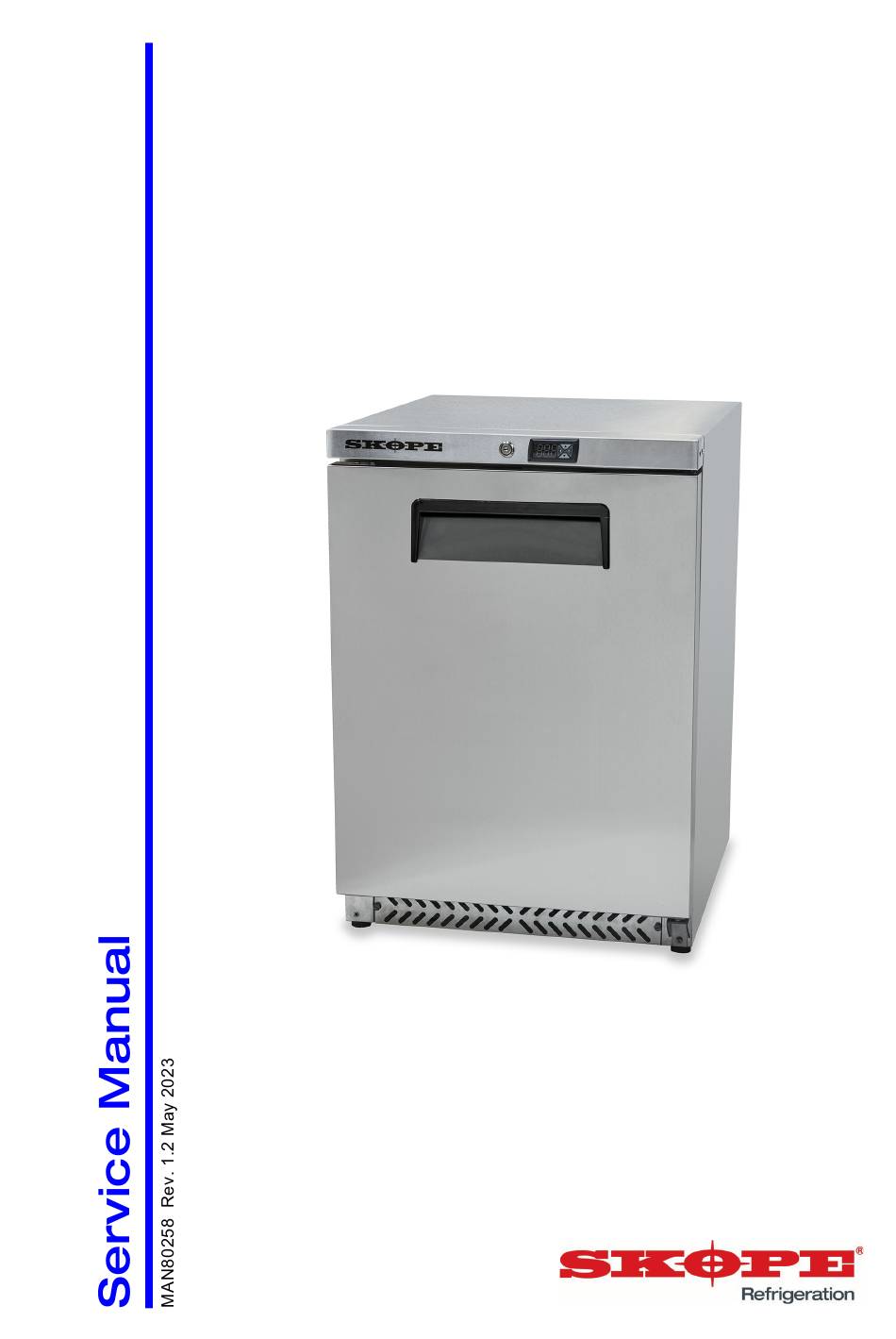

- Page 1 ReFlex 1-Door Underbench SKOPE Fridge and Freezer Hydrocarbon...
- Page 2 E-mail: skope@skope.com Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after its state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
SCS Connect Track App ....... . 10 SKOPE Connect App ........10 Controller Faceplate . - Page 4 Refrigeration System........35 SKOPE Reflex 1-Door Underbench Fridge and Freezer...
-
Page 5: Servicing Hydrocarbon
Special service requirements are needed, as hydrocarbon refrigerants are flammable. Safety hazards The main hydrocarbon safety hazards are: • Flammable refrigerant. • Venting of hydrocarbon and compressor oil. • Asphyxiation. SKOPE does not recommend performing hazardous activities on the refrigeration system. Servicing Hydrocarbon Service Manual... -
Page 6: Skope Hc Service Requirements
SKOPE Reflex 1-Door Underbench Fridge and Freezer SKOPE HC Service Requirements Servicing must only be performed by Approved SKOPE Service Technicians, and must meet all requirements in the SKOPE Hydrocarbon Service Policy (available from SKOPE), including the following: Hydrocarbon work – SKOPE Service Policy It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy... -
Page 7: Specifications
SKOPE Reflex 1-Door Underbench Fridge and Freezer 2 Specifications Models This service manual is applicable to the SKOPE ReFlex 1-door Underbench models listed in the table below. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for specifications. -
Page 8: Installation
SKOPE Reflex 1-Door Underbench Fridge and Freezer 3 Installation Installation Guidelines When installing this cabinet, ensure you consider and meet the installation guidelines below. Ventilation Surface Door Opening Climate Class Ensure all ventilation The installation surface Allow adequate space The cabinet must be installed... -
Page 9: Shelves
SKOPE Reflex 1-Door Underbench Fridge and Freezer Shelves The upper shelf is held in place with four shelf clips, which clip into the shelf support strips. The bottom shelf has integrated runners that sit on the cabinet floor. You can position the shelf clips at different heights to suit various product. -
Page 10: Electronic Controller
See “SCS Connect Field App and Track App” on page 12 for information on setting up and using the app. SCS Connect The Wellington Drive Track app for mobile devices transfers data from SKOPE equipment that Track App utilise the SCS Connect controller to a cloud based server. -
Page 11: Controller Faceplate
SKOPE models. Service Mode The service mode can be run using the controller faceplate, but SKOPE strongly recommends using the SCS Connect Field app. You will need a 9-digit PIN to enter the service mode via the controller. If you don’t have one, contact SKOPE Customer Services to request a PIN. -
Page 12: Scs Connect Field App And Track App
Follow the procedures below to install and set up the app, and connect to a controller. Note: The SCS Connect Field app and Track app are separate from the SKOPE-connect app. Procedure 1: To install the SCS Connect Field app 1. -
Page 13: App Categories
2. Enter your unique Activation Code and press “ACTIVATE” (the same code as used for SCS Connect Field app). The activation code is provided by SKOPE Customer Services. 3. Respond to any dialogue boxes that appear and the app should be ready to use. - Page 14 SKOPE Reflex 1-Door Underbench Fridge and Freezer Home screen The home screen shows a graphical representation of the current state of the cabinet being controlled. Output control Provides control of the controller input sensors and switches, and output relays. Edit parameters Provides access and editing of individual controller parameters.
-
Page 15: Faults And Alarms
Refer to the tables below for faults and alarm descriptions and possible causes and actions. The service tech type column refers to the service tech skill level required to complete a task. Refer to the SKOPE HC Service Policy (available from SKOPE) for service tech type details. Table 4: Faults... - Page 16 SKOPE Reflex 1-Door Underbench Fridge and Freezer Table 5: Alarms Service tech Code Description Possible root cause type Door left open. • Door not self closing (torsion fault) The door has been open for several minutes. Will revert to 1, 2, 3, 4 •...
- Page 17 SKOPE Reflex 1-Door Underbench Fridge and Freezer Table 5: Alarms (continued) Service tech Code Description Possible root cause type • Condenser blocked • Door installation or ventilation • Cabinet or refrigeration cartridge gasket seals leaking • Door not self-closing or gasket leaking...
-
Page 18: Notes
SKOPE Reflex 1-Door Underbench Fridge and Freezer Notes Electronic Controller Service Manual... -
Page 19: Wiring
SKOPE Reflex 1-Door Underbench Fridge and Freezer 5 Wiring ReFlex Underbench Fridge (RF6.UBR.1.SD) 1-door Wire colours Black Brown Orange Green Blue Grey White Wiring Service Manual... -
Page 20: Reflex 1-Door Underbench Freezer (Rf6.Ubf.1.Sd)
SKOPE Reflex 1-Door Underbench Fridge and Freezer ReFlex Underbench Freezer (RF6.UBF.1.SD) 1-door Wire colours Black Brown Orange Green Blue Grey White Wiring Service Manual... -
Page 21: Replacement Procedures
SKOPE Reflex 1-Door Underbench Fridge and Freezer 6 Replacement Procedures Doors Alignment If a door is out of alignment, you can realign it. Adjustment Procedure 4: To realign a door 1. Loosen the bottom hinge bracket fixing screws. 2. Move the door as required. -
Page 22: Removing And Refitting The Door
SKOPE Reflex 1-Door Underbench Fridge and Freezer Procedure 6: To remove the top hinge 1. Unplug the cabinet from the power supply, and remove the bottom hinge and door (see Procedure 6 above). 2. Unscrew and remove the top cover (with the controller attached) (2 ×... -
Page 23: Cabinet Feet And Rollers
SKOPE Reflex 1-Door Underbench Fridge and Freezer Procedure 9: To reverse the hinge 1. Unplug the cabinet from the mains power supply. 2. Unscrew the bottom hinge - cabinet (3 × screws), and lower the door off the cabinet. Remove the bottom hinge - cabinet from the bottom of the door and keep it for refitting later. -
Page 24: Emi Filter (Freezer)
The EMI filter is located above the condenser coil. Refrigeration System Before Overview Servicing Ensure you have read and understood this manual before starting any servicing. Important • SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. Replacement Procedures Service Manual... - Page 25 Check all components including the electronic controller and electrical systems. Ensure your work area is well ventilated. IMPORTANT Use only dedicated hydrocarbon SKOPE OEM spare parts. DO NOT use alternative parts. For safety compliance, use only SKOPE-supplied components specified for the appliance.
-
Page 26: On-Site Work
SKOPE Reflex 1-Door Underbench Fridge and Freezer • Must have no ignition sources, nor any areas where the gas may pool. • Must be able to transport swap units. • Should carry minimum SKOPE hydrocarbon service parts. On-site Work The service technician must have required knowledge, skills, qualifications, and tools before beginning any on-site work on the refrigeration sealed system. -
Page 27: Condenser Assembly
SKOPE Reflex 1-Door Underbench Fridge and Freezer Evaporator shroud and fan Evaporator plate Freezer Freezer evaporator pipes are foamed into the left, top and right interior walls. Freezers are not fitted with an evaporator fan. Condenser The condenser coil is attached to the rear of the cabinet. The condenser coil should be Assembly brushed regularly to remove any dust build up. -
Page 28: Electronic Controller
SKOPE Reflex 1-Door Underbench Fridge and Freezer Electronic Controller Controller The electronic controller is located on the top cover at the front of the cabinet. Location Procedure 10: To access and remove the controller 1. Unplug the cabinet from the mains power supply. -
Page 29: Control Probe
The service tech must link to the controller to the cabinet serial number in the SCS Connect Field app. • General Market: The owner must set up SKOPE-connect (if in use). Control Probe The control probe is located at the back of the cabinet interior. Procedure 12: To replace the control probe 1. -
Page 30: Spare Parts
SKOPE Reflex 1-Door Underbench Fridge and Freezer 7 Spare Parts ReFlex 1-door Underbench Fridge (RF6.UBR.1.SD) Spare Parts Service Manual... - Page 31 SKOPE Reflex 1-Door Underbench Fridge and Freezer Table 6: Parts – ReFlex 1-door Underbench Freezer (RF6.UBF.1.SD) No. Description Part number Foamed cabinet body SKC-0-000-1077-0 Door SKC-0-000-1082-0 Door gasket SKC-2-110-0433-0 Top door bush SKC-2-110-0353-0 Top hinge SKC-2-006-0493-0 Door lock tab SKC-2-006-1076-0...
-
Page 32: Reflex 1-Door Underbench Freezer (Rf6.Ubf.1.Sd)
SKOPE Reflex 1-Door Underbench Fridge and Freezer ReFlex 1-Door Underbench Freezer (RF6.UBF.1.SD) Spare Parts Service Manual... - Page 33 SKOPE Reflex 1-Door Underbench Fridge and Freezer Table 7: Parts – ReFlex 1-Door Underbench Freezer (RF6.UBF.1.SD) No. Description Part No. Foamed cabinet body SKC-0-000-1084-0 Door SKC-0-000-1082-0 Door gasket SKC-2-110-0433-0 Top door bush SKC-2-110-0353-0 Top hinge SKC-2-006-0493-0 Door lock tab SKC-2-006-1076-0...
-
Page 34: Routine Cleaning
Take care to keep moisture away from electrical parts. The condenser coil is located on the back of the cabinet and must be kept clean. SKOPE strongly recommends the condenser coil is brushed monthly to remove dust. -
Page 35: Troubleshooting And Diagnostics
SKOPE Reflex 1-Door Underbench Fridge and Freezer 9 Troubleshooting and Diagnostics Electronic Controller Alarms signal unexpected operational changes in the cabinet or system. When an alarm is activated, use the electronic controller app to help diagnose faults, then service as necessary. - Page 36 SKOPE Reflex 1-Door Underbench Fridge and Freezer Refrigeration System The following workshop test is useful for diagnosing if a system is short of gas. Perform the test before opening the refrigeration system. It is useful to have a correctly operating refrigeration cartridge running beside the cartridge being serviced to compare behaviour.
- Page 37 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
