Summary of Contents for Skope HB260

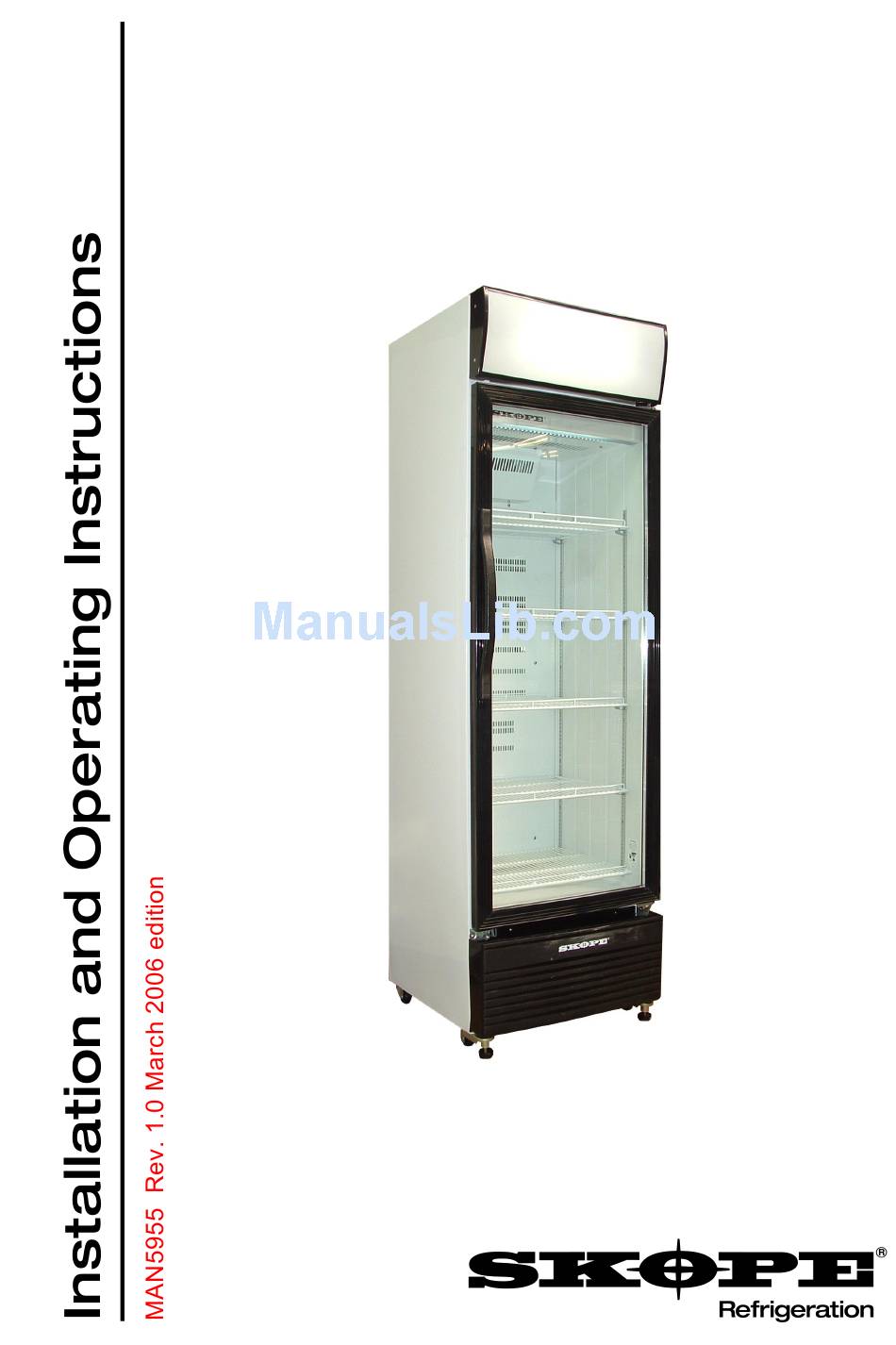

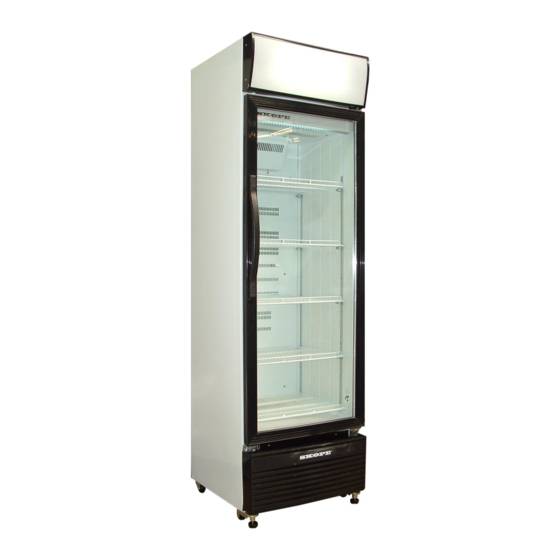

- Page 1 HB260/HB400 SKOPE Single Door Vertical Cooler...
-
Page 3: Contact Addresses
CONTACT ADDRESSES HB260/HB400 SKOPE Single Door Vertical Cooler New Zealand SKOPE INDUSTRIES LIMITED PO Box 1091, Christchurch New Zealand Freephone: 0800 947 5673 Fax: (03) 983 3896 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Australia SKOPE AUSTRALIA PTY LTD A.C.N. 000 384 270 PO Box 7543, Baulkham Hills B.C. - Page 4 HB260/HB400 SKOPE Single Door Vertical Cooler Installation and Operating Instructions MAN5955 Rev. 1.0 March 2006 edition. Copyright © 2006 SKOPE Industries Limited. All rights reserved. SKOPE Industries Limited reserve the right to alter specifications without notice. is a registered trade mark of SKOPE Industries Limited.
-
Page 5: Table Of Contents
Servicing ........16 HB260/HB400... -
Page 6: Installation
Ensure adequate ventilation of the refrigeration system. Do NOT cover the grilles or block the entry or exhaust of airflow by placing objects up against the refrigeration unit. HB260/HB400 SKOPE Single Door Vertical Cooler... - Page 7 Operation should be strictly in accordance with the warning material. The content with this ‘Forbid’ symbol is operation that is absolutely forbidden, otherwise it may cause damage to equipment or to user’s personal safety. HB260/HB400 SKOPE Single Door Vertical Cooler...
-
Page 8: Positioning Of Machine
Never store cardboard cartons or other items in front of the refrigeration unit. The ventilation slots in the front and rear of the cabinet must be kept clear at all times. HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 9: Before Operating
After moving the cooler, allow the cabinet to stand for at least 30 minutes before connecting to the power supply. Connect the cabinet to the mains power supply and check operation of the refrigeration unit and cabinet lighting. HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 10: Operation
The sign light and cabinet interior light will both go on when the cabinet is plugged in, and will stay on permanently. The fluorescent lights will require a period of time to stabilise following initial start up. HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 11: Loading
• Do not allow products to overhang the front or rear of the shelves, as this will effect air flow. Ensure the shelves are securely fitted, using all four of the supplied shelf clips on each shelf. HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 12: Temperature Adjustment
• To make colder - turn the controller knob clockwise. • To make warmer - turn the controller knob anti-clockwise. Note: Turning the knob to 0 will switch the refrigeration unit OFF. Refrigeration unit OFF Warmer settings Colder settings Normal temperature settings HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 13: Maintenance
Remove the light cover by pulling the cover forward and down. Revolve the fluorescent tube until the pin position allows withdrawal. Replace the fluorescent tube with SKOPE part no. ELL9386. HB260/HB400 SKOPE Single Door Vertical Cooler... - Page 14 Carefully remove the sign light cover from the cabinet. Revolve the fluorescent tube until the pin position allows withdrawal. Replace the fluorescent tube with SKOPE part no. ELL9386. HB260/HB400 SKOPE Single Door Vertical Cooler...
-
Page 15: Cleaning
To clean the condenser, remove the intake filter from the rear of the cabinet and use a soft brush to clean the filter and the fins of the condenser coil. HB260/HB400 SKOPE Single Door Vertical Cooler... -
Page 16: Servicing
Remove the panel from the rear of the cabinet to access the rear fixing screw. The condensing unit base can now be partially pulled out from the cabinet. HB260/HB400 SKOPE Single Door Vertical Cooler...
