- Page 1 SKOPE PEGASUS PG Vertical Series Chillers and Freezers PG600VC PG1300VC...
-
Page 2: Table Of Contents
Troubleshooting......... 17 SKOPE Pegasus Vertical Series... -
Page 3: Models

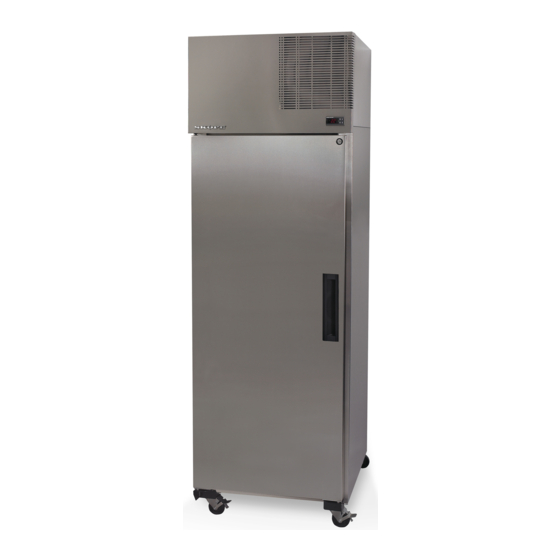

SKOPE Pegasus Vertical Series Models Chillers Refrigeration Operating temperature Model Part No. Doors unit range PG600VC H11PV Integral PG1300VC H12PV Integral +1°C to +4°C up to 43°C ambient PG600VCr RH11PV Remote PG1300VCr RH12PV Remote Freezers Refrigeration Operating temperature Model Part No. -
Page 4: Installation
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Please contact SKOPE Customer Services for advice regarding disposal of this appliance. CAUTION Overloading the power supply could damage the appliance and product. -
Page 5: Locating The Cabinet
SKOPE Pegasus Vertical Series Locating the Cabinet Location When positioning the cabinet, avoid direct sunlight and warm draughts etc. The cabinet must NOT be situated where it is affected by warm or hot air from adjacent equipment, as this will compromise the airflow and performance of the chiller. -
Page 6: Ventilation
SKOPE Pegasus Vertical Series Ventilation For efficient operation of the chiller, it is essential that adequate ventilation be provided above the refrigeration unit. Never store cardboard cartons or other items on top of the refrigeration unit. When positioning the cabinet, a gap of at least 200mm must be left above the refrigeration unit. -
Page 7: Positioning The Cabinet
SKOPE Pegasus Vertical Series Positioning the Cabinet The cabinet is supplied fitted with castors as standard and includes a set of adjustable height legs packed inside the cabinet. Alternatively the cabinet may be supplied ready for plinth mounting. Castors The adjustable castors can be used to adjust the cabinet height up or down through a 15mm range. -
Page 8: Shelving
SKOPE Pegasus Vertical Series Shelving The cabinet is supplied with two sets of shelves and shelf support brackets per door. The shelves can be positioned at different heights to suit various products. To fit the shelves 2. Unpack the shelving items from inside the cabinet. -
Page 9: Remote Cabinet Installation
Exceptions are possible due to model type, installation type, specification and/or customised product. SKOPE remote cabinets are also supplied with a seperate instruction sheet: Guidelines for SKOPE remote Refrigeration (PRN2362). Refer to this for generic SKOPE remote refrigeration installation guidelines. -
Page 10: Operation
To replace an LED tube see service instructions on page 15. HACCP If Hazard Analysis Critical Control (HACCP) functions are required, to monitor food storage temperature, please contact SKOPE to arrange for an authorised SKOPE service technician to setup the electronic controller. Operation User Manual... -
Page 11: Electronic Controller
SKOPE Pegasus Vertical Series Electronic Controller Item Icon Function Mute / program: Mutes the audible alarm (buzzer) and deactivates the alarm relay. To initiate program sets, press for 5 seconds. Up: To scroll settings up (in program mode). Set point: If pressed for more than 2 seconds displays and / or enables changing the temperature setpoint. -
Page 12: Controller Overview
LED will normally come on within 2 minutes. Temperature SKOPE do not recommend that the setpoint be changed unless it is Setpoint absolutely necessary, and then only by small increments at a time. Chillers The chiller temperature setpoint is factory set at 2.0°C. -
Page 13: Controller Alarms
4. To reset the ‘CHt’ alarm - unplug the cabinet from the temperature shutdown Flashing (manual reset) power supply for 1 minute, then reconnect to power supply. If alarm persists, contact SKOPE. Ambient probe fault (also flashes ‘rE’) Flashing Evaporator probe fault... -
Page 14: Servicing
SKOPE Pegasus Vertical Series Servicing Lighting Cabinet The cabinet interior is lit by an LED tube fitted behind the diffuser at the top Interior Lights of the cabinet (PG600), or behind the centre pillar (PG1300). See the table below for LED tube specifications. -
Page 15: Cleaning
Over time, dust may accumulate within the condenser that cannot be removed with a brush. if this occurs, contact SKOPE to arrange for a SKOPE Authorised Service Agent to clean the condenser with compressed air. -
Page 16: Troubleshooting
SKOPE Pegasus Vertical Series Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power supply. • Check mains power supply. operating and no controller display: 2. Cabinet lights • Failed LED light tube. • Replace LED light tube (see not operating: page 15). - Page 17 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
