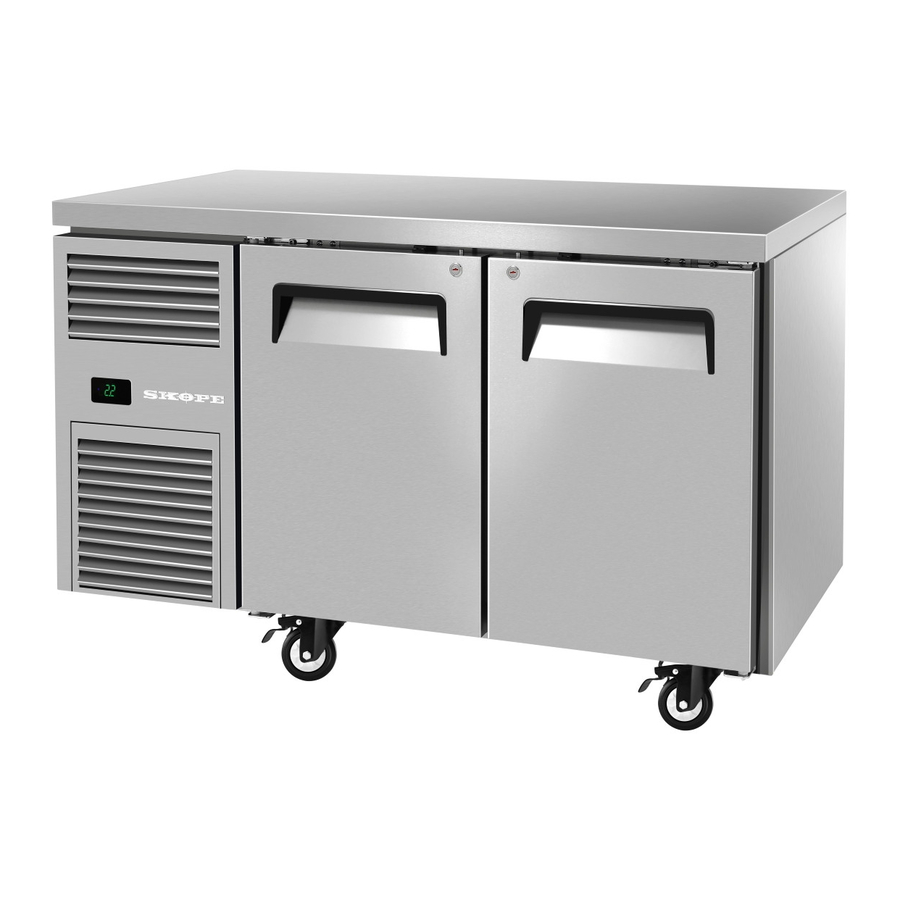

Summary of Contents for Skope ReFlex Underbench RF7.UBR.2.SD

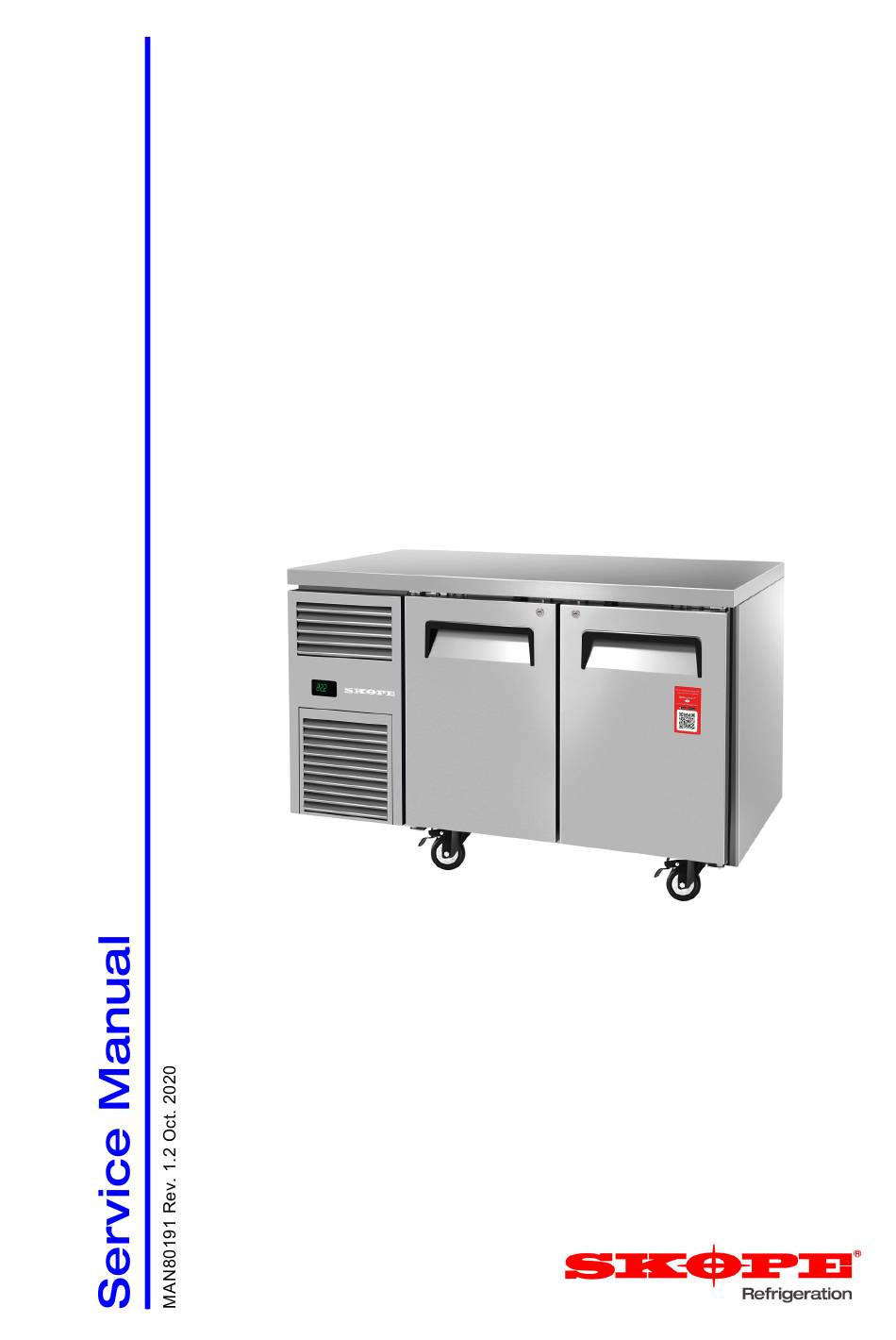

- Page 1 ReFlex Underbench SKOPE Fridge and Freezer Hydrocarbon...
- Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
SKOPE Connect App ........ - Page 4 Return Faulty Cartridge ....... . 59 SKOPE Reflex Underbench Fridge and Freezer...
-
Page 5: Servicing Hydrocarbon
Special service requirements are needed as hydrocarbon is a flammable refrigerant. Safety hazards The main hydrocarbon safety hazards are: Flammable refrigerant. Venting of hydrocarbon and compressor oil. Asphyxiation. SKOPE does NOT recommend performing hazardous activities on the refrigeration system. Servicing Hydrocarbon Service Manual... -
Page 6: Skope Hc Service Requirements
SKOPE HC Service Policy (available from SKOPE), including the following: Hydrocarbon work – SKOPE Service Policy It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy and by accepting a service work order they agree to the following (where applicable): MUST –... -
Page 7: Specifications
SKOPE Reflex Underbench Fridge and Freezer Specifications Models This service manual is applicable to the SKOPE ReFlex Underbench models detailed in the table below. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for specifications. Model... -
Page 8: Electronic Controller
SCS Connect The Wellington Drive Track app for mobile devices transfers data from Track App SKOPE equipment that utilise the SCS Connect controller to a cloud based server. The app works automatically in the background. When the app detects a controller, it connects via Bluetooth to receive data from the controller and send data to the cloud. -
Page 9: Controller Faceplate
( refer to Wellington Drive Technologies documentation for further information. Note: A 9 digit pin code is required to access service mode via the controller buttons. Contact SKOPE to receive your service mode pin code. Electronic Controller Service Manual... - Page 10 SKOPE Reflex Underbench Fridge and Freezer There are 5 main service mode categories when accessing and using service mode via the controller faceplate: Parameters Provides access and editing of individual controller parameters. It is not recommended that parameters are changed unless absolutely necessary.
-
Page 11: Scs Connect Field App And Track App
To connect to a cabinet 1. Ensure Bluetooth is enabled and you have internet access on your mobile device. 2. The app shows a list of nearby SKOPE cab- inets. The signal bars indicate how close each cabinet is. 3. Select the cabinet of interest and press ‘CONNECT’. - Page 12 Google Play Store or Apple App Store. 2. Enter your unique Activation Code and press ‘Activate’ (the same code as used for SCS Connect Field app). The activation code is provided by SKOPE Customer Services. 3. Respond to any dialogue boxes that appear and the app should be ready to use.
- Page 13 SKOPE Reflex Underbench Fridge and Freezer Load parameter file Allows reloading of model default parameter set or changing to new parameter set. See “Replacing the Controller” on page 51 for instructions. Note: Updated parameters are not applied until DISCONNECT has been selected from the menu (after loading new parameter set).
-
Page 14: Faults And Alarms
Refer to the tables below for faults and alarm descriptions and possible causes and actions. The service tech type column refers to the service tech skill level required to complete a task. Refer to the SKOPE HC Service Policy (available from SKOPE) for service tech type details. Faults (alarm indicator lit - no message displayed) - Page 15 SKOPE Reflex Underbench Fridge and Freezer Alarms Code Description Service tech Possible root cause type dor Door left open. 1, 2, 3, 4 - door not self closing (torsion fault) - door switch / circuit The door has been open for several minutes.
- Page 16 SKOPE Reflex Underbench Fridge and Freezer Code Description Service tech Possible root cause type NO swap cartridge required Evaporator fan over-current protection - faulty fan motor 2, 3, 4 The current supplied to the evaporator fan - fan blade fault (imbalance / debris / blockage) motor is too high.
-
Page 17: Notes
SKOPE Reflex Underbench Fridge and Freezer Notes Electronic Controller Service Manual... -
Page 18: Wiring
SKOPE Reflex Underbench Fridge and Freezer Wiring ReFlex Underbench Fridge and Freezer Wiring Service Manual... - Page 19 SKOPE Reflex Underbench Fridge and Freezer CAUTION Some connector colours vary depending on date of manufacture. Refer to Plug type/colour column in the table below for colour variations. After unplugging connectors, ALWAYS ensure reconnection has been undertaken correctly as operational faults may occur if incorrect. It is recommended to photograph wiring setup before unplugging for future reference.
-
Page 20: Spare Parts
SKOPE Reflex Underbench Fridge and Freezer Spare Parts Cabinet Assembly Spare Parts Service Manual... - Page 21 SKOPE Reflex Underbench Fridge and Freezer No. Description Part No. ✔ ✔ ✔ ✔ ✔ ✔ ✔ CASTOR-UNBRAKED KN-SXX11990 CASTOR-BRAKED KN-SXX11991 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ FOOT ADJUSTABLE UB KN-SXX12132 SHELF SET-2DR U/BENCH KN-WRK11995 ✔...
-
Page 22: Cabinet Drawer Assembly
SKOPE Reflex Underbench Fridge and Freezer Cabinet Drawer Assembly Spare Parts Service Manual... - Page 23 SKOPE Reflex Underbench Fridge and Freezer No. Description Part No. ✔ ✔ CASTOR-UNBRAKED KN-SXX11990 ✔ ✔ CASTOR-BRAKED KN-SXX11991 FOOT ADJUSTABLE UB KN-SXX12132 ✔ ✔ ✔ ✔ MAINS FLEX AUS/NZ UP 3M KN-FLX12138 DRAWER RAIL FRONT RH KN-SSY12240R ✔ ✔ DRAWER RAIL FRONT CENTRE KN-SSY12240C ✔...
-
Page 24: Cartridge Assembly
SKOPE Reflex Underbench Fridge and Freezer Cartridge Assembly Spare Parts Service Manual... - Page 25 SKOPE Reflex Underbench Fridge and Freezer Part No. Description UNIT FRAME KN-SXX12120 ✔ ✔ ✔ ✔ ✔ ✔ ✔ HANDLE UNIT UB KN-HAN12121 ✔ ✔ ✔ ✔ ✔ ✔ ✔ CONTROLLER MOUNTING PLATE KN-SXX12122 ✔ ✔ ✔ ✔ ✔ ✔...
-
Page 26: Installation
SKOPE Reflex Underbench Fridge and Freezer Installation Installation Guidelines When installing this cabinet, ensure the installation guidelines below are considered and met. Ventilation Surface Door Opening Climate Class The installation surface The cabinet must be Ensure all ventilation Allow adequate space... -
Page 27: Cleaning Before First Use
SKOPE Reflex Underbench Fridge and Freezer Cleaning Before First Use The cabinet interior and food contact surfaces such as the worktop must be thoroughly cleaned and sanitised before first use. Ensure the cabinet is unplugged from the power supply before cleaning, and use only standard stainless steel cleaners suitable for food preparation areas. -
Page 28: Troubleshooting And Diagnostics
SKOPE Reflex Underbench Fridge and Freezer Troubleshooting and Diagnostics Electronic Controller Alarms signal unexpected operational changes in the cabinet or cartridge. When an alarm is activated, use the electronic controller app to assist with fault diagnosis and service as necessary. See page 14 for information. - Page 29 SKOPE Reflex Underbench Fridge and Freezer • Product is too warm. • Frequent door opening. • Limit door openings. • Recently loaded • Allow time for the product to cool down. • Door not closing properly. • Check and clean door gasket.
-
Page 30: Refrigeration System
SKOPE Reflex Underbench Fridge and Freezer Refrigeration System The following diagnostic test is useful for workshop diagnosis of a short of gas situation. Perform the test before opening the refrigeration system. It is beneficial to have a correctly operating unit running beside the unit being serviced to compare behaviour. - Page 31 SKOPE Reflex Underbench Fridge and Freezer 8. Generally, a system with the correct refrigerant charge will frost back to the compressor. If the frost does not go back to the point shown there may be a capillary blockage or compressor fault. The point where the frost stops is affected by the ambient temperature.
-
Page 32: Replacement Procedures
Interior wiring loom Lighting components are all non serviceable items. If a component is faulty, it should be removed and a SKOPE OEM new replacement component fitted. Refer to the diagnostics table below to determine what component may be at fault, and the procedures over the next few pages for component replacement instructions. - Page 33 SKOPE Reflex Underbench Fridge and Freezer To replace an interior light component 1. Unplug the cabinet from the power supply. 2. Remove the shelves from either side of the light. Plug 3. Unplug the light. 4. Unscrew and replace the light.
-
Page 34: Doors
SKOPE Reflex Underbench Fridge and Freezer Doors Alignment If a door is out of alignment, realign it by loosening the top and/or bottom Adjustment hinge bracket fixing screws, move the door as required, and re-tighten the hinge bracket screws. Drawers... -
Page 35: Door Hinges
SKOPE Reflex Underbench Fridge and Freezer Door Hinges Each door is fitted with top and bottom hinges, and an additional self-closing mechanism which allows the door to self-close. The hinges and self-closing mechanism are replaceable. To remove the hinges 1. Remove the top hinge, washers and bush from the top of the door. -
Page 36: Castors And Legs
SKOPE Reflex Underbench Fridge and Freezer Castors and Legs The cabinet is supplied fitted with swivel castors. The front castors are lockable, the rear castors are free. A set of adjustable height legs is also included in the cabinet. The castors can be removed for plinth mounting or for fitting the height adjustable legs. -
Page 37: Refrigeration Cartridge
Do NOT open the refrigeration system. Check all components such as the electronic controller and electrical systems. If a sealed system fault is suspected, the system must not be opened; it must be sent to a SKOPE approved service depot for repair. -
Page 38: Gas Detector
Experience and qualifications suitable for work on a flammable refrigeration system. Performs no unsafe activity. Fully complies with SKOPE HC service policy. Minimum tools and equipment Hydrocarbon gas detector Safety signage - suitable to create a safe work zone 1.5m around the ... -
Page 39: Removing The Cartridge
SKOPE Reflex Underbench Fridge and Freezer Removing the Note: The electronic controller and electrics panel (including light power Cartridge supply) is matched to the cabinet, and must be left with the cabinet when exchanging the cartridge. Replacement spare part cartridges are not supplied with controller and electrics panel. - Page 40 SKOPE Reflex Underbench Fridge and Freezer 9. Reverse the steps above to refit the cartridge. When refitting, ensure: IMPORTANT: Ensure plug reconnection is undertaken correctly as operational faults may occur if incorrect. Refer to relevant image on page 42, wiring diagram on page 18, and previous recommended photograph for reference.
- Page 41 SKOPE Reflex Underbench Fridge and Freezer 3. Cartridge screws 2. Front panel screws 1. Power cord and cable tie 4. Electrical cables and Cartridge cable ties Front panel 7. Detach electrics panel and electronic controller from cartridge (5 × screws).
- Page 42 SKOPE Reflex Underbench Fridge and Freezer 6. Electrics panel and loom electrical connections. Unplug as pictured Manufactured before Feb. 2020 Due to the use of limited colour connectors, 2 × red 4-way and 2 × yellow 4-way connectors have been used.
-
Page 43: Refrigeration Cartridge Assembly
Replacement spare part cartridges are not supplied with controller and electrics panel. For safety and compliance, only SKOPE supplied parts specifically for this appliance may be used for repairs. Other parts may appear suitable, but may not be approved or safe for use in an appliance with hydrocarbon refrigerant. - Page 44 SKOPE Reflex Underbench Fridge and Freezer Cartridge The cartridge electrics panel (including light power supply) is matched to the Electrics Panel cabinet, and must be left with the cabinet when exchanging the cartridge. Replacement spare part cartridges are not supplied with an electrics panel.
-
Page 45: Condenser Fan
If the fan stops for any reason, check all connections to ensure no plugs have come loose. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, correct alignment, refrigeration performance, and compliance. -
Page 46: Evaporator Tub
SKOPE Reflex Underbench Fridge and Freezer To replace the fan motor (with correct SKOPE spare part only) 1. Remove the condenser fan assembly and the fan blade (see previous page). 2. Detach the fan motor from the fan mounting brackets by removing the four screws from the mounting bracket. -
Page 47: Evaporator Fan
The fan assembly is fixed to evaporator shroud with screws and metal bars. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the assembly is replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. -
Page 48: Compressor
SKOPE Reflex Underbench Fridge and Freezer Compressor The compressor is located at the back of the refrigeration cartridge. If the compressor is causing excessive noise, check the mountings to ensure there is no damage to the rubber or the washers, nuts and screws. - Page 49 SKOPE Reflex Underbench Fridge and Freezer 5. Fit the replacement element and rivet in place. Install the element cable following the same path as the original cable, secure with cable ties as necessary. 6. Reassemble and test. Defrost The element is fitted with 2 thermal fuses (one at each end of the evaporator Element Fuses coil).
-
Page 50: Electronic Controller
SKOPE Reflex Underbench Fridge and Freezer Electronic Controller The electronic controller and electrics panel (including light power supply) is matched to the cabinet, and must be left with the cabinet when exchanging the cartridge. Replacement spare part cartridges are not supplied with controller and electrics panel. -
Page 51: Replacing The Controller
12. Set up controller and cabinet links as required: Corporate The service tech must link to the controller to the cabinet serial number in the SCS Connect Field app. General Market The owner must set up SKOPE-connect (if in use). High voltage UW0100029 UW0100030 UW0300008... -
Page 52: Door Switch
SKOPE Reflex Underbench Fridge and Freezer Door Switch The cabinet is fitted with a door switch above each door, which tells the electronic controller when a door is opened. A small magnet on the top edge of the door activates the switch. -
Page 53: Evaporator Probe
SKOPE Reflex Underbench Fridge and Freezer Evaporator The evaporator probe is located within the evaporator coil. It controls the Probe refrigeration system defrost initiation and termination. If the evaporator probe fails, the defrost element thermal fuses may activate due to prolonged defrosting. Due to this, if the evaporator probe is replaced the resistance of the thermal fuses must be checked and fuses replaced if required (see “”... -
Page 54: Ambient Probe
SKOPE Reflex Underbench Fridge and Freezer Ambient Probe The ambient probe is located in front of the condenser coil. It monitors the temperature around the refrigeration cartridge. Note: The ambient probe is wired in series with the door switch. To replace the ambient probe 1. -
Page 55: Routine Cleaning
SKOPE Reflex Underbench Fridge and Freezer Routine Cleaning Drawers Where fitted, drawers should be removed for cleaning. Pull the drawer out of the cabinet, release latches at side of drawer as shown, and lift the drawer out at an angle. The drawer slider can also be removed by releasing the side catches as shown. -
Page 56: Condenser Coil
SKOPE Reflex Underbench Fridge and Freezer Condenser Coil The condenser coil must be kept clean. SKOPE strongly recommends monthly cleaning of the condenser coil and air filter. Do NOT use hard or sharp tools to clean the coil as these may cause damage. -
Page 57: On-Site Work Procedure
SKOPE Reflex Underbench Fridge and Freezer On-Site Work Procedure If a customer reports a ‘not cooling’ fault, and it has been established that the cabinet is not cool- ing, follow the procedures below when making the service visit. Swap Cartridge... -
Page 58: Return Faulty Cartridge
SKOPE Reflex Underbench Fridge and Freezer Return Faulty Cartridge Return faulty cartridge to service depot: Create a safe work area around faulty Is refrigeration cartridge. Area must be in open well system ventilated space. Ensure no hazards, considered to ignition sources or drains. - Page 59 SKOPE Industries Limited A.B.N. 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
