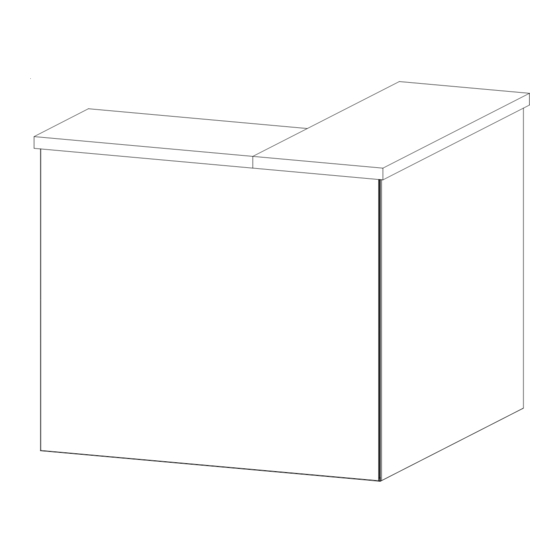

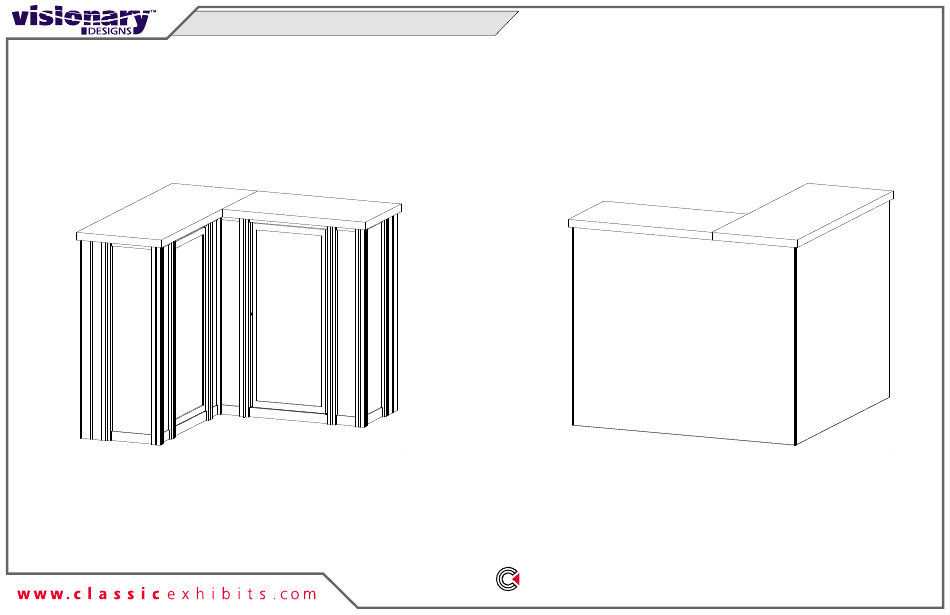

- Page 1 © 2023 Order #XXXXX MOD-1722 Backlit Counter BACK VIEW FRONT VIEW SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2023 Order #XXXXX CEI110 Frame Assembly Corner Connection Corner Bracket Assembly 1) Slide TWO-PIECE TS RV 2 L-bracket into Upper Interior Center Slot of extrusion so that two Horizontal set screws are inside groove. Tighten two set screws to secure. Upper Slide verticals over Horizontal...
- Page 4 © 2023 Order #XXXXX Case Packing Top View of Each Level 26,26A Shelf Counter Door 8,8A Shelf Infills Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 2...
- Page 5 © 2023 Order #XXXXX Case Packing Top View of Each Level 24 20 Graphics Counter Top Door Setup Hardware Shelf Supports Bracket w/21A Bracket w/21 Infills Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 2...
- Page 6 © 2023 Order #XXXXX Counter Assembly Item Qty. Description Steps: 39.5” S44 Vertical Extrusion 1) Assemble lower horizontals [7,8,9,10] between 39.5” S44 Vertical Extrusion verticals [1,2,3,4,5]. 39.5” S44 Vertical Extrusion 2) Slide Infills between verticals as shown. 39.5” S44 Vertical Extrusion 3) Attach upper horizontals [7A,8A,9A,10A], securing infills.
- Page 7 © 2023 Order #XXXXX Counter Attachments Item Qty. Description Z31 & Bracket Connection Frame to Assembly Attachment 11,11A 35.853”h Z33 Vertical Extrusion 38.752” TSP2 Vertical Extrusion CEI110 21,21A 3.193” Z31 Horizontal Extrusion 39.5” CEI110 Vertical Extrusion CEI110 23,23A 45.75” CEI110 Horizontal Extrusion 39.5”...
- Page 8 © 2023 Order #XXXXX Counter Attachments (cont’d) Steps: 1) Connect lighting power cords and attach transformers. See Light to Light Connection Light to Transformer Connection details. 2) Place shelves onto pins. See Shelf Pin detail. 3) Place counter top on top of assembed counter base. Counter Top Attachment detail.
