Summary of Contents for Classic Exhibits SEGUE DESIGNS MOD-1624

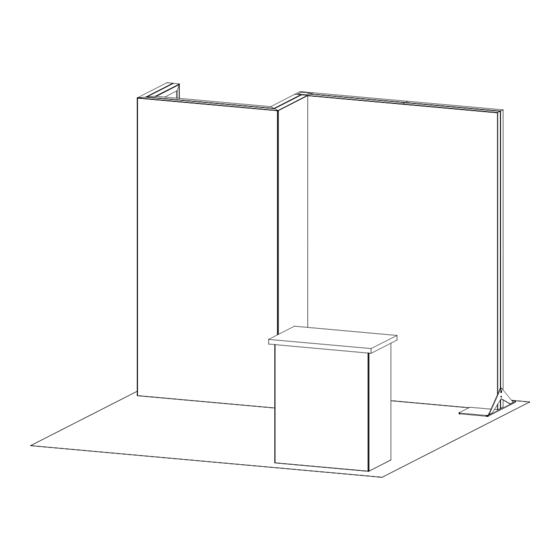

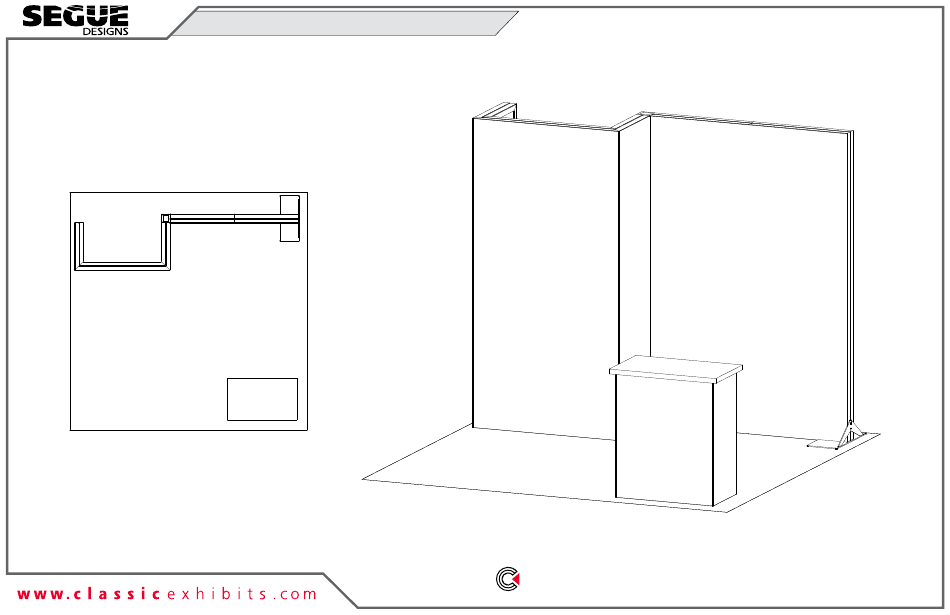

- Page 1 © 2023 Order #XXXXX MOD-1624 - 10’ x 10’ Display 10’ Plan View 10’ SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
- Page 7 © 2023 Order #XXXXX Bump-Out Assembly Item Qty. Description Steps: 95.252”h TSP2 Vertical Extrusion 1) Assemble Corner brackets & extrusions [1] through [8] as shown in Corner Assembly detail. 92.353”h GS310 Vertical Extrusion 2) Connect vertical [1] to horizontals [3,4] using corner connectors. Repeat step, 2.964”w Z140 Horizontal Extrusion attaching vertial [2] to horizontals [5,6].
- Page 8 © 2023 Order #XXXXX Lightbox Assembly Item Qty. Description Steps: 96”h CEI110 Vertical Extrusion Refer to the CEI110 Frame Assembly general information page. 96”h CEI110 Vertical Extrusion 32.5”w CEI110 Horizontal Extrusion 1) Assemble horizontals [11-12] & [13-14] together using 32.5”w CEI110 Horizontal Extrusion straight connectors.
- Page 9 © 2023 Order #XXXXX Lightbox Wiring Steps: 1) Connect power cords to Supernova lights as shown. Power Break Transformer Transformer Power Break FRONT ELEVATION VIEW Light to Light Attachment Light to Transformer Attachment Male Female Lights Power Transformer 144W / 6 Amp / 24V Step 3 of 8 Maximum of 7 lights per chain / 12 lights per Transformer...
- Page 10 © 2023 Order #XXXXX Connection to Post Item Qty. Description Steps: 4.5” x 4.5” x 96”h Corner Post 1) Connect bump-out assembly vertical [2] & lightbox vertical [9] to Post [A], using Bolt to T-Nut Connection as shown. When assembled Bolt to T-Nut Connection bolt...
- Page 11 © 2023 Order #XXXXX Attachments Steps: Refer to the SEG Installation general information page. 1) Apply SEG graphics to bump out assembly & lightbox frame as shown. 2) Apply SEG blocker to back of lightbox frame. S E G G r a p h Completed Assembly S E G l o c...
- Page 12 © 2023 Order #XXXXX MOD-1703 Counter Assembly Item Qty. Description Steps: 39.5”h CEI110 Vertical Extrusion 1) Attach vertical [1] to vertical [2]. See CEI110 to S40 Connection detail. 39.5”h S40 Vertical Extrusion Repeat step, attaching vertical [4] to vertical [3]. 39.5”h S40 Vertical Extrusion 2) Connect horizontals [5,6] between verticals [2,3].
- Page 13 © 2023 Order #XXXXX MOD-1703 Counter Assembly (cont’d) Item Qty. Description Steps: 38.752”h TSP2 Vertical Extrusion 1) Assemble horizontals [13,14] between verticals [11,12] inserting infill; 35.853”h GS310 Veritcal Extrusion Attach Brackets to top & bottom of horizontals [13,14] using bolts. 2.955”w Z140 Horizontal Extrusion Refer to Corner Assembly...
- Page 14 © 2023 Order #XXXXX MOD-1703 Counter Assembly (cont’d) Steps: 1) Attach power cords to Supernova lights. 2) Apply SEG graphics to assembled base. Refer to the SEG Installation general information page. 3) Place Shelf onto pins. See Shelf Pin detail. 4) Attach Counter Top to assembled base.
