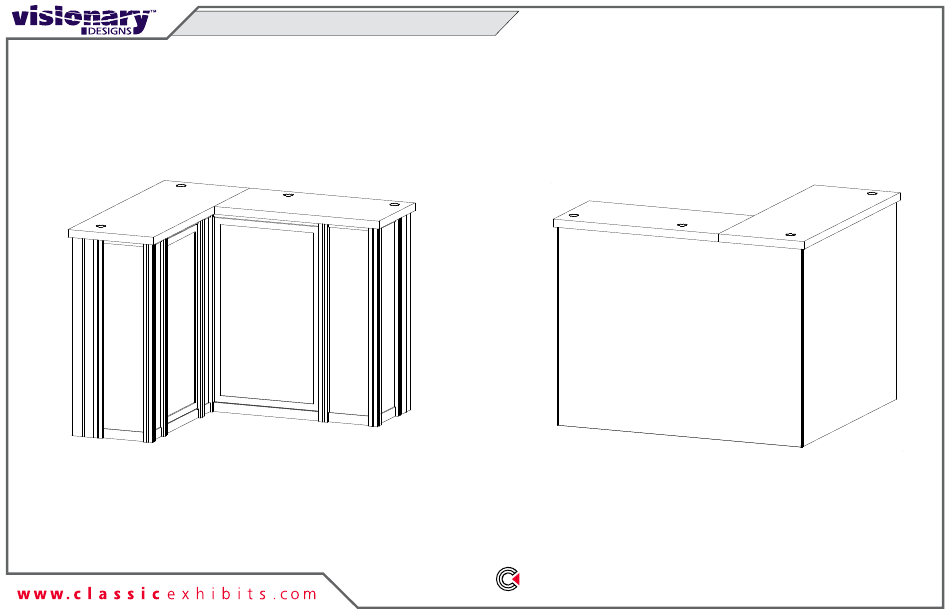

- Page 1 © 2023 Order #XXXXX MOD-1702 Backlit Counter BACK VIEW FRONT VIEW SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2023 Order #XXXXX CEI110 Frame Assembly Upper Horizontal Extrusion CEI110 Corner Connection: Corner Corner Connectors Connectors 1) Loosen knobs, then slide vertical extrusions onto corner connectors of lower horizontal extrusion. Adjust connectors if necessary to prevent gaps in connection. 2) Slide corner connectors of upper horizontal...
- Page 4 © 2023 Order #XXXXX Case Packing Top View of Each Level Shelf Counter Door Shelf Infills Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 2...
- Page 5 © 2023 Order #XXXXX Case Packing Top View of Each Level 24 20 Graphics Counter Top Door 14 15 Setup Hardware Shelf Supports Bracket w/21A Bracket w/21 Infills Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 2...
- Page 6 © 2023 Order #XXXXX Counter Assembly Item Qty. Description Steps: 39.5” S44 Vertical Extrusion 1) Assemble lower horizontals [7,8,9,10] between 39.5” S44 Vertical Extrusion verticals [1,2,3,4,5]. 39.5” S44 Vertical Extrusion 2) Slide Infills between verticals as shown. 39.5” S44 Vertical Extrusion 3) Attach upper horizontals [7A,8A,9A,10A], securing infills.
- Page 7 © 2023 Order #XXXXX Counter Attachments Item Qty. Description 11,11A 35.853”h Z33 Vertical Extrusion Frame to Assembly Attachment 38.752” TSP2 Vertical Extrusion Z31 & Bracket Connection 21,21A 3.193” Z31 Horizontal Extrusion 39.5” CEI110 Vertical Extrusion CEI110 23,23A 47.75” CEI110 Horizontal Extrusion CEI110 39.5”...
-
Page 8: Back View
© 2023 Order #XXXXX Counter Attachments (cont’d) Steps: 1) Connect lighting power cords and attach transformers. See Light to Light Connection Light to Transformer Connection details. 2) Place shelves onto pins. See Shelf Pin detail. 3) Install SEG graphics to front of assembled frames. SEG Graphic Installation detail.
