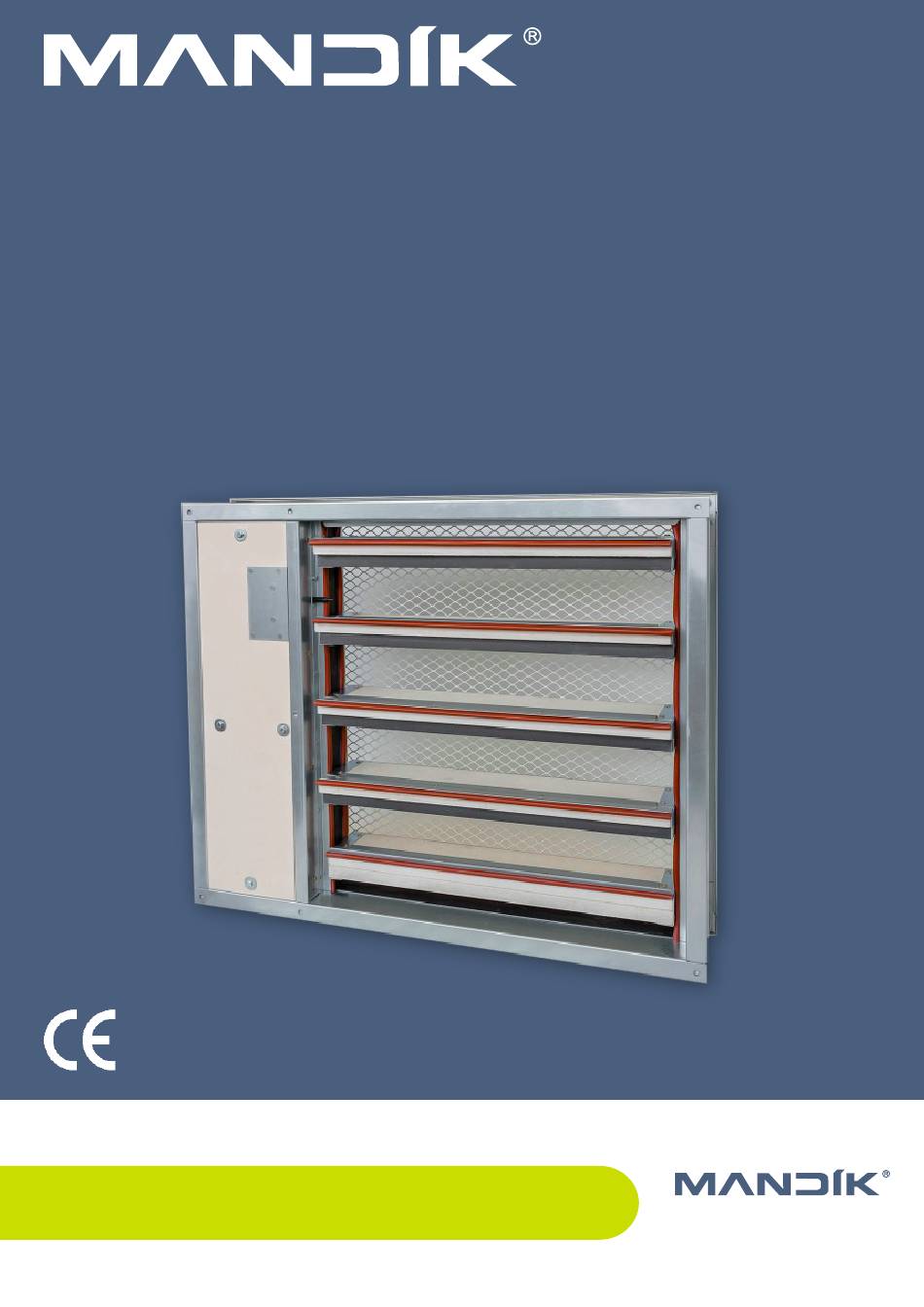

- Page 1 TPM 130/17 Version 2023-10-31 FDML Multi blade fire damper Technical Documentation Installation, Commissioning, Operation, Maintenance and Service Manual www.mandik.com MANDÍK, a. s. • Dobříšská 550 • 267 24 Hostomice • Česká republika • Tel.: +420 311 706 742 • E-Mail: mandik@mandik.cz...
-
Page 2: Table Of Contents
TPM 130/17 These technical specifications state a row of manufactured sizes and models of fire dampers FDML It is valid for production, designing, ordering, delivery, maintenance and operation. CONTENT I. GENERAL.....................................3 Description....................................3 II. DESIGN.......................................4 Design with manual control..............................4 III. DIMENSIONS...................................11 Technical parameters................................12... -
Page 3: General
The return spring of the actuator is actuated one fire segment to the other one. FDML multi blade fire when a thermoelectric activation device BAT is activated, dampers are in motorised design only with actuator and they... -
Page 4: Design
In case that the power supply is restored again (the blades ■ can be in any position), the actuator starts to rotate the damper blades back to the position "OPEN". Spring return actuator Thermoelectric activation device BAT Page 4 Fire damper - FDML Version 2023-10-31... - Page 5 1 m, 2 x 0,75 mm² (BFL 2xx-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFL 2xx-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Version 2023-10-31 Fire damper - FDML Page 5...
- Page 6 1 m, 2 x 0,75 mm² (BFN 2xx-T-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BFN 2xx-T-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Page 6 Fire damper - FDML Version 2023-10-31...
- Page 7 1 m, 2 x 0,75 mm² (BF 2xx-TN-ST) with 3-pin plug-in connectors - auxiliary switch cable 1 m, 6 x 0,75 mm² (BF 2xx-TN-ST) with 6-pin plug-in connectors duct outside temperature +72°C Response temperature thermal fuse duct inside temperature +72°C Version 2023-10-31 Fire damper - FDML Page 7...
- Page 8 Max. 95% RH, non-condensing Connection supply Cable 1 m, 2 x 0.5 mm², Betaflam cable heatresistant up to 145°C Duct inside temperature +72 (95/120/140)°C Response temperature thermal fuse Duct outside temperature +72 (95/120/140)°C Page 8 Fire damper - FDML Version 2023-10-31...
- Page 9 Voltage - no-load DC (max.) 43 V Degree of protection IP40 front panel / IP20 clamps Ambient temperature -20°C … +40°C Storage temperature -20°C … +60°C Dimensions 90 x 52 x 65 mm Weight 368 g Version 2023-10-31 Fire damper - FDML Page 9...
- Page 10 Cabel 1m, connected to terminals 1, 2 and 4 - motor Actuator connected on the terminals 2 and 5 - power supply device ZNP-10-24 Cabel 1m, connected to terminals 1, 2, 4 and 5 Page 10 Fire damper - FDML Version 2023-10-31...
-
Page 11: Dimensions
150** Connecting dimensions of nuts M6 400 < B ≤ 600 (one nut) B ≤ 400 (without nuts) B > 600 (two nuts) [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 1000 Version 2023-10-31 Fire damper - FDML Page 11... -
Page 12: Technical Parameters
0,1337 42,0 0,1748 40,9 0,1459 44,2 0,1908 42,8 0,1484 46,3 0,1940 1000 44,9 0,1606 1000 48,5 0,2099 * For design with ZNP-10-24 power supply, a weight of 0,4 kg must be added. Page 12 Fire damper - FDML Version 2023-10-31... - Page 13 0,2543 55,2 0,3255 50,6 0,2775 58,0 0,3552 54,7 0,2821 60,7 0,3612 1000 57,2 0,3053 1000 63,5 0,3909 * For design with ZNP-10-24 power supply, a weight of 0,4 kg must be added. Version 2023-10-31 Fire damper - FDML Page 13...
- Page 14 0,3694 64,5 0,4461 61,5 0,4031 67,7 0,4868 64,5 0,4098 71,0 0,4949 1000 67,4 0,4435 1000 74,2 0,5356 * For design with ZNP-10-24 power supply, a weight of 0,4 kg must be added. Page 14 Fire damper - FDML Version 2023-10-31...
- Page 15 43,2 0,2907 70,8 0,5283 48,3 0,3089 74,3 0,5765 51,5 0,3455 78,0 0,5861 53,6 0,3729 1000 81,5 0,6343 * For design with ZNP-10-24 power supply, a weight of 0,4 kg must be added. Version 2023-10-31 Fire damper - FDML Page 15...
-
Page 16: Installation
200 mm between dampers, according to EN 1366-2 ■ minimum distance 75 mm between damper and construction (wall/ceiling), according to EN 1366-2 ■ ≥ 75 ≥ 200 ≥ 200 ≥ 75 Page 16 Fire damper - FDML Version 2023-10-31... -
Page 17: Statement Of Installations
In solid wall construction Weichschott system EI 90 (v o) S ↔ Mortar or gypsum In gypsum wall construction Weichschott system EI 90 (h o) S In solid ceiling construction Mortar or gypsum ↔ Version 2023-10-31 Fire damper - FDML Page 17... -
Page 18: In Solid Wall Construction
Fire-resistant cover boards - only if one side of the damper is in line with the surface of the construction and the other side extends more than 25 mm from the construction - (Promatect-H...) min. thickness 15 mm - connect the boards together with screws Page 18 Fire damper - FDML Version 2023-10-31... - Page 19 6 Fire-resistant cover boards - only if one side of the damper is in line with the surface of the construction and the other side extends more than 25 mm from the construction - (Promatect-H...) min. thickness 15 mm - connect the boards together with screws Version 2023-10-31 Fire damper - FDML Page 19...
-
Page 20: In Gypsum Wall Construction
Fire-resistant cover boards - only if one side of the damper is in line with the surface of the construction and the other side extends more than 25 mm from the construction - (Promatect-H...) min. thickness 15 mm - connect the boards together with screws Page 20 Fire damper - FDML Version 2023-10-31... - Page 21 6 Fire-resistant cover boards - only if one side of the damper is in line with the surface of the construction and the other side extends more than 25 mm from the construction - (Promatect-H...) min. thickness 15 mm - connect the boards together with screws Version 2023-10-31 Fire damper - FDML Page 21...
-
Page 22: In Solid Ceiling Construction
* In case with connected duct and with forced air flow min. A+290 ** In case without connected duct with grilles on both max. A+490 sides and with natural air flow A+190 FDML Solid ceiling construction Mortar or gypsum Page 22 Fire damper - FDML Version 2023-10-31... -
Page 23: Examples Of Installation Situations
Damper with duct Damper with grille Damper with and grille on the wall inside the wall grille on the wall Frame to the wall Duct Cover Cover grille grille >150 >150 >150 Version 2023-10-31 Fire damper - FDML Page 23... -
Page 24: Examples Of Fixing Fdml
TPM 130/17 Examples of fixing FDML In solid wall construction - mortar or gypsum/Weichschott system min. 30 min. 30 In gypsum wall construction - mortar or gypsum/Weichschott system min. 30 min. 30 min. 3 B+30 Screw two L-profiles to the damper using M6x20 screws + washers and fix the L-profiles to the wall using M8 anchors and nuts (solid wall ■... - Page 25 L-profile - min. 30x30x3, length according to size of the installation opening (min. profile overlap 30 mm on each side) - L-profile is not part of the delivery Nut M8 with anchor Bolt M6x20 + large-area washer Version 2023-10-31 Fire damper - FDML Page 25...
- Page 26 (min. width 30 mm, min. thickness 2 mm and min. overlap of holders 30 mm) Nut M6 with anchor - Solid wall construction or Screw with hexagon head - Gypsum wall construction Rivet 4x6 Page 26 Fire damper - FDML Version 2023-10-31...
-
Page 27: Example Of Duct Connection
Steel clamp min. screw M8 Screws M6 in corners (more about connecting dimensions → see page Self-drilling screw - connection of the flanges of the damper and the duct Sealing Protective bonding conductor Version 2023-10-31 Fire damper - FDML Page 27... -
Page 28: Technical Data
ρ [kg/m air density ξ coefficient of local pressure loss for the nominal damper section → see page 29 Determination of pressure loss by using diagram ρ = 1,2 kg/m Page 28 Fire damper - FDML Version 2023-10-31... - Page 29 1,735 1,668 1,654 1,600 1,532 1,465 1,397 1,330 1,262 2,153 2,106 2,074 1,996 1,981 1,918 1,840 1,762 1,684 1,606 1,528 1000 1,987 1,940 1,909 1,830 1,814 1,751 1,673 1,594 1,516 1,437 1,358 Version 2023-10-31 Fire damper - FDML Page 29...
-
Page 30: Material, Finishing
Indoor (minumum temperature +5°C). The dampers must be temperature must be in the range from -30°C to +50°C protected against mechanical and accidental damage and maximum relative humidity 95%. prior to installation. Page 30 Fire damper - FDML Version 2023-10-31... -
Page 31: Warranty
The warranty for fire dampers FDML, provided by the ■ are mechanically damaged during handling. manufacturer, is completely void if actuating, closing and... -
Page 32: Commissioning And Revisions
If the thermal fuse Tf2 is interrupted (due to temperature inside the duct) , only the spare part ZBAT 72 (95/120/140) needs ■ to be replaced (acc.to the activation temperature). → see page 8 Page 32 Fire damper - FDML Version 2023-10-31... -
Page 33: Ordering Informations
