HOTOWELL HTW-31-KT13 Manual

Room Temperature Controllers with LCD

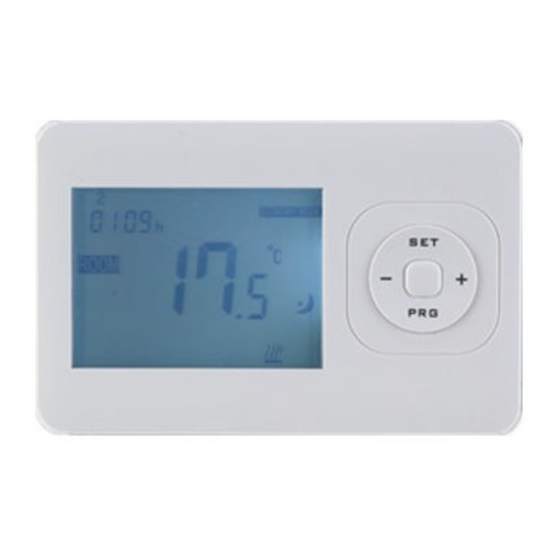

This room thermostat is used in heating only or cooling only systems to maintain selected room temperature. The
controller acquires the room temperature with its integrated sensor and maintains the set point by delivering control
commands.

Functions

Large display can be clearly read with the background lighting.
Four buttons make it easy to use.
MAN Mode and PRG. Mode
4 periods of each day programmable(5+1+1)
The display shows the set temperature as well as the measured temperature, time.
Temperature display in degrees Celsius.

Technical Data

Thermostat operating voltage:
Backup storage:
Maximum voltage / (ohmic) load:
Switching options:
Temperature settings:
Accuracy:
Thermostat dimensions:
Color:
IP protection rating:
2 x AAA, alkaline batteries.
EEPROM
230 VAC/8A.
5+1+1
5°C ~ 30°C, 0.5°C increments.
+/- 0.5°C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
White
30.
1/3
HTW-31-KT13
