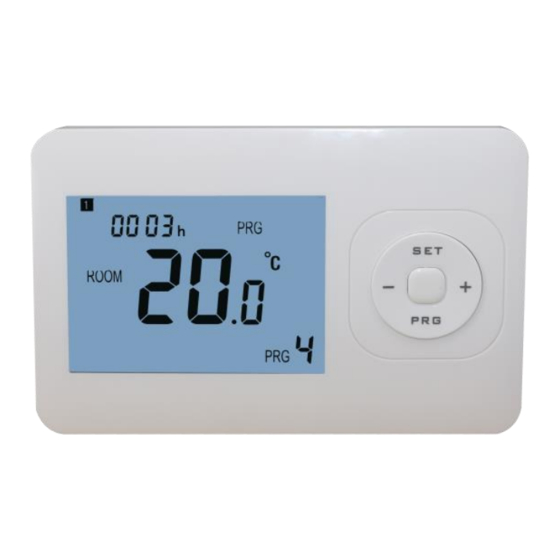

This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating
systems on and off using a set temperature and time.
Functions
Large display can be clearly read with the background lighting.
Easy to fit thermostat and receiver.
Five buttons make it easy to use.
4 periods of each day programmable
The display shows the set temperature as well as the measured temperature, time.
Temperature display in degrees Celsius.
The thermostat is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).
Technical Data
Thermostat operating voltage:
Backup storage:
Receiver operating voltage:
Maximum voltage / (ohmic) load:
Frequency:
Channel selection:
Switching options:
Receiver switch contacts:
Temperature settings:
Accuracy:
Thermostat dimensions:
Receiver dimensions:
Color:
IP protection rating:
Certification:
Wireless Room Thermostat
2 x AA1.5 V, alkaline batteries.
EEPROM
230 VAC, 50/60 Hz
250 VAC/10 A.
868 MHz
By programming the thermostat and the receiver.
7day, 4 periods each day.
NO and NC.
5° C ~ 35° C, 0.5° C increments.
+/- 0.5° C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
Surface mounted, 86mm x 86 mm
White
20.
CE, Rohs, R&TTE
HTW-31-WKT13-WF
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-31-WKT13-WF
Summary of Contents for HOTOWELL HTW-31-WKT13-WF
- Page 1 Wireless Room Thermostat HTW-31-WKT13-WF This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time. Functions Large display can be clearly read with the background lighting.
- Page 2 Wireless Room Thermostat HTW-31-WKT13-WF Display & Buttons Week/Day MAN Mode Time PRG. Mode Mode Select & Time Adjust & Sensor Calibration Button Room Temp. Set Temp. Programming Buttong & MAN/PRG. Mode Select Heat Icon PRG Period On/off Button PRG. Schedule Setting Long press PRG button to enter PRG setting.
- Page 3 Wireless Room Thermostat HTW-31-WKT13-WF Press the SET button . The hour display (top left in the display) flashes. Change this value using the + and – buttons. Press the SET button. The day display (top left in the display) will flash as a number.
- Page 4 Wireless Room Thermostat HTW-31-WKT13-WF When the Open Window detect function is enabled in the parameter setting, the system will automatically stop heating when it detects a sudden drop of room temperature (2° C in 15 minutes as default). This is normally caused when a window or door is opened without turning off the heating device.
