App Name and Specification
Search and install
"Smart Life"
"Plus
Thermostat"
On below channels
READ CAREFULLY - These instructions will help prevent difficulties that might arise during thermostat installation and operation.
Studying the instructions first may save considerable time and money later. Observing the following procedures will keep installation time
to a minimum. Save these instructions for future use.
FUNCTIONS AND FEATURES
This thermostat has been designed to control conventional heating and cooling system or heat pump system.
Compatible with Google home & Amazon Echo
4.3'' LCD screen clear display
White bright digits

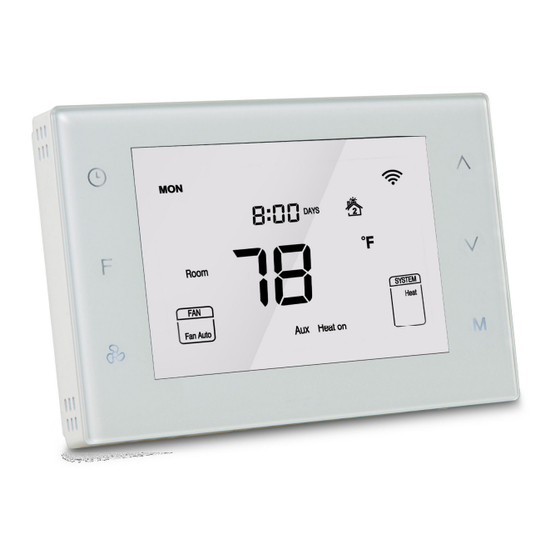

Smart Wifi Multi Stage Thermostat
or
Thermostat
WARNING
Touch sensitive buttons
Apps for IOS and Android devices
Reference No.: HTW-81-FN7WF Series
Specifications:
Power Supply: AC24V 50/60Hz
Self-consumption: 2W
Dimensions: 5.35x3.7x1.02''(136x94x26mm)
Output Ampere: 1A (Resistive load)
Sensor: NTC Sensor
Temperature setting range: 5~37℃
(41~98.6F)
Accuracy: ±0.5℃
Material: Toughened glass + PC
Wiring: By terminals
Mounting size: 2.36''(60mm) or 3.23''(82mm)
Certificate: FCC
White backlit display
App
1/7
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-81-FN7WF Series
Summary of Contents for HOTOWELL HTW-81-FN7WF Series
- Page 1 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series App Name and Specification Specifications: Search and install “Smart Life” Power Supply: AC24V 50/60Hz Self-consumption: 2W Dimensions: 5.35x3.7x1.02’’(136x94x26mm) “Plus Thermostat” Output Ampere: 1A (Resistive load) On below channels Sensor: NTC Sensor Temperature setting range: 5~37℃...
- Page 2 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series General HTW-81-FN7WF smart thermostat combines user-friendly touch sensitive buttons with WiFi wireless smart control application, offering unparalleled user control. Its local efficient control system and remote wireless smart control save up to 32% heating &...
- Page 3 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series Terminals Explanation Terminals Explanation Remark Cooling power (two transformers) Joined with R by jumper (one transformer) Heating power (two transformers) Joined with RC by jumper (one transformer) W (O/B) Heat output...
- Page 4 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series Wi-Fi Network Configuration Step 1: Power on the thermostat; Step 2: Make sure it runs in “Hold”/“Hold Until” Mode then OPERATION INSTRUCTINS Press for 3 seconds until “E” or “A” blinks.
- Page 5 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series Auto: In this state, a constant temperature will be kept. Device will activate/ stop heating/cooling system automatically according to the setting and room temperature. Conventional system Heat Room temp.≤Setting temp.-1 ℃...
- Page 6 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series After completed the time setting, Press to switch to the temperature setting, setting temperature flash and press to modify the setting temperature. After finished the above steps, press to switch to 2 period of Monday and repeat item 1 and 2 steps, then complete 4 periods of Monday setting.
- Page 7 Smart Wifi Multi Stage Thermostat Reference No.: HTW-81-FN7WF Series Warranty We warrant this product to be free from defects in material and workmanship under normal and proper use for one year from purchase date of the original purchaser. We will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
