General
Functions
Large display can be clearly read with the background lighting.
Four buttons make it easy to use.
MAN Mode and PRG. Mode
4 periods of each day programmable(5+1+1)
The display shows the set temperature as well as the measured temperature, time.
Temperature display in degrees Celsius.
Technical Data
Thermostat operating voltage:
Frequency:
Channel selection:
Switching options:
Temperature settings:
Accuracy:
Thermostat dimensions:
Color:
IP protection rating:
Certification:
Wireless Thermostat(Transmitter)

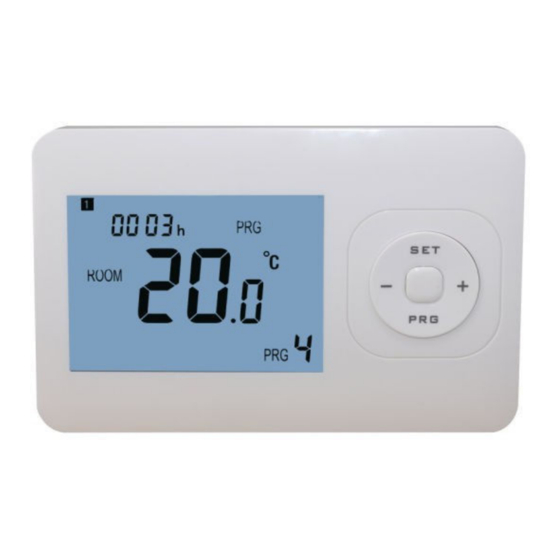

HTW-31-KT13T wireless thermostat(Transmitter) is used in
heating only or cooling only systems to maintain selected
room temperature. The controller acquires the room
temperature with its integrated sensor and maintains the set
point by delivering control commands.
2 x AAA, alkaline batteries.
868Mhz/433Mhz
By programming the thermostat and the receiver.
5+1+1
5°C ~ 30°C, 0.5°C increments.
+/- 0.5°C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
White
30.
CE/RoHS
Reference No.:HTW-31-KT13T Series
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-31-KT13T Series
Summary of Contents for HOTOWELL HTW-31-KT13T Series
- Page 1 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT13T Series General HTW-31-KT13T wireless thermostat(Transmitter) is used in heating only or cooling only systems to maintain selected room temperature. The controller acquires the room temperature with its integrated sensor and maintains the set point by delivering control commands.
- Page 2 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT13T Series Display & Buttons Week/Day MAN Mode Time PRG. Mode Mode Select & Time Adjust & Sensor Calibration Button Room Temp. Set Temp. Programming Buttong & MAN/PRG. Mode Select Heat Icon PRG Period On/off Button PRG. Schedule Setting Long press PRG button to enter PRG setting.
- Page 3 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT13T Series Clock Adjustment - Press and hold the SET button for around 3 seconds. The minutes display (top left in the display) flashes. - Change this value using the + and – buttons. - Press the SET button . The hour display (top left in the display) flashes.
- Page 4 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT13T Series Installation Transmitter Mount on wall: Separate the face plate and base plate, and mount the base plate on the wall with provide screws. After done, hung the face plate on base plate Put on desk: install the foot directly .
