General
Functions
Large display can be clearly read with the background lighting.
Four buttons make it easy to use.
MAN Mode and PRG. Mode
4 periods of each day programmable(5+1+1)
The display shows the set temperature as well as the measured temperature, time.
Temperature display in degrees Celsius.
Technical Data
Thermostat operating voltage:
Frequency:
Channel selection:
Switching options:
Temperature settings:
Accuracy:
Thermostat dimensions:
Color:
IP protection rating:
Certification:

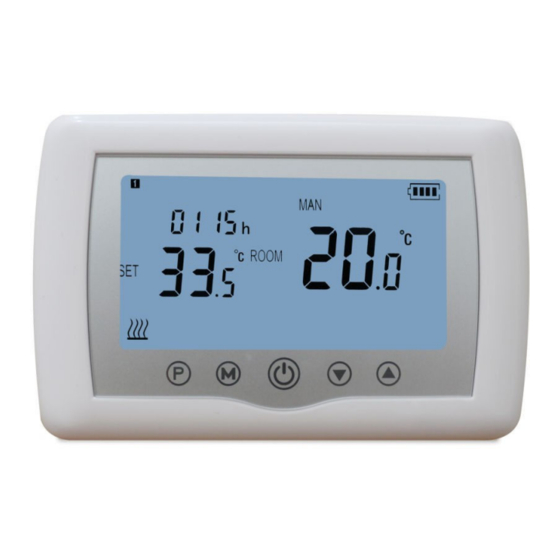

Wireless Thermostat(Transmitter)
HTW-31-KT19T wireless thermostat(Transmitter) is used in
heating only or cooling only systems to maintain selected room
temperature. The controller acquires the room temperature with
its integrated sensor and maintains the set point by delivering
control commands.
2 x AAA, alkaline batteries.
868Mhz/433Mhz
By programming the thermostat and the receiver.
5+1+1
5°C ~ 30°C, 0.5°C increments.
+/- 0.5°C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
White
30.
CE/RoHS
1 / 4
Reference No.:HTW-31-KT19T Series
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-31-KT19T Series
Summary of Contents for HOTOWELL HTW-31-KT19T Series
- Page 1 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT19T Series General HTW-31-KT19T wireless thermostat(Transmitter) is used in heating only or cooling only systems to maintain selected room temperature. The controller acquires the room temperature with its integrated sensor and maintains the set point by delivering control commands.
- Page 2 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT19T Series Display & Buttons Battery Indicator Weekday Clock Room Temp. Display Set Temp. Heating Icon. Programmable Period Temp. & Parameters setting PRG. Button On/off Button Modes Select PRG. Schedule Setting The weekday is fixed from Monday to Sunday(1~7), each day have 4 periods(1~4).
- Page 3 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT19T Series Clock Adjustment Long Press P button for 2-3 seconds You will see 00:00 hour information. Set the minute with up and down buttons. Proceed with P button. Set the hour with up and down buttons.
- Page 4 Wireless Thermostat(Transmitter) Reference No.:HTW-31-KT19T Series Installation For portable use, HTW-31-KT19 foot pod must be installed to control unit as can be seen in the figure below. For wall mounting, first the wall bracket should be mounted on the wall, then the control unit and the wall bracket must be fitted as shown in the following figure.
