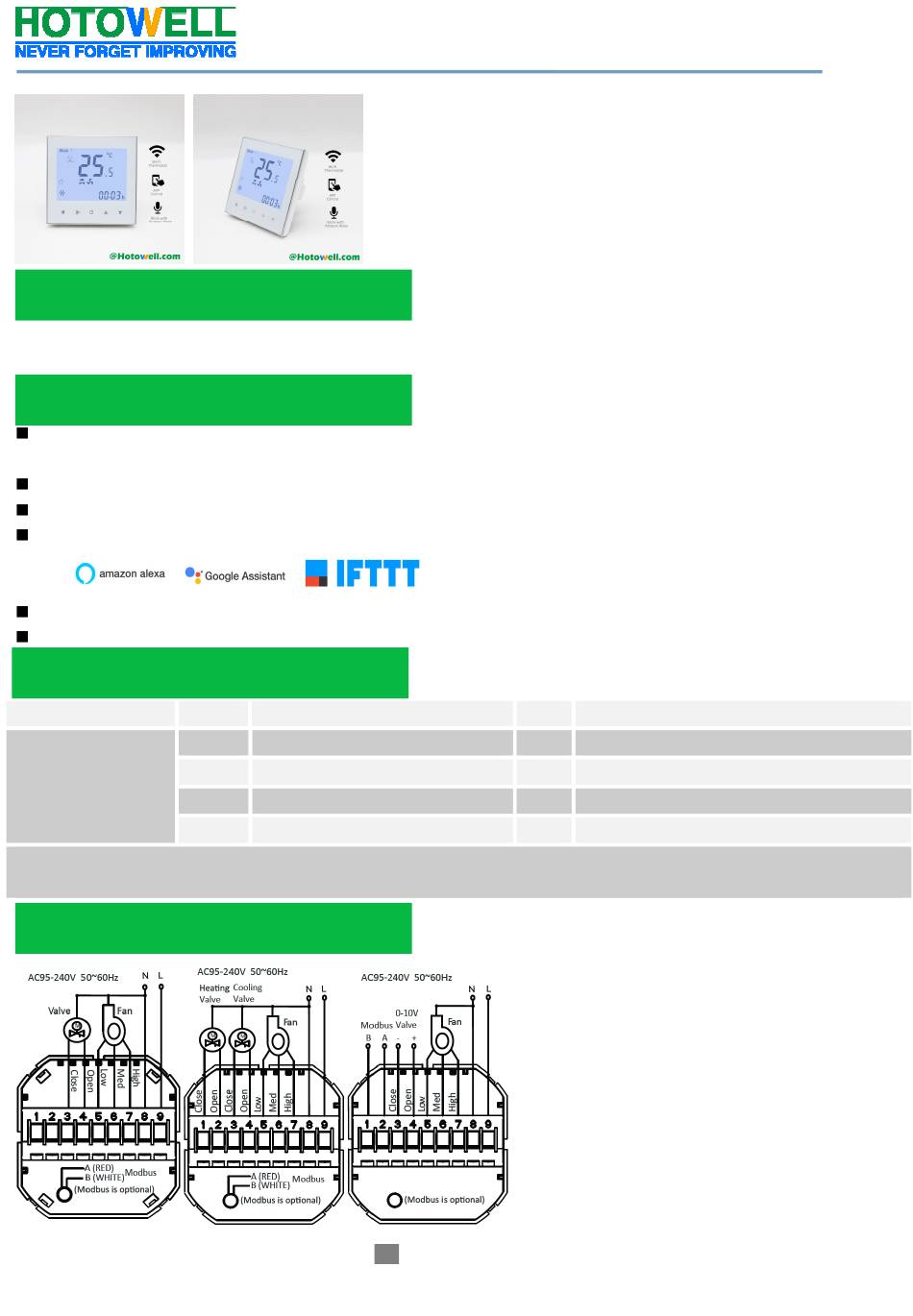

HTW-WF01-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes,
Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Features
17 Mainstreaming Languages synchronize in APP(
Italian, Japanese, French, Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean
Snap-In Easy Installation
Fit for EU & Standard Junction Electric Box
Easily Work with Amazon Alexa, Google Assistant, IFTTT
Group Control in 1 App
Fashion Sense of Science and Technology
Ordering Guide
Ordering Information
HTW-WF01- FC-**
Smart Wifi Fan Coil
Thermostat
e.g. HTW-WF06-FC-2KP refers to application:
programmable
Typical Wiring
A
Smart Wifi Fan Coil Thermostat
-2
2 pipe(tube) system
-4
4 pipe(tube) system
-M
Modulating output
-N
Modbus RTU communication
-K
Key Card occupancy input
2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly
B
- 1 -
English, Spanish, Russian, Hungarian, Turkey, Hebrew, German,
-W
-T
-P
Programmable
-E
External Temperature Sensor
-24v
Power Supply with 24Vac
A=HTW-WF01-FC-2
--2 pipe(tube) system
--3-speed fan
-1 NO/NC valve
B= HTW-WF01-FC-4
--4 pipe(tube) system
-3-speed fan
-2 NO/NC valve
C=HTW-WF01-FC-MN
--3-Speed fan output
--1 load of Modulating 0~10V output
--Modbus Communication
C
Reference No.: HTW-WF01-FC Series
Window Card input
Clock
Version 2018-1.0
)
