HOTOWELL HTW-31-H12 Quick Start Manual

Specifications and Key Features

•
230Vac , 50/60HZ,
•
5~30 ℃ Room temp
•
30~80℃ Floor Over-heating Protection
•
Adjustable holiday/ energy-saving/
Comfort /programmable mode control
•
Water heating system (Max. 3A)&
Electric heating system(Max. 16A)
•
7 days programmable
•
RS-485, Modbus(optional)
•
Floor sensor(optional)

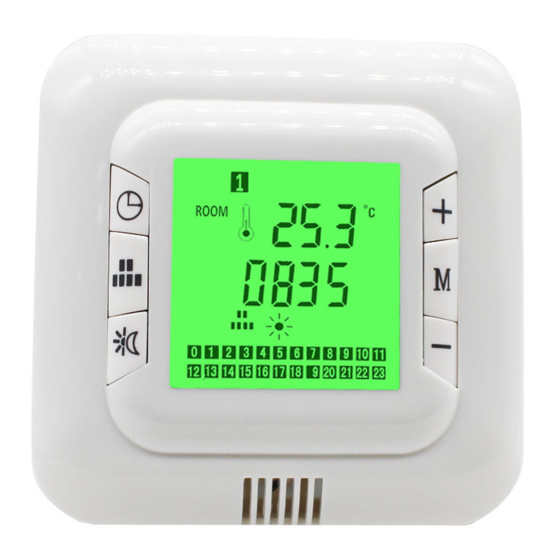

Buttons and Display

Buttons
:
※Week&Day Setting
※7-days Programmable
※Temp. Pre-setting &
Working Modes Selection
※Heating on

Temp. Pre-setting for Modes

button for 3 sec, then go into modes temp. setting by pressing "+" &"-" button.
Press
All data will be stored after 5 seconds.
No. Mode
st
1 Holiday Mode
nd
2 Enegry-saving Mode
rd
3 Comfort Mode
Working mode selection & 7days program.
1. Please press "M" button to select holiday mode, energy-saving mode and comfort mode,
then thermostat can run at your desired setting temperature.
2. Please press "M" to select programmable mode (
Comfortable mode and Energy-saving mode.
Heating Room Thermostat
Range
5℃ ～ 30℃
5℃ ～ 30℃
5℃ ～ 30℃
), then you can program 7 days with
Page 1 of 2
Displays:
※Weekday from 1(Mon.) to 7(Sun.)
※Room Temp. or Floor Temp.
※Time
※Current Time each day
Comfort Mode
Energy-saving Mode
Holiday Mode
HTW-31-H12
