General

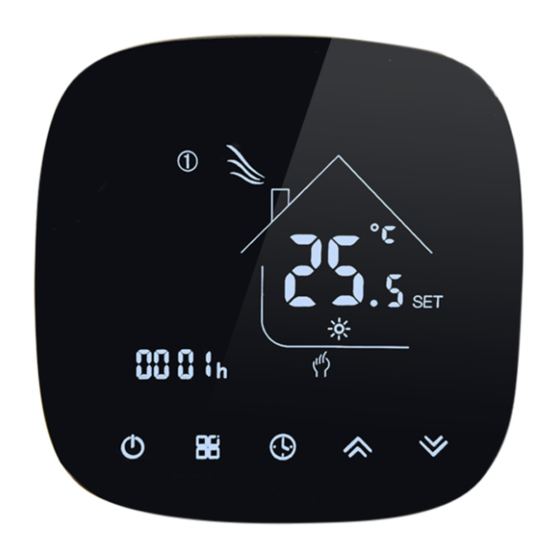

HTW-ECB6 series Wifi thermostat is widely used in these environment like Homes, Residential buildings,
Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in
Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
Features
17 Mainstreaming Languages synchronize in APP(
Italian, Japanese, French, Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean
Snap-In Easy Installation
Fit for EU & Standard Junction Electric Box
Easily Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
Group Control in 1 App
Fashion Sense of Science and Technology
Consise Design
Ordering Guide
Ordering Information
HTW-ECB6- **
e.g. HTW-ECB6-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals
-3A
Smart Wifi Thermostat
Code
-3A
Water Heating, 3A, NC+NO+Com output terminals
-16A
Electric Underfloor Heating, 16A, L+N line voltage output terminals
-NV
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
English, Spanish, Russian, Hungarian, Turkey, Hebrew, German,
Smart Wifi Thermostat
Application
-16A
- 1 -
Reference No.:HTW-ECB6 Series
-NV
Version 2018-1.0
)
Advertisement
Table of Contents
Related Manuals for HOTOWELL HTW-ECB6 Series
Summary of Contents for HOTOWELL HTW-ECB6 Series
- Page 1 Reference No.:HTW-ECB6 Series General HTW-ECB6 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
-
Page 2: Specification
Smart Wifi Thermostat Reference No.:HTW-ECB6 Series Specification Power Supply 95~240Vac, 50/60Hz Sensor NTC3950, 10K Current Load 3A(-3A, -NV application) Temperature Accuracy ±0.5°C or ±1℉ Set-Point Range 16A(-16A application) 5~35°C Storage Temp. -5 ~ 45 °C Display Temp. Range 5 ~ 99°C Power Consumption <... -
Page 3: Operation
Smart Wifi Thermostat Reference No.:HTW-ECB6 Series Operation Buttons/Functions Operation Switch thermostat power On or Off Increase or decrease set-point or parameters ︽ ︾ Set the time and weekday: Touch this icon to set Minute/Hour and Weekday (1 = Monday, 2 = Tuesday etc.) Increase or decrease parameters by using the arrow icons. -
Page 4: Warranty
Products are warranted for 2 full year (checking and repairing services) from the date of purchase which products are not being damaged by any man-made factors. Service outwith the warranty period may incur an extra charge. More details please contact with Hotowell directly. Version 2018-1.0 - 4 -... - Page 5 Smart Wifi Thermostat Reference No.:HTW-ECB6 Series Wifi Connection Step 1- Download and Install APP Use your smart phone or tablet PC to scan the QR code below or Search “SMART LIFE” in the app store /Google play to download and install APP .
- Page 6 Smart Wifi Thermostat Reference No.:HTW-ECB6 Series On the App Press the “+” on the upper right corner of the page (see Fig 3.1) or “Add Device” to add “Thermostat”. Click “Confirm indicator rapidly blink” (Fig 3.2) then select your network and back to your App to enter the password of your wireless router(Fig.3.3) and confirm.
- Page 7 Smart Wifi Thermostat Reference No.:HTW-ECB6 Series fig 4.1 fig 4.2 fig 4.3 fig 4.4 Operation Icons on APP App Icons Functions Switch thermostat power On or Off Lock/Unlock Icon. Locked=Green, Unlocked=Grey Economy mode. The thermostat runs with the set-point configured as Parameter B in ISU Economy set-point=20°C in default.
- Page 8 Smart Wifi Thermostat Reference No.:HTW-ECB6 Series Group Control and Info. Modify Press the menu button as fig 6.1, then click “Create Group”. Select all the rooms you want and confirm.(fig 6.2 and fig 6.3), edit the group name or ungroup as fig 6.3 and fig 6.4 Group Control allows to control all thermostats(+∞...
-
Page 9: Troubleshooting
The M or Increase/Decrease button Make sure keypad is unlocked. doesn’t work Check that thermostat is on. Notice: Hotowell reserves all the right for the final explanation. The manual is subject to change without further notice. Version 2018-1.0 - 9 -...
