Identify System Type
SAVE ABOUT 25% ON HVAC ENERGY
Save money without compromising your comfort with features like flexible
weekly programmable scheduling and remote WiFi control.
FLEXIBLE MOUNTED TYPE
Wall Mounted or 2.36"/62±5mm(Europe,China,Japan) or 3.37"/86±3mm(USA,
Italy), easy to install.
SAVE ABOUT 25% ON HVAC ENERGY
Permanent Hold/Temporary Hold/Using Programming Schedule/Hold Until
Menu.
OTHER FEATURES
Device Sharing, Languages/Time synchronizes according to time zone.
ºF or ºC configurable.
Negative Black Screen, black lightness configurable.
Fan switch ON and AUTO Configurable.
Air Filter change Indicator, Temperature calibration.
Touch Screen Keypad, Easy operation friendly.
Built-in compressor protection.
Power Supply
Terminal Load
Set Point Temp. Range
Accuracy
Dimensions
Color
Installation Hole Distance
Wire Diameter for Terminals

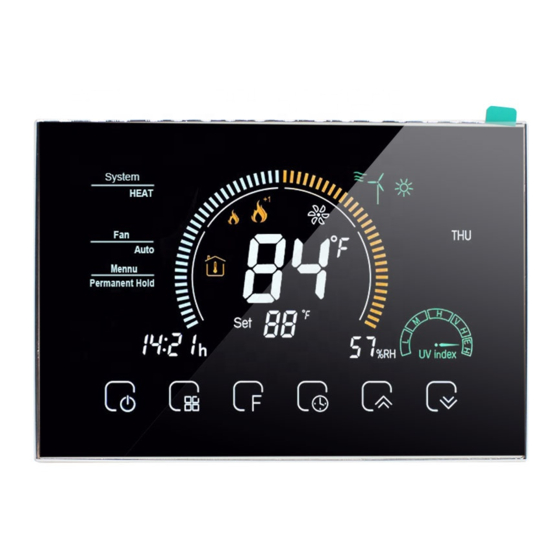

Programmable Multi-Stage Smart Thermostat
Installation and Operation Manual
Features
Specification
- 1 -
Max. 2H2C conventional System
or Max. 3H/2C Heap Pump System
Separate 7 Day Daily Programmable, smart wifi application
****************************************************
This thermostat is compatible with the following systems:
• Gas, oil, Propane or electric furnace
• Central air conditioner
• Geo Thermal / Hot water system with or without pump
• Heat only/Cool only/Auto/Emer/Off modes configurable
• Central heating and cooling system
• Heat pump with auxiliary/backup heat
• Forced Air / In-Floor Radiant / Radiator system
HUMIDITY/UV/WEATHER DISPLAY
Synchronizes Humidity/UV/Weather data locally on the screen display
SMART HOME COMPATIBLE
Compatible with smart home platforms Amazon Alexa, the Google Assistant,
Tuya Smart Life.
MULTIPLY THERMOSTAT CONTROL
Easy management for schools and light commercial applications.
Smart Scene/Group Control available.
AC/DC24V±10%
1.0A(Inductive) per terminal, 3.0A (Resistance) per terminal
42ºF to 122ºF (5ºC to 50ºC).
+/- 1ºF or +/- 0.5ºC.
5.12" L*3.54'' W* 0.82'' D /130x90x20.9mm
White/Black/S.S Brush panel optional
Wall Mounted or 2.36"/62±5mm(Europe,China,Japan) or
3.37"/86±3mm(USA, Italy)
2*1.5mm ² or 1*2.5mm ²
Reference No.: HTW-MT08 Series
Version 2020-1.0
Advertisement
Related Manuals for HOTOWELL HTW-MT08 Series
Summary of Contents for HOTOWELL HTW-MT08 Series
- Page 1 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series Installation and Operation Manual Identify System Type Max. 2H2C conventional System or Max. 3H/2C Heap Pump System Separate 7 Day Daily Programmable, smart wifi application **************************************************** This thermostat is compatible with the following systems: •...
- Page 2 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series Display Dimensions - 2 - Version 2020-1.0...
-
Page 3: Installation
Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series Installation ********************************Remove Old Thermostat******************************** 1.Turn Off the Power To ensure the power to your heating and cooling system has been turned off, try to turn on heating or cooling by changing the temperature on your old thermostat 2. - Page 4 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series 4. Identify jumper wire On your old thermostat, if… Then, on your new thermostat… Terminal RC and RH are connected with a jumper wire Leave the jumper wire in its place There’s only one R wire (RC, RH, R or R5) coming out of the wall...
- Page 5 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series ******************************Check Thermostat Operation****************************** ON/OFF operation Press Power button to turn the thermostat on/off. Working Mode Operation Press to set the thermostat working mode in Permanent Hold, Using Schedule or Temporary Hold. These functions will appear on the screen.
- Page 6 Products are warranted for 2 full year (checking and repairing services) from the date of purchase which products are not being damaged by any man-made factors. Service out of the warranty period may incur an extra charge. More details please contact with Hotowell directly. - 6 - Version 2020-1.0...
- Page 7 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series Wifi Connection Step 1- Download and Install APP Use your smart phone or tablet PC to scan the QR code below or Search “SMART LIFE” in the app store /Google play to download and install APP .
- Page 8 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series On the App Press the “+” on the upper right corner of the page (see Fig 3.1) or “Add Device” to add “Thermostat”. Click “Confirm indicator rapidly blink” (Fig 3.2) then select your network and back to your App to enter the password of your wireless router(Fig.3.3) and confirm.
- Page 9 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series fig 4.1 fig 4.2 fig 4.3 fig 4.4 Operation Icons on APP App Icons Functions Switch thermostat power On or Off Working Mode Selection: Permanent Hold/Temporary Hold/Using Schedule/Holiday Hold. System Mode Selection: Auto/ Cool/Heat/Emer/Off.
- Page 10 Programmable Multi-Stage Smart Thermostat Reference No.: HTW-MT08 Series Group Control and Info. Modify Press the menu button as fig 6.1, then click “Create Group”. Select all the rooms you want and confirm.(fig 6.2 and fig 6.3), edit the group name or ungroup as fig 6.3 Group Control allows to control all thermostats(+∞...
-
Page 11: Troubleshooting
The M or Increase/Decrease button Make sure keypad is unlocked. doesn’t work Check that thermostat is on. Notice: Hotowell reserves all the right for the final explanation. The manual is subject to change without further notice. - 11 - Version 2020-1.0...
