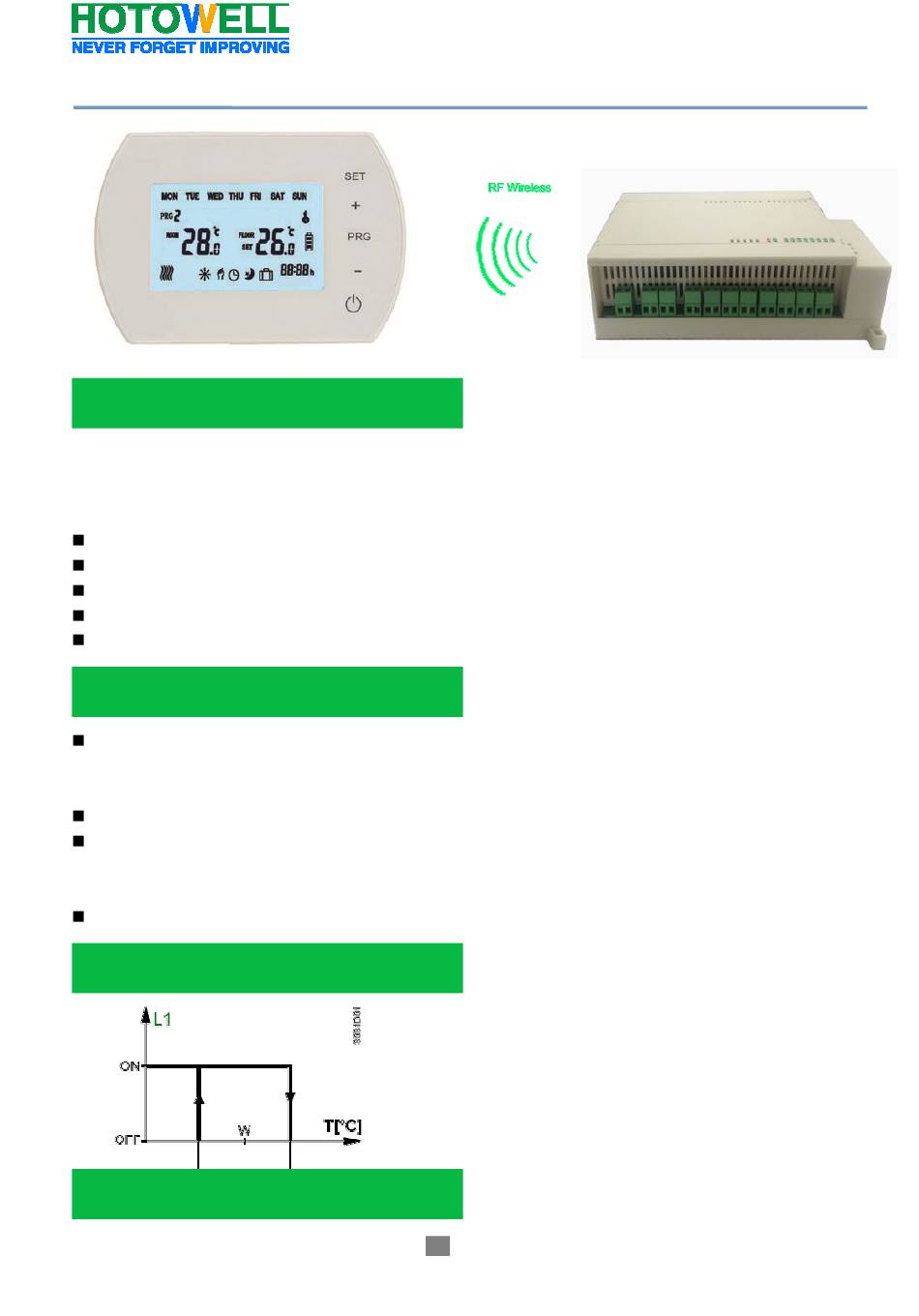

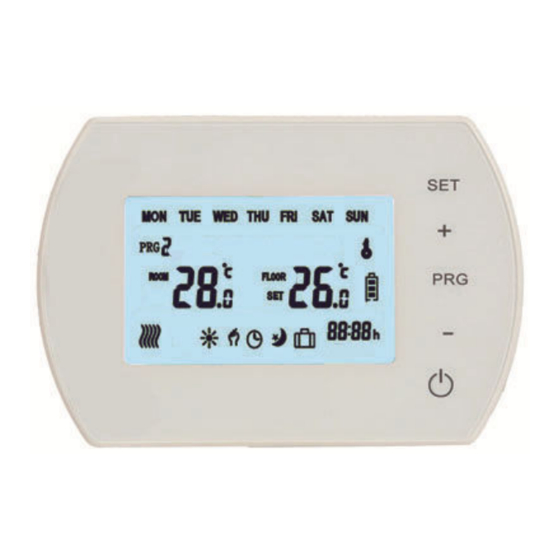

Weekly Programmable Wireless LCD Room Thermostat
Controlling Panel
General
HTW-91-WT410-X8 series thermostat is widely used in these environment like Homes, Residential
buildings, Schools, Offices and etc. to main a ideal room temperature purpose. It can be used both in
Heating or Cooling systems, typically could be integrated with the following equipments:
Thermal Valves or Zone Valves
Combi Boilers
Gas or Oil Burners
Fans
Pumps
Features
Up to 5 operating modes configurable:
Manual Mode, Automatic(5+1+1 Programmable, 6 Time Zones),
Comfort, Energy Saving, and Frost Protection
Big Size of LCD Display: 80x55.8mm(3.15x2.20'')
Safe Operating Voltage Protection:
Controlling Panel: 2xAA batteries-powered
Receiver: Line Voltage powered
RF Frequency optional: 433 Hz(Default) , 846 Hz(optional)
Operating Algorithm
Specification
Max. X 8
T
Room Thermostat
SD
Switching differential (1K)
W
Room temperature setpoint
L1
Output Signal for Heating
- 1 -
HTW-91-WT410-X8
Reference No.:
RF 8 Zones Receiver
Version 2018-1.0
