Motic PM-1805 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

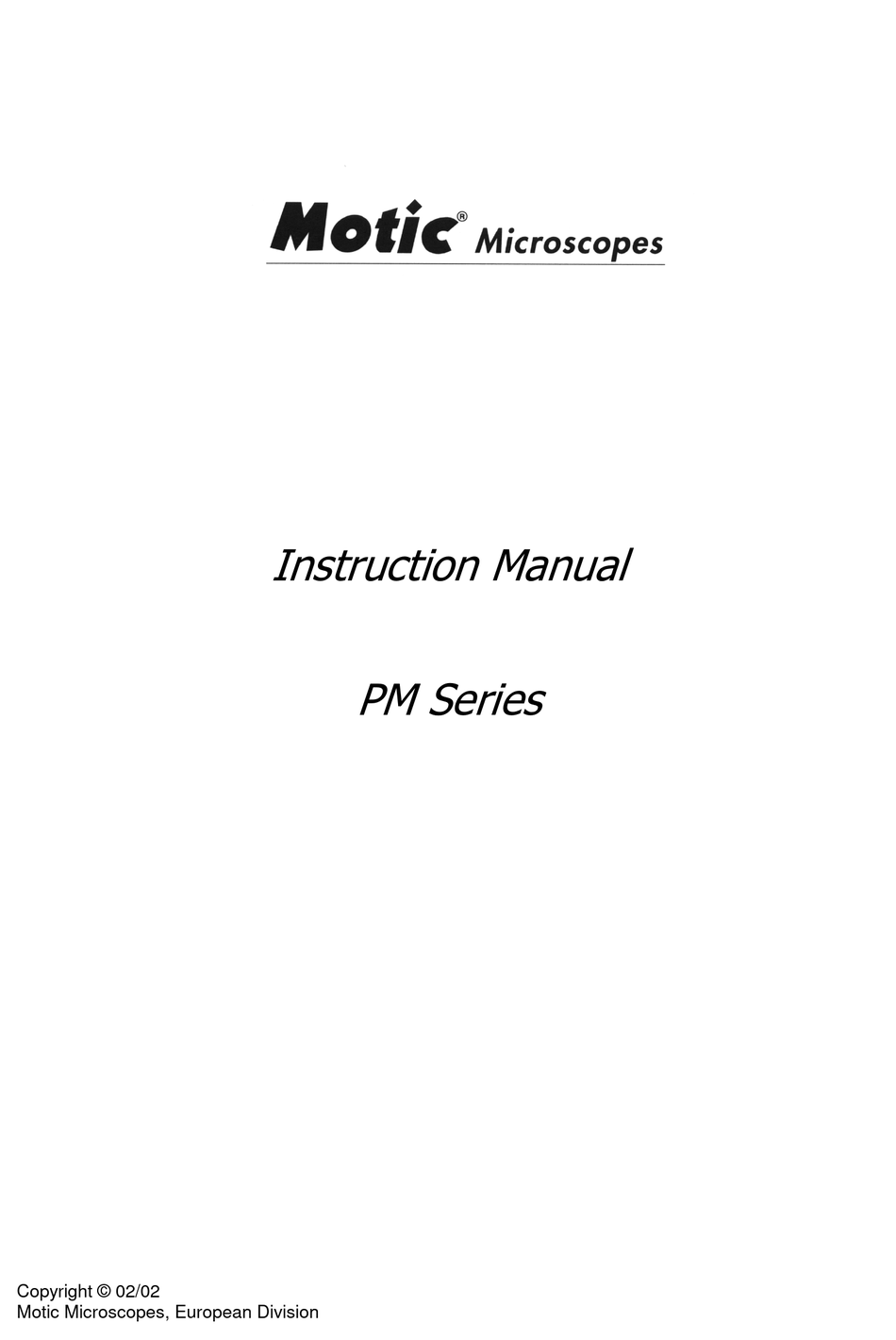

,QVWUXFWLRQ 0DQXDO
30 6HULHV
Copyright © 02/02
Motic Microscopes, European Division

Advertisement

loading
Need help?

Need help?

Do you have a question about the PM-1805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motic PM-1805

Summary of Contents for Motic PM-1805

  • Page 1 ,QVWUXFWLRQ 0DQXDO 30 6HULHV Copyright © 02/02 Motic Microscopes, European Division...
  • Page 2 1. Eyepiece 13. Head 2. Eyepiece tube 14. Bertrand Lens 3. Analyzer 15. Plates λ and 1/4 λ 4. Revolving nosepiece 16. Arm 5.Objectives 6. Stage clips 7. Stage 17. Coarse focus knob 8. Condenser 9. Diaphragm 18. Fine focus knob 10.
  • Page 3 ,QWURGXFWLRQ Thank you for your purchase of a Motic microscope. Motic microscopes are precision instruments, subjected to meticulous examination in order to reach you in perfect condition. Their design combines easy management and optimum functioning with minimum maintenance. The information contained in this manual is likely to go beyond what the average user needs to know to use the microscope, however, it is provided to answer any queries that may arise.
  • Page 4 Make sure that the filter is placed correctly, and close the filter holder. B. Analyser: Only for the PM-1805. Connect the analyser to the eyepiece (1). In the PM-2805 the analyser is already installed in the head.
  • Page 5 2SHUDWLRQ A. Starting up. 1. Before using the microscope, adjust the intensity of the light (20) to its minimum. This must be done each time the microscope is turned on or off to prolong the life of the bulb. 2. Press the power switch, to ON position. (Fig. 1) 3.
  • Page 6 1. Move the polarizer (11) from the illumination field. 2. In the case of the PM-1805, remove the analyser. 3. Focus on a slide with the 10X objective (5). 4. Place a flat object on the illuminator (19). The object must be one that allows light to pass through, for example, a slide.
  • Page 7 1. The polarizer (11) must be placed over the illumination field (19). 2. Without any slide placed on the stage, place the analizer (3) into 90º position. For the PM-1805 place the analizer onto the eyepiece and turn it until the field of view becomes dark.
  • Page 8 6. Cleaning the illuminator lens. (19) a. Only clean the top lens of the illuminator using any of the methods mentioned above for cleaning the eyepieces or objectives. B. Electrical maintenance :$51,1* FOR YOUR SECURITY, SWITCH OFF AND REMOVE PLUG FROM POWER SOURCE OUTLET BEFORE MAINTAINING YOUR MICROSCOPE, TO AVOID SHOCK OR FIRE HAZARD.
  • Page 9 Loosen the stage stopper screw (Fig. 3) with a 2mm hexagonal key. b. For the PM-1805, with the fine focus knob (18) mid run, focus on the sample using only the coarse focus knob (17) with firstly the 4X objective (5), and 10X objective.
  • Page 10 7URXEOHVKRRWHU (/(&75,&$/ 352%/(0 &$86( 62/87,Ï1 Bulb does not work. Plug outlet does not work Repair by a qualified specialised technician. Cable not connected Connect cable. Bulb burned out. Replace bulb. Fuse blown. Replace fuse. Wrong bulb. Replace by the correct bulb. Bulb burns out in short time.
  • Page 11 Bulbs and fuses are not under warrantee. The warrantee service is provided by MOTIC, or its authorised distributors. Defective products will be repaired without charge when returned to MOTIC, or one of its distributors. Transport costs will be covered by the purchaser.
