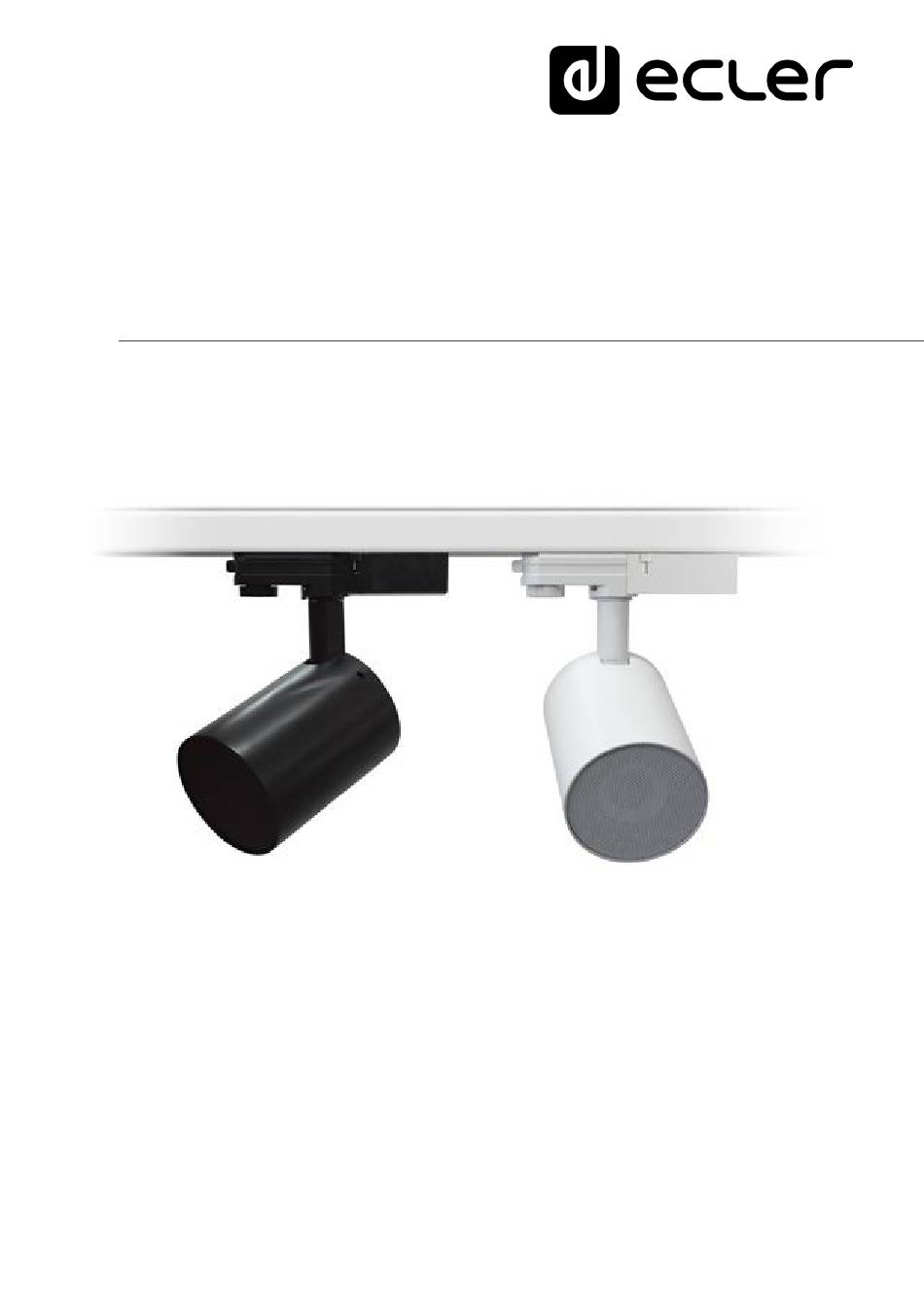

- Page 1 TRAIL103 LOUDSPEAKERS Rail-mount loudspeaker USER MANUAL 50-0319-0104 TRAIL103...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 TECHNICAL FEATURES ......................5 CABLE CONNECTIONS ......................6 LOCATION AND MOUNTING ....................8 7.1. Lighting rail installation procedure (GLOBAL Trac Pro) ..........8 7.2. Surface installation procedure: .................... 10 7.3. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note
To ensure optimal operation of this device, we strongly recommend that its maintenance be carried out by our authorized Technical Services. All ECLER products are covered by warranty, please refer to www.ecler.com or the warranty card included with this product for the period of validity and conditions. -
Page 6: Cable Connections
CABLE CONNECTIONS The TRAIL103 supports high or low impedance operation. In this sense, its rear panel has 2 Euroblock connectors to select its working mode. The HI-Z INPUT connector allows the system to work in high impedance (100V line) and the LO-Z INPUT connector in low impedance. - Page 7 • LO-Z IN: the connector for low impedance will allow you to configure the speakers to work in these conditions, with a maximum power of 30 W (black and red cables). If you choose this configuration, you must consider the limitations of the amplifier when connecting multiple speakers to its output, especially if the impedance of the set drops below 4.
-
Page 8: Location And Mounting
LOCATION AND MOUNTING TRAIL103 offers different mounting systems. In the packaging you will find all the necessary accessories for the different options: installation on lighting rail, on surface (wall or ceiling) and on threaded bar or truss. The following general rules shall be observed: •... - Page 9 4. Place the speaker on the lighting rail as shown in the pictures Connection to a rail GLOBAL Trac Pro (three-wire lighting anchorage system)
-
Page 10: Surface Installation Procedure
5. Make sure that the wheel of the adapter is in the OFF position. Turn the safety lock to secure the speaker to the light rail. Turn the wheel to a position other than OFF and the safety catch will be locked 6. - Page 11 3. Pass the surface accessory cover over the speaker arm before making connections 4. Fix the base of the accessory to the desired surface. Make sure the surface is solid and firm. There are 4 holes for this purpose. It is recommended to use Ø4mm screws (not included) 5.
-
Page 12: Truss Or Threaded Bar Installation Procedure
8. Attach the base cover. To do this, press the cover against the base so that the slot and tabs are aligned. You will hear a click when it is fixed 9. Align the speaker to the desired position on the vertical and horizontal axes 7.3. - Page 13 3. Fix the accessory for mounting on threaded bar or truss as shown in the following picture 4. Make the connections, taking into account the colour coding for high and low impedance explained in point 3 of the instructions for installation on the lighting rail.
-
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS TRAIL103 System Effective frequency range 115 Hz-20 kHz Coverage angle 180°x180° (HxV) Power handling 15 W RMS / 60 W Peak Sensitivity 83 dB (1W/1m) Maximum SPL 95 dB continuous / 101 dB peak Power options Lo-Z: 4Ω; Hi-Z: 15/30 W @ 100V Recommended amplifier power 30 W RMS Transducers... - Page 15 For technical queries please contact your supplier, distributor or complete the contact form on our website under Support / Technical Query. Motors, 166‐168 08038 Barcelona ‐ España ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
