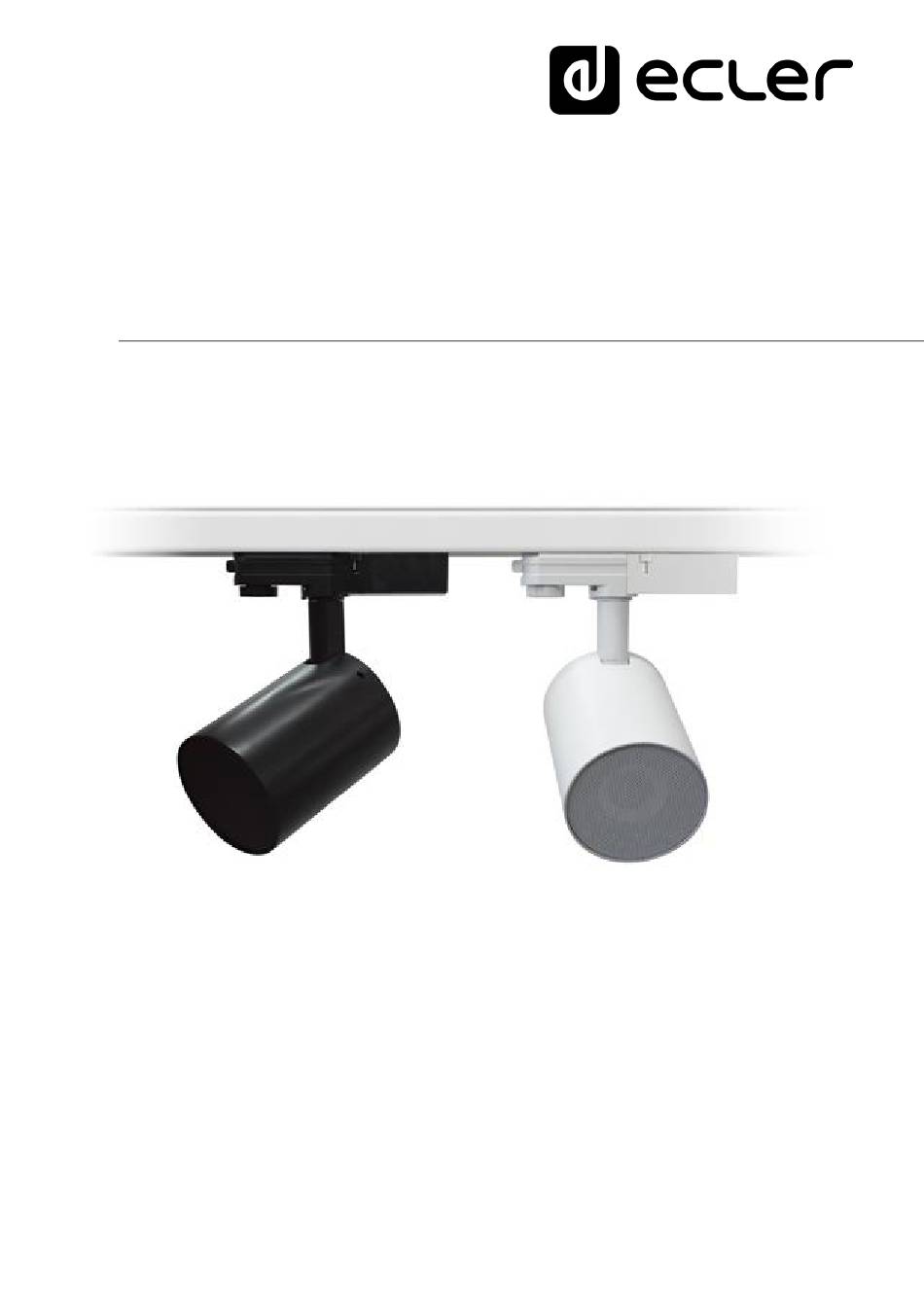

- Page 1 TRAIL103 LOUDSPEAKERS Rail-mount loudspeaker USER MANUAL v.20200409...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 TECHNICAL FEATURES ......................5 CABLE CONNECTIONS ......................6 LOCATION AND MOUNTING ....................8 7.1. Lighting rail installation procedure (GLOBAL Trac Pro) ..........8 7.2. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note

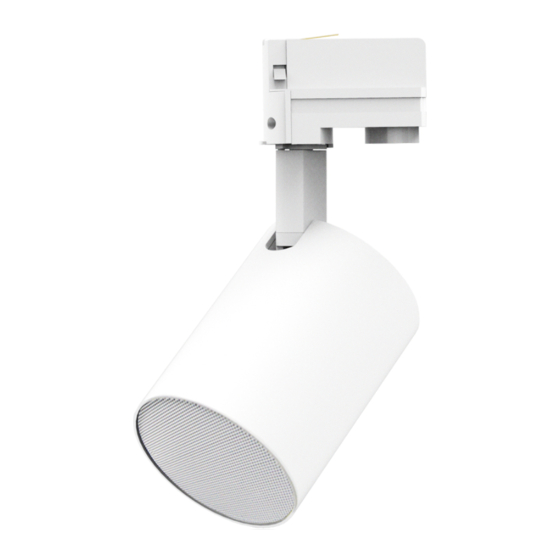

The Ecler TRAIL103 comes with a 3 years warranty. INTRODUCTION TRAIL103 is a 3" loudspeaker with lamp appearance. It has an installation system with three options: on a lighting rail, on a surface and by means of a truss or threaded bar adapter. -
Page 6: Cable Connections
CABLE CONNECTIONS The TRAIL103 supports high or low impedance operation. In this sense, its rear panel has 2 Euroblock connectors to select its working mode. The HI-Z INPUT connector allows the system to work in high impedance (100V line) and the LO-Z INPUT connector in low impedance. - Page 7 • LO-Z IN: the connector for low impedance will allow you to configure the speakers to work in these conditions, with a maximum power of 30 W (black and red cables). If you choose this configuration, you must consider the limitations of the amplifier when connecting multiple speakers to its output, especially if the impedance of the set drops below 4.
-
Page 8: Location And Mounting
• Always install the unit on solid and firm surfaces, in the case of surface installation (ceiling / wall). • Lighting rail installation: TRAIL103 is compatible with 4 wire / 3 circuit lighting rail systems. • For good sound reproduction there should be no obstacle between the speakers and the audience. - Page 9 4. Place the speaker on the lighting rail as shown in the pictures Connection to a rail GLOBAL Trac Pro (three-wire lighting anchorage system)
-
Page 10: Surface Installation Procedure
6. Align the speaker to the desired position on the vertical and horizontal axes 7. If the TRAIL103 is to be removed from the rail, the box with the clamp terminals must be removed first. - Page 11 3. Pass the surface accessory cover over the speaker arm before making connections 4. Fix the base of the accessory to the desired surface. Make sure the surface is solid and firm. There are 4 holes for this purpose. It is recommended to use Ø4mm screws (not included) 5.
-
Page 12: Truss Or Threaded Bar Installation Procedure
8. Attach the base cover. To do this, press the cover against the base so that the slot and tabs are aligned. You will hear a click when it is fixed 9. Align the speaker to the desired position on the vertical and horizontal axes 7.3. - Page 13 3. Fix the accessory for mounting on threaded bar or truss as shown in the following picture 4. Make the connections, taking into account the colour coding for high and low impedance explained in point 3 of the instructions for installation on the lighting rail.
-
Page 14: Technical Specifications
Support arm Swivel (pan and tilt) Connection type Euroblock terminals 3C Weight 1.00 kg PACKAGE CONTENTS • TRAIL103 • Lighting rail mount accessory + speaker box with clamp-on connectors (installed on speaker by default) • Surface mount accessory (2 pieces: base + plastic cover) •... - Page 15 For technical queries please contact your supplier, distributor or complete the contact form on our website under Support / Technical Query. Motors, 166‐168 08038 Barcelona ‐ España ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
