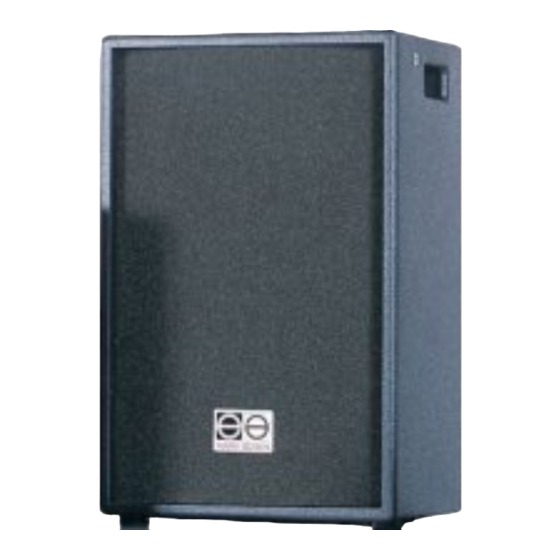

AWAKi
SERVICE MANUAL
AWAK208i
AWAK112i
AWAK115i
AWAK108i
AWAK SB115i
AWAK215i
AWAK SB118i

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWAKi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecler AWAKi

Summary of Contents for Ecler AWAKi

  • Page 1 AWAKi SERVICE MANUAL AWAK208i AWAK112i AWAK115i AWAK108i AWAK SB115i AWAK215i AWAK SB118i...
  • Page 2 INDEX - TECHNICAL CHARACTERISTICS - AWAK108i Schema Components location schema Wiring diagram Mechanical diagram Packing diagram - AWAK208i Schema Components location schema Wiring diagram Mechanical diagram Packing diagram - AWAK112i Schema Components location schema Wiring diagram Mechanical diagram Packing diagram - AWAK115i Schema Components location schema...

  • Page 3: Technical Characteristics

    J. Colomines 031217 C06...-02 AWAKi ECLER author: date: project: product: approved: title: TECHNICAL CHARACTERISTICS A.S. 53.0035 01.02 num: version: AWAK108i AWAK208i Ways 4Ω Nominal impedance 8Ω Max RMS power 150W 280W Program power 300W 560W Efficiency SPL 1W 1m 93dB...
  • Page 4 J. Colomines 020717 C06...-02 AWAKi ECLER author: date: project: product: approved: title: TECHNICAL CHARACTERISTICS 53.0035 01.01 A.S. num: version: AWAK108i AWAK208i Ways 4Ω Nominal impedance 8Ω Max RMS power 125W 280W Program power 250W 560W Efficiency SPL 1W 1m 93dB...
  • Page 5 J. Colomines 020717 C06...-02 AWAKi ECLER author: date: project: product: approved: title: TECHNICAL CHARACTERISTICS 53.0035 01.00 A.S. num: version: AWAK108i AWAK112i Ways Nominal impedance 8Ω 8Ω Max RMS power 125W 350W Program power 250W 700W Efficiency SPL 1W 1m 93dB...
  • Page 12 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FCBM024210 R101 LAMP 24V 21W. FC0H039350 WIRE 16.1039.03.50 FC0H041350 WIRE 16.1041.03.50 FC0H042350 WIRE 16.1042.03.50 40-0105-0100 C06-02.xls 1 of 1...
  • Page 15 PARTS LIST: PRINT CIRCUIT 11.0529.02.01 Code Description Reference FCCDR2002200 C2u2/250V CMR C201 FCCDR1006800 C6u8/100V CMR C203 FCCDR1001500 C1u5/100V CMR C204 FCCE25470000 470u/50 C205 FCCE25470000 470u/50 C206 FCCI05290000 Printed Board 11.0529 CI101 FCTERMF63000 Faston 6.3mm J201 FCTERMF63000 Faston 6.3mm J202 FCTERMF63000 Faston 6.3mm J203 FCBB00010000...
  • Page 18 PARTS LIST: PRINT CIRCUIT 11.0529.02.00 Code Description Reference FCCDR2002200 C2u2/250V CMR C201 FCCDR1006800 C6u8/100V CMR C203 FCCDR1001500 C1u5/100V CMR C204 FCCE25470000 470u/50 C205 FCCE25470000 470u/50 C206 FCCI05290000 Printed Board 11.0529 CI101 FCTERMF63000 Faston 6.3mm J201 FCTERMF63000 Faston 6.3mm J202 FCTERMF63000 Faston 6.3mm J203 FCBB00010000...
  • Page 21 PARTS LIST: PRINT CIRCUIT 11.0529 Code Description Reference FCCDR20022 C201 2,2µF/250 FCCDR10068 C203 6.8µF/100 FCCDR10015 C204 1,5µF/100 FCCE254700 C205 470µF/50 FCCE254700 C206 470µF/50 FCTERMF630 J201 FASTON 6,3mm FCTERMF630 J202 FASTON 6,3mm FCTERMF630 J203 FASTON 6,3mm FCBB000100 L201 317E001 285µH FCBB000200 L202 318E001 212µH FCCI052900...
  • Page 25 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 1 FCAV08B15000 8 INCHES LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 1 FCCJMAW10800 AWAK 108i CABINET 1 FCGOES108000 PROTECTION FOAM 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT 70 FCGOMA000000 PLASTIC PROFILE FOR GRILLE (units in cm)
  • Page 26 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 2 FCBASS010000 SPEAKON SOCKET 4C 1 FCCJMAW10800 AWAK 108i CABINET 1 FCGOES108000 PROTECTION FOAM 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT 70 FCGOMA000000 PLASTIC PROFILE FOR GRILLE (units in cm) 1 FCLOGO200000 AWAK SERIES LOGO SMALL...
  • Page 27 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCBASS0100 SPEAKON SOCKET 4C 1 FCCJMAW108 AWAK 108i CABINET 1 FCGOES1080 PROTECTION FOAM 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT 70 FCGOMA0000 PLASTIC PROFILE FOR GRILLE (units in cm) 1 FCLOGO2000...
  • Page 28 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCBASS0100 SPEAKON SOCKET 4C 1 FCCJMAW108 AWAK 108i CABINET 1 FCGOES1080 PROTECTION FOAM 70 FCGOMA0000 PLASTIC PROFILE FOR GRILLE (units in cm) 1 FCLOGO2000 AWAK SERIES LOGO SMALL 1 FCMEC02740...
  • Page 29 2 FCCONSP10000 MALE SPEAK ON 4C 2 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 8 FCPIE1125500 RUBBER FOOT 2 FCTARJG00000 WARRANTY CARD Jordi Folch...
  • Page 30 2 FCCONSP100 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 8 FCPIE11255 RUBBER FOOT 2 FCTARJG000 WARRANTY CARD Jordi Folch 020627 C06-02 AWAK108i ECLER...
  • Page 34 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI07410000 Print board 11.0741B FCBASS010000 J101 SPEAK-ON NL4MP FASTON FCBASS010000 J102 SPEAK-ON NL4MP FASTON FCBM02421000 R101 LAMP 24V 21W. FC0H03935000 WIRE 16.1039.03.50 FC0H04135000 WIRE 16.1041.03.50 FC0H04235000 WIRE 16.1042.03.50 40-0123-0100 C04-03 AWAK208i.xls 1 of 1...
  • Page 36 PARTS LIST: PRINTED CIRCUIT 11.0529.02.01 Code Description Reference FCCDR2002200 C2u2/250V CMR C201 FCCDR1006800 C6u8/100V CMR C203 FCCDR1001500 C1u5/100V CMR C204 FCCE30500000 1000u/63 C205 FCCE30500000 1000u/63 C206 FCCI05290000 Printed Board 11.0529 CI101 FCTERMF63000 Faston 6.3mm J201 FCTERMF63000 Faston 6.3mm J202 FCTERMF63000 Faston 6.3mm J203 FCBB00025500...
  • Page 38 PARTS LIST: PRINTED CIRCUIT 11.0529.02.00 Code Description Reference FCCDR2002200 C2u2/250V CMR C201 FCCDR1006800 C6u8/100V CMR C203 FCCDR1001500 C1u5/100V CMR C204 FCCE30500000 1000u/63 C205 FCCE30500000 1000u/63 C206 FCCI05290000 Printed Board 11.0529 CI101 FCTERMF63000 Faston 6.3mm J201 FCTERMF63000 Faston 6.3mm J202 FCTERMF63000 Faston 6.3mm J203 FCBB00025500...
  • Page 41 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 2 FCARM5200000 WASHER 5,2X10X1M 2 FCAV08B15000 8 INCHES LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 1 FCCJMAW20800 AWAK 208i CABINET 1 FCDFHFME1000 HIGH FREQUENCY HORN 2 FCGOES220000 PROTECTION FOAM AWAK208i 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT...
  • Page 42 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 2 FCARM5200000 WASHER 5,2X10X1M 2 FCAV08B15000 8 INCHES LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 1 FCCJMAW20800 AWAK 208i CABINET 1 FCDFHFME1000 HIGH FREQUENCY HORN 2 FCGOES220000 PROTECTION FOAM AWAK208i 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT...
  • Page 43 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 2 FCARM5200000 WASHER 5,2X10X1M 2 FCAV08B15000 8 INCHES LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 1 FCCJMAW20800 AWAK 208i CABINET 1 FCDFHFME1000 HIGH FREQUENCY HORN 2 FCGOES220000 PROTECTION FOAM AWAK208i 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT...
  • Page 44 2 FCCANT122000 REAR REINFORCEMENT 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE1125500 RUBBER FOOT Jordi Folch 040213 C04-03...
  • Page 45 2 FCCANT121000 FRONTAL REINFORCEMENT 2 FCCANT122000 REAR REINFORCEMENT 1 FCCONSP10000 MALE SPEAK ON 4C 2 FCETICAJA200 PRODUCT INFORMATION LABEL 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi Jordi Folch 030714 C04-03 AWAK208i 4 FCPIE1125500 RUBBER FOOT...
  • Page 48 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FCBM024210 R101 LAMP 24V 21W. FC0H039350 WIRE 16.1039.03.50 FC0H041350 WIRE 16.1041.03.50 FC0H042350 WIRE 16.1042.03.50 40-0106-0100 C07-02.xls 1 of 1...
  • Page 51 PARTS LIST: PRINTED CIRCUIT 11.0508C Code Description Reference FCCDR10015 C201 1,5µF/100 FCCDK53300 C202 330n/100 FCCDR20047 C203 4,7µF/250 FCCDR10010 C204 1µF/100 FCTERMF630 J201 FASTON 6,3mm FCTERMF630 J202 FASTON 6,3mm FCTERMF630 J203 FASTON 6,3mm FCBB000300 L201 740D001 370µH FCBB000500 L202 739D001 560µH FCCI050800 Print board 11.0508C FC0H026700...
  • Page 54 STICK RUBBER SEALANT ON THE BACK OF SPEAK-ON CONNECTION PANEL Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 1 FCAV12100000 12 INCHES BASS LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 12 FCBURC010000 STICKER FOAM STRIP (units in cm) 1 FCCJMAW11200 AWAK 112i CABINET...
  • Page 55 STICK RUBBER SEALANT ON THE BACK OF SPEAK-ON CONNECTION PANEL Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV121000 12 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW112...
  • Page 56 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV121000 12 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW112 AWAK 112i CABINET 1 FCDFTD2350 CONSTANT DIRECTIVITY HORN 1 FCGOES1120...
  • Page 57 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV121000 12 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW112 AWAK 112i CABINET 1 FCDFTD2350 CONSTANT DIRECTIVITY HORN 1 FCGOES1120...
  • Page 58 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE4906000 RUBBER FOOT 38x15 4 FCT060453000 SCREW D RA81 4,5x30B 1 FCTARJG00000 WARRANTY CARD...
  • Page 59 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 4 FCPIE49060 RUBBER FOOT 38x15 4 FCT0604530 SCREW D RA81 4,5x30B 1 FCTARJG000 WARRANTY CARD Jordi Folch...
  • Page 62 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FCBM024210 R101 LAMP 24V 21W. FC0H039350 WIRE 16.1039.03.50 FC0H041350 WIRE 16.1041.03.50 FC0H042350 WIRE 16.1042.03.50 40-0107-0100 C08-02.xls 1 of 1...
  • Page 64 PARTS LIST: PRINTED CIRCUIT 11.0508C Code Description Reference FCCDR10015 C201 1,5µF/100 FCCDK53300 C202 330n/100 FCCDR20047 C203 4,7µF/250 FCCDR10010 C204 1µF/100 FCTERMF630 J201 FASTON 6,3mm FCTERMF630 J202 FASTON 6,3mm FCTERMF630 J203 FASTON 6,3mm FCBB000300 L201 740D001 370µH FCBB000500 L202 739D001 560µH FCCI050800 Print board 11.0508C FC0H026700...
  • Page 67 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 1 FCAV15K20000 15 INCHES BASS LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 12 FCBURC010000 STICKER FOAM STRIP (units in cm) 1 FCCJMAW11500 AWAK 115i CABINET 1 FCDFTD235000 CONSTANT DIRECTIVITY HORN 1 FCGOES115200 PROTECTION FOAM...
  • Page 68 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW115 AWAK 115i CABINET 1 FCDFTD2350 CONSTANT DIRECTIVITY HORN 1 FCGOES1152...
  • Page 69 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW115 AWAK 115i CABINET 1 FCDFTD2350 CONSTANT DIRECTIVITY HORN 1 FCGOES1152...
  • Page 70 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 12 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW115 AWAK 115i CABINET 1 FCDFTD2350 CONSTANT DIRECTIVITY HORN 1 FCGOES1152...
  • Page 71 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE4906000 RUBBER FOOT 38x15 4 FCT060453000 SCREW D RA81 4,5x30B 1 FCTARJG00000 WARRANTY CARD...
  • Page 72 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 4 FCPIE49060 RUBBER FOOT 38x15 4 FCT0604530 SCREW D RA81 4,5x30B 1 FCTARJG000 WARRANTY CARD Jordi Folch...
  • Page 75 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FCBM024210 R101 LAMP 24V 21W. FCBM024210 R102 LAMP 24V 21W. FC0H039350 WIRE 16.1039.03.50 FC0H041350 WIRE 16.1041.03.50 FC0H042350 WIRE 16.1042.03.50 40-0108-0100 C09-02.xls 1 of 1...
  • Page 77 PARTS LIST: PRINTED CIRCUIT 11.0508C Code Description Reference FCCDR20022 C201 2,2µF/250 FCCDR10100 C203 10µF/100 FCTERMF630 J201 FASTON 6,3mm FCTERMF630 J202 FASTON 6,3mm FCTERMF630 J203 FASTON 6,3mm FCBB000400 L201 752D001 425µH FCBB000800 L202 742D001 1.1mH FCRYD01600 R201 220Ω/20 FC0H026700 WIRE 16.1026.07.00 FC0H027700 WIRE 16.1027.07.00 FC7H026000...
  • Page 80 Nº Qty ECLER Code Description 4 FCARDE030000 TOOTHED WASHER M3 2 FCASA3402000 CABINET METAL HANDLE 2 FCAV15K20000 15 INCHES BASS LOUDSPEAKER 2 FCBASS010000 SPEAKON SOCKET 4C 42 FCBURC010000 STICKER FOAM STRIP (units in cm) 1 FCCJMAW21500 AWAK 215i CABINET 1 FCDFTD235000...
  • Page 81 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCASA34020 CABINET METAL HANDLE 2 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 42 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW215 AWAK 215i CABINET 1 FCDFTD2350...
  • Page 82 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCASA34020 CABINET METAL HANDLE 2 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 42 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAW215 AWAK 115i CABINET 1 FCDFTD2350...
  • Page 83 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE4906000 RUBBER FOOT 38x15 4 FCT060453000 SCREW D RA81 4,5x30B 1 FCTARJG00000 WARRANTY CARD...
  • Page 84 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 4 FCPIE49060 RUBBER FOOT 38x15 4 FCT0604530 SCREW D RA81 4,5x30B 1 FCTARJG000 WARRANTY CARD Jordi Folch...
  • Page 87 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FC7H026000 WIRE 16.1026.10.00 FC7H027000 WIRE 16.1027.10.00 40-0109-0100 C10-02.xls 1 of 1...
  • Page 89 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCASA34020 CABINET METAL HANDLE 1 FCAV18G400 18 INCHES BASS LOUDSPEAKER STICK RUBBER SEALANT ON 2 FCBASS0100 SPEAKON SOCKET 4C THE BACK OF SPEAK-ON CONNECTION PANEL 100 FCBURC0100 STICKER FOAM STRIP (units in cm)
  • Page 90 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCASA34020 CABINET METAL HANDLE 1 FCAV18G400 18 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 100 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAWS18 AWAK SB118i CABINET 1 FCGOES0055...
  • Page 91 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 2 FCASA34020 CABINET METAL HANDLE 1 FCAV18G400 18 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 100 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAWS18 AWAK SB118i CABINET 1 FCGOES0055...
  • Page 92 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE4906000 RUBBER FOOT 38x15 4 FCT060453000 SCREW D RA81 4,5x30B 1 FCTARJG00000 WARRANTY CARD...
  • Page 93 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 4 FCPIE49060 RUBBER FOOT 38x15 4 FCT0604530 SCREW D RA81 4,5x30B 1 FCTARJG000 WARRANTY CARD Jordi Folch...
  • Page 96 PARTS LIST: PRINTED CIRCUIT 11.0741B Code Description Reference FCCI074100 Print board 11.0741B FCBASS0100 J101 SPEAK-ON NL4MP FASTON FCBASS0100 J102 SPEAK-ON NL4MP FASTON FC0H026700 WIRE 16.1026.07.00 FC0H027700 WIRE 16.1027.07.00 40-0110-0100 C12-02.xls 1 of 1...
  • Page 98 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 4 170 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAWS15 AWAK SB115i CABINET 1 FCGOES1155 PROTECTION FOAM 1 FCGOESAWA000 SPEAK-ON PLATE RUBBER SEALANT...
  • Page 99 Nº Qty ECLER Code Description 4 FCARDE0300 TOOTHED WASHER M3 1 FCAV15K200 15 INCHES BASS LOUDSPEAKER 2 FCBASS0100 SPEAKON SOCKET 4C 4 170 FCBURC0100 STICKER FOAM STRIP (units in cm) 1 FCCJMAWS15 AWAK SB115i CABINET 1 FCGOES1155 PROTECTION FOAM 1 FCLOGO1000...
  • Page 100 1 FCCONSP10000 MALE SPEAK ON 4C 1 FCETI0951140 PRODUCT LABEL PACK (ONE FOR EACH UNIT) 1 FCETIECL1000 ECLER STICKER 300x50 1 FCFUNMAN0000 USER MANUAL BAG 1 FCMANAWAK100 USER MANUAL AWAKi 4 FCPIE4906000 RUBBER FOOT 38x15 4 FCT060453000 SCREW D RA81 4,5x30B 1 FCTARJG00000 WARRANTY CARD...
  • Page 101 MALE SPEAK ON 4C 2 FCETICAJA2 PRODUCT INFORMATION LABEL 1 FCETIECL10 ECLER STICKER 300x50 1 FCFUNMAN00 USER MANUAL BAG 1 FCMANAWAK1 USER MANUAL AWAKi 4 FCPIE49060 RUBBER FOOT 38x15 4 FCT0604530 SCREW D RA81 4,5x30B 1 FCTARJG000 WARRANTY CARD Jordi Folch...
