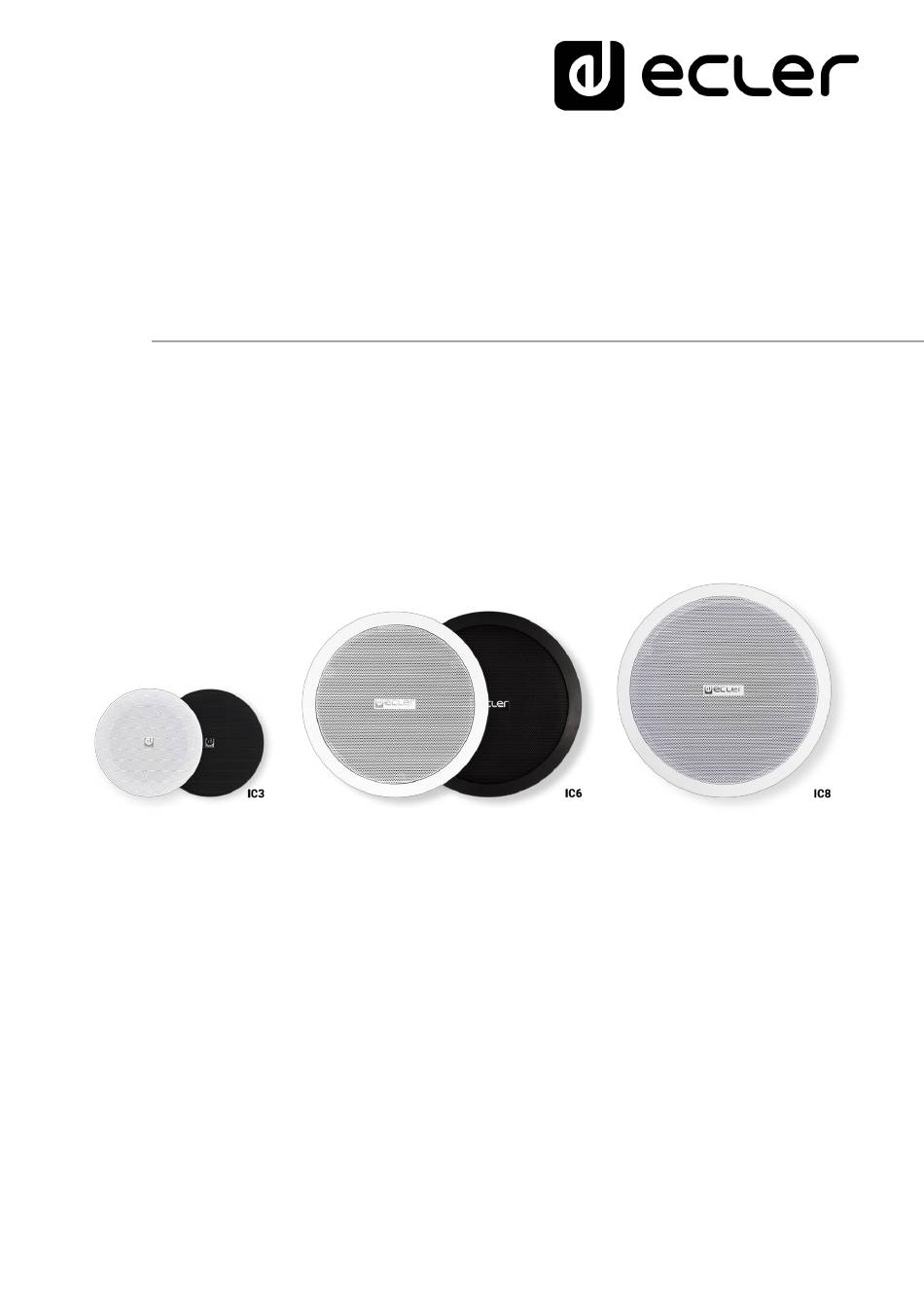

- Page 1 IC Series LOUDSPEAKERS In-ceiling / In-wall Loudspeaker USER MANUAL 50-0130-0107 IC Series...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ..................3 IMPORTANT SAFETY INSTRUCTIONS ............3 IMPORTANT NOTE ..................5 INTRODUCTION ....................5 4.1 IC3 ..........................5 4.2 IC6 ..........................6 4.3 IC8 ..........................6 CONNECTIONS ....................7 LOCATION AND ASSEMBLY ................. 8 PAINTING ......................9 TECHNICAL CHARACTERISTICS ............... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note

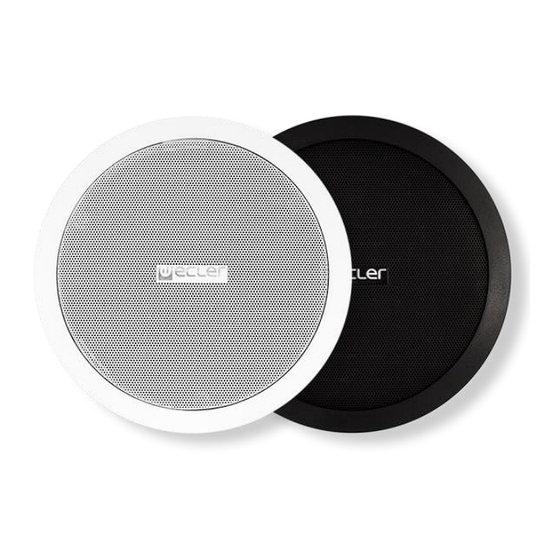

4. INTRODUCTION ECLER's line of IC speakers for false ceilings incorporates carefully selected components in an easy-to-use design that is quick to install. They also provide excellent sound quality for high and low thanks to our infinite speaker philosophy and to top-performance high frequency transducer. -
Page 6: Ic6
• Cut out diameter: 90mm • Available in black (RAL9004) or white (RAL9003) finish • Installation system: spring clips (installation without tools) 4.2 IC6 • 2 way speaker for false ceilings • 6” polypropylene woofer • 25mm tweeter • Power: 40W RMS@8 •... -
Page 7: Connections
5. CONNECTIONS The connection terminals for models IC6 and IC8 are of the pressure clamp type for bare cable. Once connected, just select the mode and working power of the unit with a simple screwdriver. Always respect the polarity. IC6 Connection plate In the IC3 model, the connection terminals are screw-type terminal blocks. -
Page 8: Location And Assembly
6. LOCATION AND ASSEMBLY To install this product correctly, you must be prepared to cut circular holes where you would like to place the speakers and have the wiring necessary for each unit. In order to install the speakers correctly: 1. -
Page 9: Painting
7. PAINTING The IC series is designed to be painted, meaning it can be installed anywhere, regardless of the aesthetic criteria of the place where it will be used. In order to paint any of the models in the product line: 1. -
Page 10: Technical Characteristics
8. TECHNICAL CHARACTERISTICS System Effective frequency range 110 Hz – 20 kHz (-10dB) Coverage angle 147° Power handling 10W RMS / 40W Peak Sensitivity 86dB (1W/1m) Maximum SPL 96dB continuous / 102dB peak Power options 100V: 1,5 / 3 / 6 W and 8 ohm 70V: 0,75 / 1,5 / 3 W and 8 ohm Recommended amplifier 20W Transducers... - Page 11 System Effective frequency range 75 Hz – 20 kHz (-10dB) Coverage angle 145° Power handling 40W RMS / 160W Peak Sensitivity 93dB (1W/1m) Maximum SPL 109dB continuous / 115dB peak Power options 100V: 2,5 / 5 / 7,5 / 15W 70V: 1,25 / 2,5 / 3,75 / 7,5W Recommended amplifier 80W Transducers...
- Page 12 System Effective frequency range 65 Hz - 20 kHz (-10dB) Coverage angle 136° Power handling 60W RMS / 240W Peak Sensitivity 94dB (1W/1m) Maximum SPL 112dB continuous / 118dB peak Power options 100V: 5 / 7,5 / 15 / 30W 70V: 2,5 / 3,75 / 7,5 / 15W Recommended amplifier 120W Transducers...
- Page 13 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
