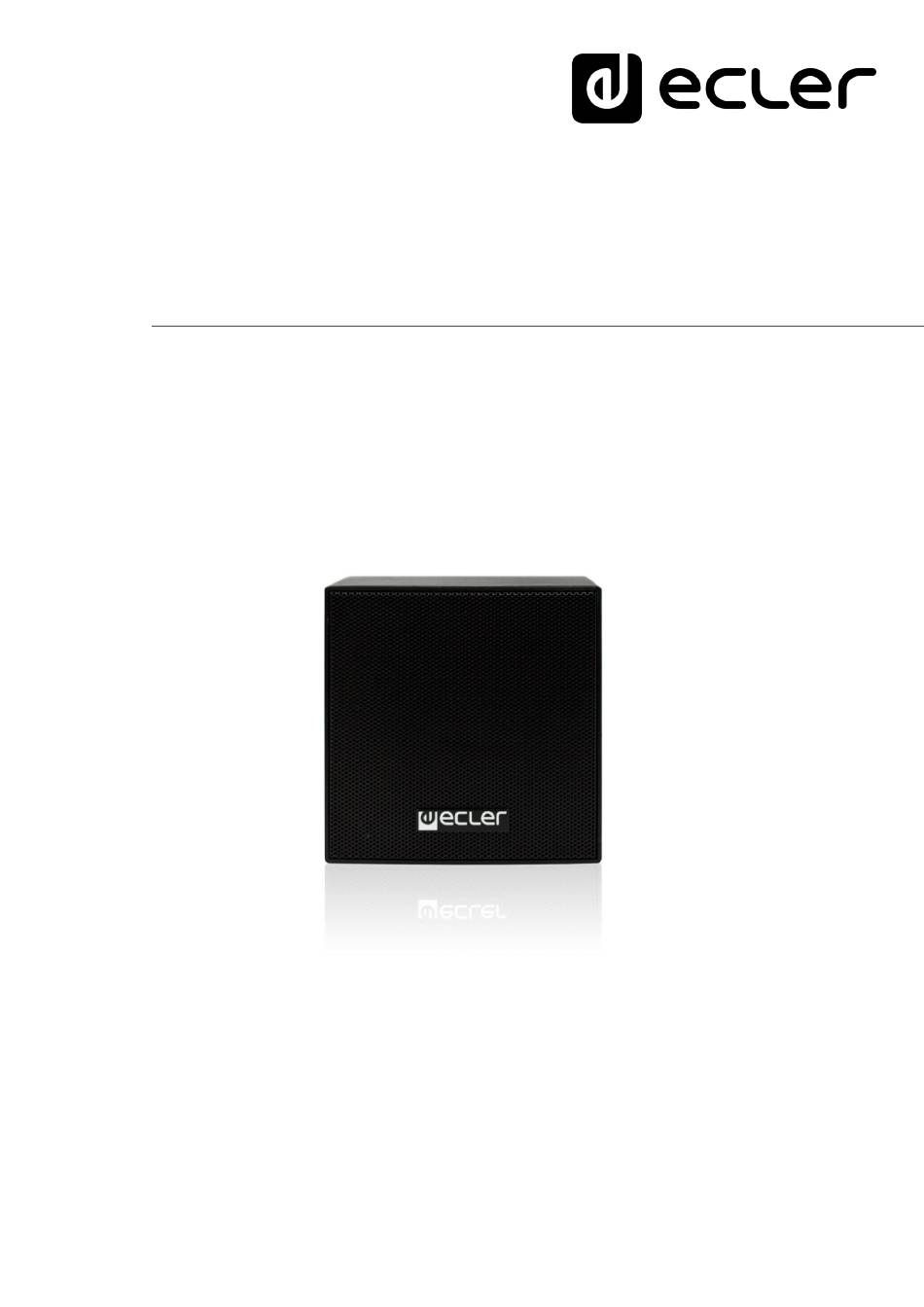

- Page 1 LOUDSPEAKERS Surface Mount Loudspeaker USER MANUAL 50-0105-0106 eAMBIT103...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ....................3 IMPORTANT SAFETY INSTRUCTIONS ..............3 IMPORTANT NOTE ......................5 INTRODUCTION ......................5 CONNECTIONS ....................... 6 PLACEMENT AND MOUNTING .................. 7 TECHNICAL CHARACTERISTICS ................9... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
• A unique product. No other similar box exists. The design is an exclusive Ecler design that is out of the ordinary, distinctive and, what is even more important, extremely adaptable to all kinds of situations. -
Page 6: Connections
• The AMBIT packaging contains everything you need to anchor the boxes in the required position. • The versatility of these cabinets together with a large program of mechanical accessories make it possible to install systems by grouping together from two to as many boxes as are necessary to deal with virtually every need related to the reproduction of ambient music and announcement broadcasting. -
Page 7: Placement And Mounting
operation and with long cable runs, the cables between the amplifier and the speakers should be as short as possible and have good quality. ATTENTION: The AMBIT103 are shipped from factory with the switch in 100V/15W position. If it is connected to a low-impedance amplifier, the speaker will not be damaged, but will perform way below its full potential. - Page 8 60mm, to permit the safety sling screw to be housed and to be coupled to a standard bracket. • Ecler offers a wide range of mechanical accessories that can be used to group several AMBIT, thus enhancing their versatility even more. Please refer to your Ecler distributor or visit www.ecler.com...
-
Page 9: Technical Characteristics
7. TECHNICAL CHARACTERISTICS eAMBIT103 System Effective frequency range 150Hz - 20kHz Coverage angle 207°x207° (HxV) Power handling 25 W RMS / 100 W Peak Sensitivity 87 dB (1W/1m) Maximum SPL 101 dB continuous / 107 dB Peak Power options 70/100V: 15W / 7,5W / 5W / 2,5W / 8Ω... - Page 10 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
