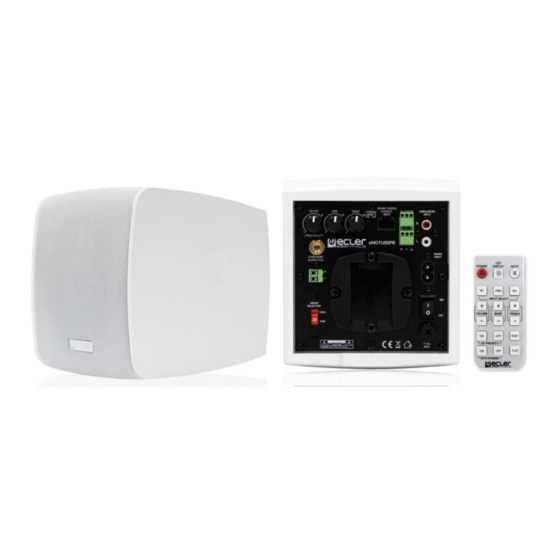

- Page 1 / eMOTUS5PB SURFACE MOUNT CABINETS Powered Loudspeakers - Stereo kit USER MANUAL v.20190604...
-
Page 2: Table Of Contents
INTRODUCTION ........................5 KEY FEATURES ........................5 POSITIONING AND FITTING ....................6 START UP ..........................8 7.1. eMOTUS5P ..........................8 7.2. eMOTUS5PB ..........................8 7.2.1. Wireless connection......................8 7.2.2. Remote control ........................9 7.2.3. Remote port ........................10 REAR PANEL ......................... 11 TECHNICAL SPECIFICATIONS .................. -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
Ecler eMOTUS5P / eMOTUS5PB comes with a 1-year warranty. 4. INTRODUCTION The eMOTUS5P / eMOTUS5PB is a kit of loudspeakers including an active and a passive acoustic box. The eMOTUS5PB includes a wireless BT receiver, remote control and remote control volume port (0-10 VDC). Is a compact, professional stereo kit, easy to handle and at a very attractive price. -
Page 6: Positioning And Fitting
For good sound reproduction, there should be no hindrance between the units and the audience. Adjust the levels of sound pressure to reproduction requirements. Despite its small size, the eMOTUS5P / eMOTUS5PB has a performance far higher than that of domestic loudspeakers. Procedure for installing on a surface: 1. - Page 7 5. Fit the bracket in place, after threading the line and loudspeaker wire through the square hole in the bracket. Secure the bracket to the wall: 6. Connect the power supply cables, signal input and link between the two units to the connectors on the rear part of the housing.
-
Page 8: Start Up
Press the BT key to select the wireless connection mode. For pairing the BT, the eMOTUS5PB is displayed on other devices as the eMOTUS5 (password:”0000”). Once paired with the emitting device, the eMOTUS5PB will act as a receiver/reproducer of the audio emitted by the former. -
Page 9: Remote Control
7.2.2. Remote control (Only applies to the eMOTUS5PB model) º 1. Turn on: on/off. The green LED display lights up when the unit is on. When off, no LED is displayed. 2. LED display: turn on/off the LEDs while the unit is operating. When restarting the unit, this function returns to its default value: LEDs on. -
Page 10: Remote Port
REMOTE connector on the MASTER unit. As there is an eMOTUS5PB kit along with a type WPa control and other types of control (rotating control on the rear panel, remote control or control via remote port), at all times, the latest adjustments made using one or another method will prevail. -
Page 11: Rear Panel
2. Bass control 3. Treble control 4. Stereo-mono switch 5. Remote input RJ-45. (Only applies to the eMOTUS5PB model) 6. Balanced audio input - Euroblock connectors 7. Non-balanced audio input – RCA connectors 8. Attachment point for the safety cable 9. -
Page 12: Technical Specifications
Construction Aluminium grill, ABS cabinet Dimensions (WxDxH) 173x185x180mm including brackets; 173x248x180mm - Including brackets Weight eMOTUS5PB 4.8 kg – Not including accessories; 5.3 kg – Including accessories Weight eMOTUS5P 4.2 kg – Not including accessories; 4.5 kg – Including accessories BT module (eMOTUS5PB) Bluetooth®... -
Page 13: Packing Content
10. PACKING CONTENT eMOTUS5P / eMOTUS5PB loudspeaker kit (one active unit + one passive unit) 2 x articulated brackets for wall mounting 5mm Allen key 2 x metal safety lines against any possible flaking off, with corresponding screws and lock washers. - Page 14 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
