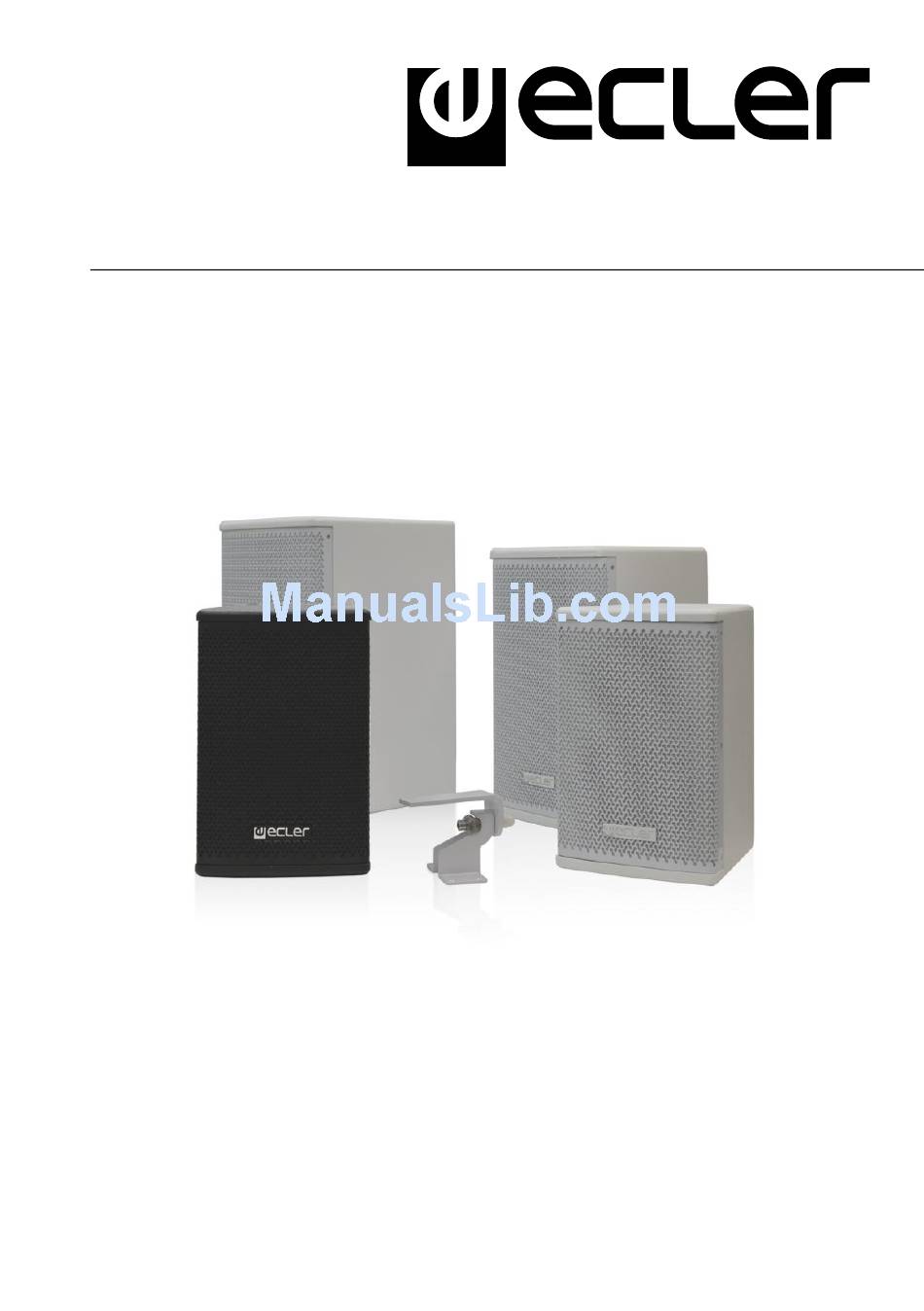

Page 1: User Manual
ARQIS Series CABINET LOUDSPEAKERS Architectural Loudspeaker Cabinets USER MANUAL... -
Page 2: Table Of Contents
INDEX Important note Precautions Introduction Models Connections Recommended amplifier Positioning Installation Technical specifications Diagram... -
Page 3: Important Note
IMP O R TA NT N OTE Congratulations! You are the owner of carefully designed and manufactured equipment. We thank you for trusting in us and choosing our ARQIS Series loudspeaker cabinets. In order to get the optimum operation and efficiency from this unit, it is VERY IMPORTANT - before you plug anything - to read this manual very carefully and bear in mind all considerations specified within it. -
Page 4: Introduction
INT R OD U C T I O N Based on studying installers and interior design and system integration professionals as well as on a permanent contact with them, the ARQIS line of speakers is designed for fixed installation, especially in environments in need of a compact speaker offering high output, easy installation, long-term reliability and excellent sound quality. - Page 5 • 175 WRMS @ 8 Ω • 8" woofer • 1" compression driver (rotable) • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection • Wall bracket included, allowing for pan & tilt adjustment, employing a single screw for fastening •...
- Page 6 ARQIS110 • Full range, 2-way architectural loudspeaker • 220 WRMS @ 8 Ω • 10” woofer • 1" compression driver (rotable) • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection • 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included) •...
-
Page 7: Connections
• 12 x M8 cabinet flying points • Available in black or white finish ARQISSB15 • 1-way architectural subwoofer • 600 WRMS @ 8 Ω • 15" woofer • Double INPUT/STACK connector, Speakon© type • 35 mm top-hat mount socket, for pole mount combinations with ARQIS10, ARQIS12, etc. -
Page 8: Positioning
IN ST A L LA TI O N In the ARQIS series, the best way to install the enclosure was studied for each model. Each model from the ARQIS range is supplied with the optimal installation system. ARQIS205 / ARQIS208 / ARQIS110 / ARQIS 112 / ARQISSB10 / ARQISSB15 also have built-in M8 rigging points for suspension from a compatible structure or "truss"... -
Page 9: Technical Specifications
TE C H N IC A L S P E C I F IC A T I O NS ARQIS105 ARQIS106 ARQIS108 Ways Impedance 8 8Ω 8Ω RMS power 70 WRMS 120 WRMS 175 WRMS Program power 140 WRMS 240 WRMS 350 WRMS SPL 1W/1m 89 dB... - Page 10 ARQIS110 ARQIS112 Ways Impedance 8Ω 8Ω RMS power 220 WRMS 340 WRMS Program power 440 WRMS 680 WRMS SPL 1W/1m 95dB 97dB Max SPL @ 1m 118dB 122dB Frequency response (±3dB) 60Hz÷18kHz 60Hz÷18kHz Cross-over frequency 3.5kHz 2.5kHz Dispersion (HxV) 90⁰x50⁰ 80⁰x40⁰...
-
Page 11: Diagram
D IA G RA M... - Page 12 All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
