- Page 1 LCD display solutions User Manual 21.5” FHD 1920 x 1080 LCD LCD-APF21 Aluminum front bezel LCD-NAPF21 Front NEMA4 / IP65 LCD-OPF21 Universal Mounting Open Frame UM-UV-621-F21-Q317V4 www.rackmountsales.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents LCD-APF21 / NAPF21 < Part. 1 > Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 LCD-OPF21 < Part. 2 > Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part. 1 > Lcd-Apf21 / Napf21
< Part 1 > < 1.1 > Package Content - LCD-APF21 / NAPF21 LCD-APF21 / NAPF21 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack... -
Page 7: Structure Diagram & Dimension
< 1.2 > Structure Diagram - LCD-APF21 / NAPF21 21.5” FHD LCD Display Front view AP-F21 NAP-F21 Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension... - Page 8 < 1.2 > Dimension - LCD-APF21 / NAPF21 Front View Side View AP-F21 NAP-F21 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F21-Q317V4 www.rackmountsales.com...
-
Page 9: Mounting Hardware & Installation
< 1.3 > Panel Mount Installation - LCD-APF21/NAPF21 21.5” LCD Display M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■... - Page 10 < 1.3 > VESA mount Installation - LCD-APF21/NAPF21 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-F21-Q317V4 www.rackmountsales.com...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - LCD-OPF21 21.5” FHD LCD Display LCD-OPF21 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D HDMI AV3.0 upgrade I/O with advanced features Audio Power... -
Page 12: Structure Diagram & Dimension

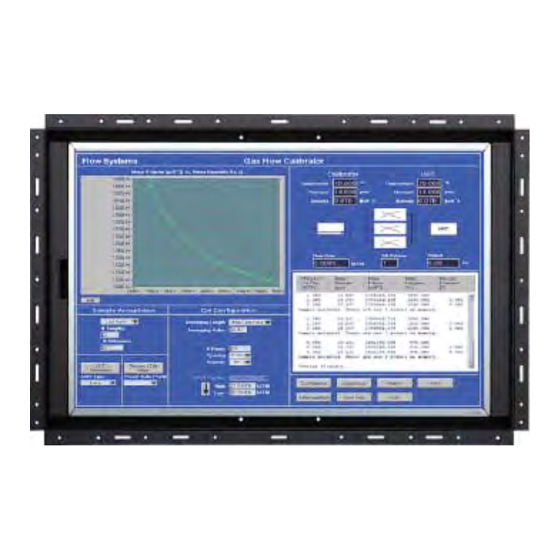

< 2.2 > Structure Diagram - LCD-OPF21 Front view OP-F21 Rear view Rear case LCD panel Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross Model... - Page 13 < 2.2 > Dimension - LCD-OPF21 21.5” FHD LCD Display Front View Side View OP-F21 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-F21-Q317V4 www.rackmountsales.com...
- Page 14 < 2.3 > Installation - LCD-OPF21 ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-F21-Q317V4 www.rackmountsales.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations 21.5” FHD LCD Display LCD-AP/NAPF21 LCD-OPF21 Mechanical Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection... - Page 16 Regulatory Safety FCC & CE certifi ed Environmental RoHS2 & REACH compliant Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) 21.5” FHD LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 18 < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 3.3 > How to Use Picture In Picture ( PIP ) / 21.5” FHD LCD Display Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu →... - Page 20 < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 21: Part 4 > Options
< Part 4 > Options 21.5” FHD LCD Display < 4.1 > Option Table Options AP / NAP SDI *** S-Video * + Composite ( BNC ) Audio Touchscreen MCS multi-display control DC Power MIL-type / lockable connector About SDI The AD board comes standard with HDMI, DVI-D, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 22 < 4.2 > Options : 3G / HD / SD-SDI input Crystal Image’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Crystal Image displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 23 < 4.3 > Options : MCS 24” High Resolution LCD Display More control is always good. Especially when it is necessary and easy. Crystal Image provides MCS solution to control the OSD of ( Multi-display Control ) various Crystal Image LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
-
Page 24: Av3.0 Upgrade : S-Video + Bnc & Audio
< 4.4 > AV3.0 Upgrade Options : - AV ( S-Video + Composite, BNC - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video DVI-D HDMI out - in - in Video PC AV3.0 upgrade option comes with RC-2 remote controller x 1 ( please refer to P.20 ) - Page 25 How to Use RC-2 Remote Controller 21.5” FHD LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
-
Page 26: Projected Capacitive ( 10-Point Touch )
< 4.5 > Options : Touchscreen & driver F21" USB Touchscreen Specifi cation Model e-Resistive F21TPC-10 Multi-touch e-Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 2048 x 2048 Touch Point Accuracy... - Page 27 < 4.5 > Options : Touchscreen & driver 21.5” FHD LCD Display F21TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
-
Page 28: Mil-Type Or Lockable Connector
< 4.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
