AeGIS 7000S SERIES
Limited Warranty Limits and Exclusions
CHAPTER 2 INSTALLATION AND WIRING DIAGRAM
CHAPTER 3 KEYPAD CORRELATION TABLE
Function Code 02: Edit Existing Directory
Function Code 05: Enable or disable Call
file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]

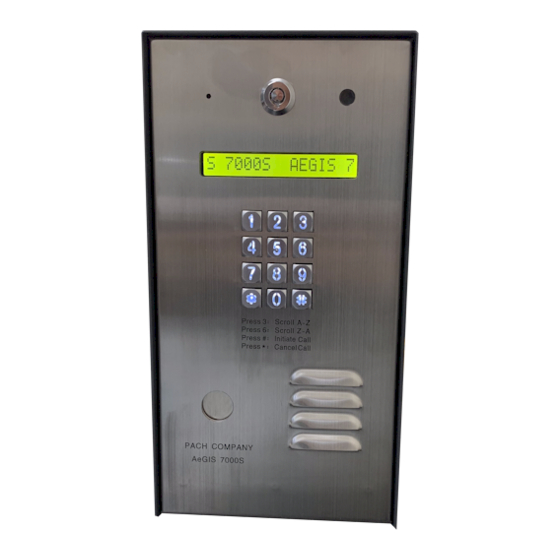

AeGIS 7000S SERIES
(Model: 7000S, 7000SC, and 7000SV)

TABLE OF CONTENTS

Function Code 42: Relay 2 Mode Function Code
43: Do Not Disturb Zone Function Code 44:
Disable Time Zone Relay Function Code 45:
Relay 1 and 2 Unlock Timer Function Code 46:
Function Code 49: Edit Existing Access Code, Temporary Code and Special
Code

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7000SC and is the answer not in the manual?

Questions and answers

Related Manuals for PACH & COMPANY 7000SC

Summary of Contents for PACH & COMPANY 7000SC

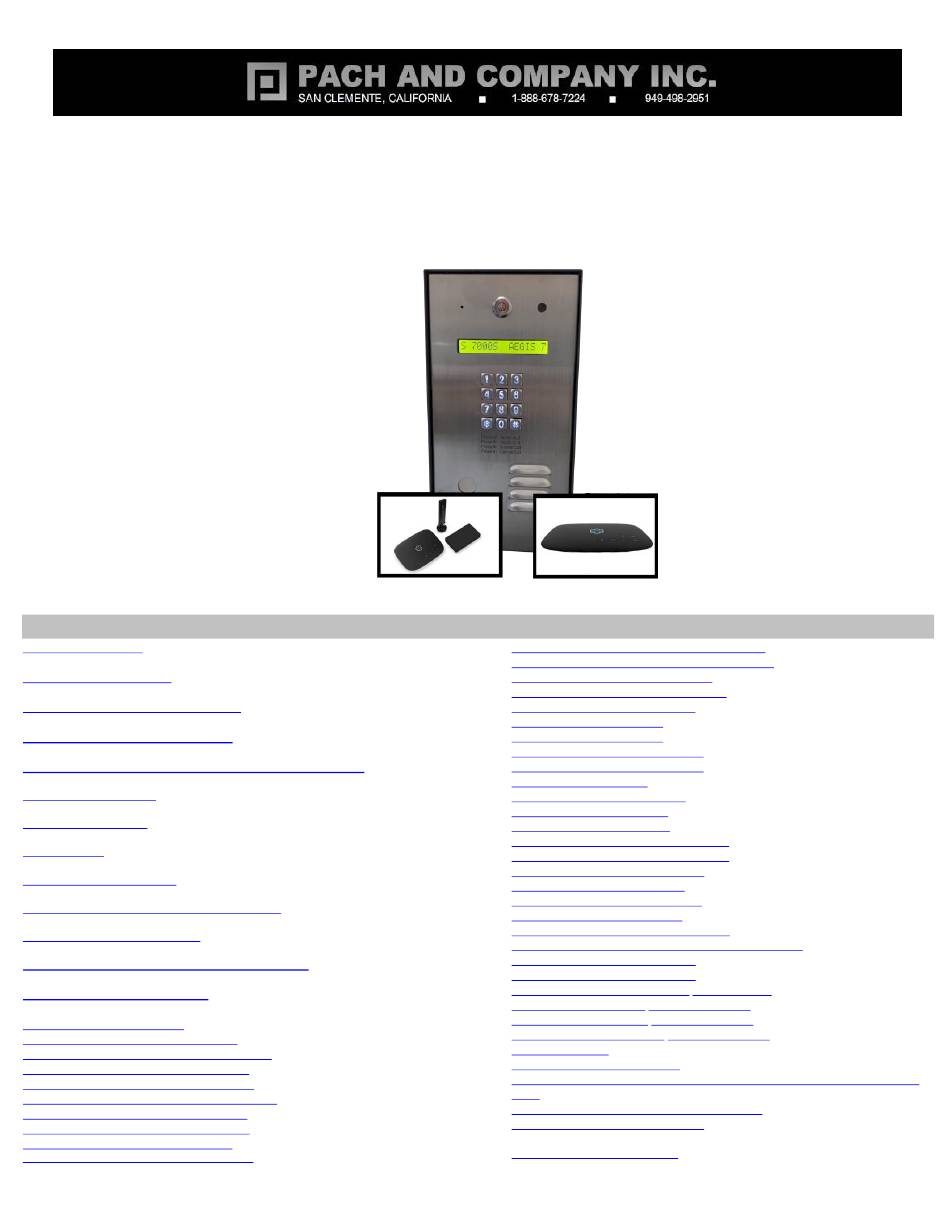

  • Page 1: Table Of Contents

    AeGIS 7000S SERIES AeGIS 7000S SERIES (Model: 7000S, 7000SC, and 7000SV) TABLE OF CONTENTS Limitation of Liability Function Code 15: Initializing Event Recording Function Code 16: Auto Unlock Schedule (AUS) Products Limited Warranty Function Code 17: Time Zone (TMZ) Function Code 18: Holiday Zone (HLD)

  • Page 2: Limitation Of Liability

    AeGIS 7000S SERIES Function Code 08: Clear All Access Codes Function Code 09: Access Code Digit Call from the System Function Code 10: Add New Card or Transmitter Opening Door Remotely Function Code 11: Delete Card or Transmitter Opening Door Using Access Code, Temporary Code and Special Code Function Code 12: Clear All Cards and Transmitters Opening Door Using Card, Temporary Card, and Special Card Function Code 13: Set Time...

  • Page 3: General Wiring Diagram

    AeGIS 7000S SERIES Introduction Pach & Company thanks and congratulates you on the purchase of your AeGIS 7000S Series Telephone Entry Access Control Systems. The manual is designed to guide you through the proper programming and use of the AeGIS 7000S Series. It is important for you to read and follow the manual completely. The product comes with two years Limited Warranty, see above for more detail.
  • Page 4 AeGIS 7000S SERIES 2.1 General Wiring Diagram file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 6 AeGIS 7000S SERIES Figure 2.1 General Wiring Diagram 2.2 Power Wiring Diagram file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 7 AeGIS 7000S SERIES Figure 2.2 Power Wiring Diagram 2.3 VOIP Wiring Diagram In rare occasion, compatibility issue may occur between the AeGIS 7000S Series and your VOIP line. file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 8 AeGIS 7000S SERIES Figure 2.3 Wiring Diagram 2.4 Door Strike Wiring Diagram file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 9 AeGIS 7000S SERIES Figure 2.4 Door Strike Wiring Diagram 2.5 Input Device and Door Sensor Wiring Diagram file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 10 AeGIS 7000S SERIES Figure 2.5 Input Device and Door Sensor Wiring Diagram 2.6 Satellite System Wiring Diagram file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
  • Page 11 AeGIS 7000S SERIES Figure 2.6 Satellite System Wiring Diagram Assuming all wiring has been done properly according to chapter 2 then turn the system s power on as shown on figure 2.1 number 10. The LCD will go into a cycling mode as below LCD Display OK --- Flash OK --- RTC OK --- DTMF OK --- INIT START --- INIT COMPLTE --- SCROLLING CHAPTER 3...

  • Page 12: Chapter 4 Programming

    AeGIS 7000S SERIES CALL, ENTER, EXCEPT PROGRAM CHAPTER 4 Programming Log-in to Programming Mode 1. Press 0 and # simultaneously, then release, the welcome screen will stop scrolling. 2. Enter 4-digit master code (default=0000) then press # (if you do not know the master code, see chapter 2 step Function Code 00 - Change Master Code Log-in to programming...

  • Page 13: Function Code 03: Delete Tenant Directory

    AeGIS 7000S SERIES Enter 02 then #, the display will show Enter tenant directory number to be edited then # Enter new name up to 16 characters then press # or press without entering anything to keep the existing name Chapter 3 for keypad layout Enter the a new tenant phone number up to 16-digit then press # or...

  • Page 14: Function Code 06: Add New Access Code

    AeGIS 7000S SERIES Log-in to programming 2. Enter 30 then # 3. Enter 0= disable (default) or 1= enable then press # Function Code 06 - Add New Access Code An access code is a keyless entry code to unlock the door. An access code can be programmed in 4, 5 ,6,7, or 8 digits, see function code 09 to change the access code number of digit.
  • Page 15 AeGIS 7000S SERIES Enter 07 then # Enter code to be deleted then press # if access code exists if access code does not exist Repeat this step to delete another code Function Code 08 - Clear All Access Cod Log-in to programming Enter 07 then # Enter...
  • Page 16 AeGIS 7000S SERIES Enter door 1 or 2, or 3 for both then press # Enter time zone 1-3 then press # Enter 00 hours) - 20 see function code 17 then press # Enter satellite system ID 0-7 (enter 0 if no satellite connected to the QR5) then press # Enter 0= no more additional time zone then press # and return to...

  • Page 17: Function Code 15: Initializing Event Recording

    AeGIS 7000S SERIES * to cancel Function Code 13 - Set Time Log-in to programming Enter 13 then # Enter HH= in military time MM= minute the press # Function Code 14 - Set Date Log-in to programming Enter 14 then # Enter YYYY/MM/DD YYYY= year MM= Month...

  • Page 18: Function Code 17: Time Zone (Tmz)

    AeGIS 7000S SERIES Open and close the door according to the schedule programmed. if the open time is 06:00 and close time 18:00, door 1,2 or both will unlock at 06:00 am and close at 06:00 pm. 10 AUS can be programmed. Log-in to programming Enter 16 then # Enter AUS (0-9) then press #...

  • Page 19: Function Code 18: Holiday Zone (Hld)

    AeGIS 7000S SERIES Enter 0= Delete the existing time zone then press # 1= add new time zone then press # Enter start time in military then press # Enter end time in military then press # Enter 0= Sunday, 1= Monday, 2= Tuesday, 3= Wednesday, 4= Thursday, 5= Friday, 6= Saturday then press # Return to step 3 to program more time zone Function Code 18 - Holiday Zone (HLD)

  • Page 20: Function Code 20: Auxin1

    AeGIS 7000S SERIES Enter 2, 3 or 4 digit then press # Function Code 20 - AUXIN1 AUXIN1 is used for input device such as postal lock, infrared sensor, exit button, etc..AUXIN1 is associated with relay 1 Log-in to programming Enter 20 then # 3.

  • Page 21: Function Code 24 Alarm

    AeGIS 7000S SERIES 3. Enter 1-9 (default=3) then press # Function Code 24 Alarm The system will make have warning alarm if invalid code or card has been enter according to the setting on function code 23. Log-in to programming 2.

  • Page 22: Function Code 29 Unlock Relay 2 Time

    AeGIS 7000S SERIES Log-in to programming Enter 28 then # 3. Enter 01-99 (second) then press # Function Code 29 Unlock Relay 2 Time Relay 2 trigger time. Log-in to programming Enter 29 then # 3. Enter 01-99 (second) then press # Function Code 33 Temporary Code The code will expire after a certain amount of used (1-10 times) in the programming, Up to 10 temporary codes can be programmed.

  • Page 23: Function Code 34 Special Code

    AeGIS 7000S SERIES 9. Enter 00 hours) - 20 see function code 17 then press # 10. Enter Sat id 0-7 then press # (enter 0 if no satellite connected to the QR5) Enter 0= no more additional time zone then press # and return to step 3 to program another temporary code 1= add additional time zone then press # and return to...

  • Page 24: Function Code 35 Temporary Card

    AeGIS 7000S SERIES 10. Enter Sat ID 0-7 then press # (enter 0 if no satellite connected to the QR5) 11. Enter 0= no more additional time zone then press # and return to step 3 to program another temporary code 1= add additional time zone then press # and return to step 8 * = exit programming...

  • Page 25: Function Code 36 Special Card

    AeGIS 7000S SERIES 0= no more additional time zone then press # and return to step 3 to program another temporary code 1= add additional time zone then press # and return to step 8 * = exit programming Function code 36 Special Card Unlock hold (open hold) and use same fob or card to lock (close) door or gate.

  • Page 26: Function Code 39 Disable And Enable Remote Access

    AeGIS 7000S SERIES The system will answer an incoming call after a number of rings. Sharing the phone line with fax or alarm system, disable this code. Log-in to programming 2. Enter 38 then # 3. Press 0= disable auto answer 1-9= answer in 1-9 rings then press # Function Code 39 Disable and Enable Remote Access...
  • Page 27 AeGIS 7000S SERIES Function Code 42 Relay 2 Mode Relay 2 can be set to four different mode: 1= door control, 2= trigger simultaneously as relay 1, 3= alarm mode (see function code 24), 4= turn relay 2 on/off remotely (DTMF key7/6) Log-in to programming 2.

  • Page 28: Firmware Version

    AeGIS 7000S SERIES 3. Enter 0-9 then pres # Enter 0= Delete the existing time zone then press # 1= add new time zone then press # Enter start time in military then press # Enter end time in military then press # Enter 0= Sunday, 1= Monday, 2= Tuesday, 3= Wednesday, 4= Thursday, 5= Friday, 6= Saturday then press #...

  • Page 29: Function 50: Erase Memory To Factory Default

    AeGIS 7000S SERIES If the system is installed behind a Private Branch Exchange (PBX) then 9 is necessary before dialing an outside line. If this function is enabled then the system can only be dialing an outside line, it can't dial the extension. Log-in to programming 2.

  • Page 30: Chapter 5 Operations

    AeGIS 7000S SERIES 3. 1st segment, enter the characters then press # see Chapter 3 for keypad layout 4. 2nd segment, enter the characters then press # see Chapter 3 for keypad layout 5. 3rd segment, enter the characters then pres # see Chapter 3 for keypad layout CHAPTER 5...
  • Page 31 AeGIS 7000S SERIES 6. Press # then 4-digit Master code (default is 0000), short beep will be heard if master code is accepted 7. Press * to establish two ways communication 8. Press 9 to release relay 1 (door 1) or 8 to release relay 2 (door 2). file:///C|/PACH-CO.COM-2018/online_manual/aegis7000s.htm[6/13/2019 7:18:06 AM]...
