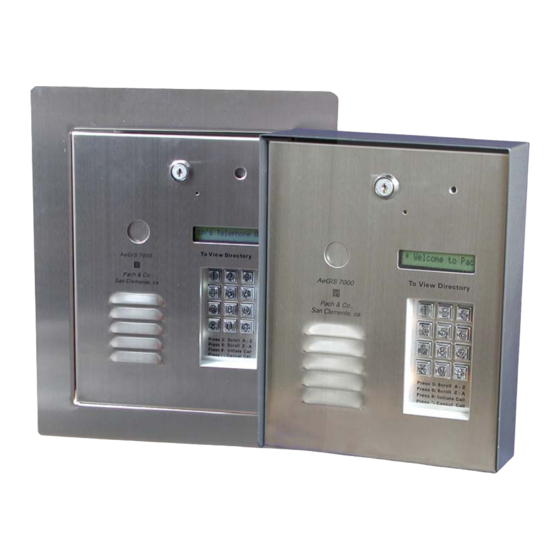

PACH & COMPANY AeGIS 7000 Series Installation And Programming Manual
Aegis 7000 series
Hide thumbs
Also See for AeGIS 7000 Series:
- Installation and programming manual (30 pages) ,
- Quick start manual (2 pages)
Related Manuals for PACH & COMPANY AeGIS 7000 Series
Summary of Contents for PACH & COMPANY AeGIS 7000 Series

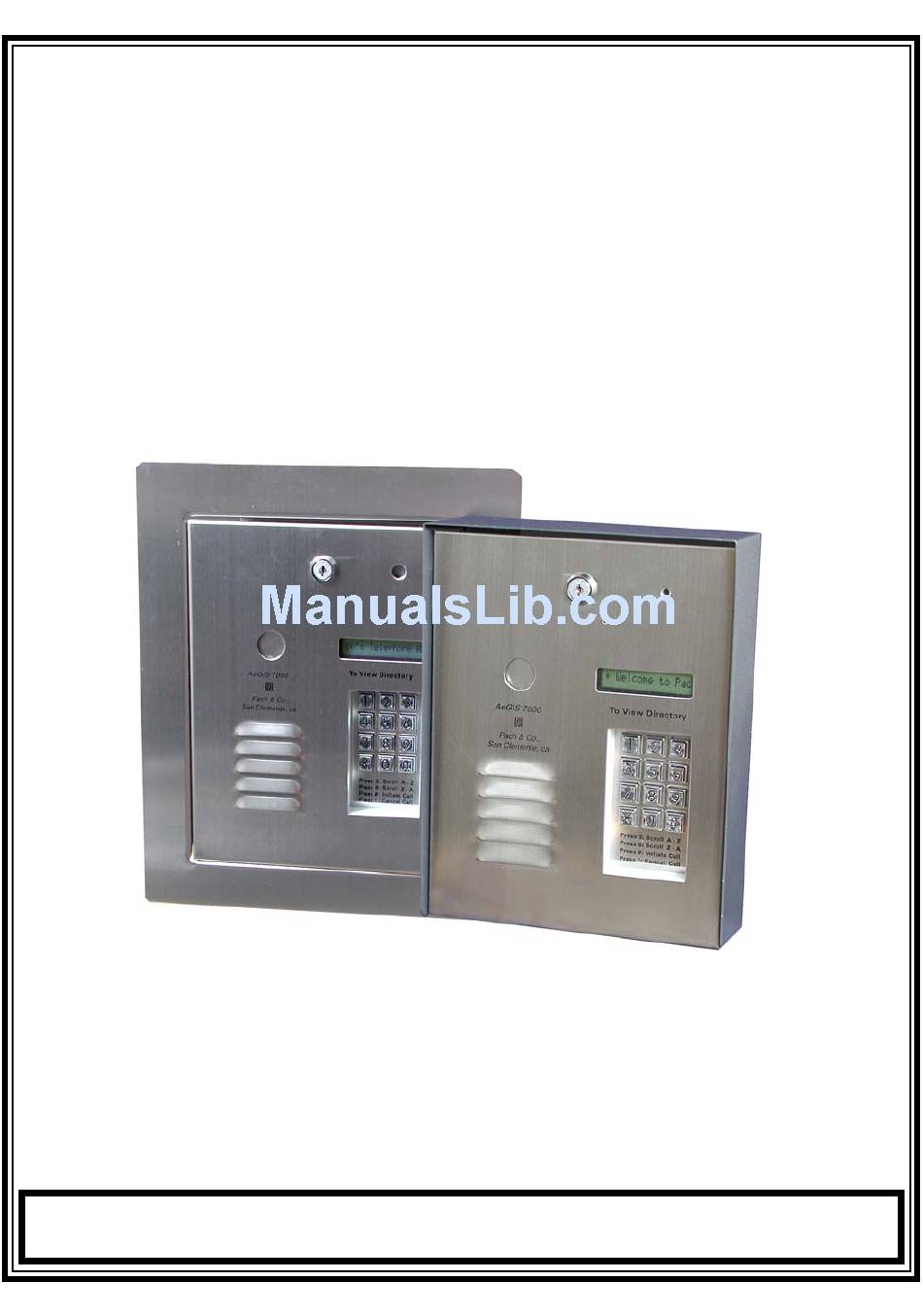

- Page 1 AeGIS 7000 Series Installation and Programming Manual REV. 08.31.10 941 Calle Negocio PACH & COMPANY Phone: 888-678-7224 www.pach-co.com San Clemente, CA 92673 Fax: 949-498-6879...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Limitations of Liability Chapter 1. Getting Started ..................... 1 1.1. Introduction ..........................1 1.2. System Description, Specifications and Accessories ..............1 1.3 Unpacking the System ......................... 2 1.4 Warranty ............................3 Chapter 2. Installation ....................4 Chapter 3. Programming ....................7 3.1. -
Page 4: Limitations Of Liability
Pach and Company does not assume any liability for any damages, which may arise in installation or use of the AeGIS 7000 Series. Pach and Company does not assume liability for any incompatibility between the AeGIS 7000 Series and users devices. -
Page 5: Chapter 1. Getting Started
Pach & Company thanks and congratulates you on the purchase of your AeGIS 7000 Series (7025, 7050, 7100, 7150,7200 or 7250) Telephone Access Control Systems. The manual is designed to guide you through the proper programming and use of the AeGIS 7000 Series. It is important for you to read and follow the manual completely. -
Page 6: 1.3 Unpacking The System
If they do not match, please contact Pach and Company toll free number at (888) 678-7224. All the items listed below come with the AeGIS 7000 Series. If you have missing items, please contact your distributor or Pach and Company at (888) 678-7224. - Page 7 10. Pach and Company is not responsible for time, travel, and/or labor costs of any distributor and/or dealer-installer, including but not limited to, any expenses to install, uninstall or reinstall hardware/software/firmware related to warranty issues, product enhancements, or product failures. Pach and Company Chapter 1 Page 3 AeGIS 7000 Series GETTING STARTED...
- Page 8 NEW PRODUCT WARRANTY EXCEPTION WIEGAND CARD, KEYFOB AND TRANSMITTER Pach and Company warrants the wiegand card, clam, and keyfob to be free of defects in material or workmanship for a period of three (3) months from the date of invoice. The above warranty is subject to the following conditions. 1.
- Page 9 3. Warranty is immediately null and void if the product has been altered, repaired, or modified without express written authorization from Pach and Company Technical Department, with such authorization given only to manufac- turer approved dealer/installers. 4. Under no circumstances will Pach and Company honor warranty any product found to have been altered, repaired, and/or modified by the end-user consumer.
-
Page 10: Warranty
contact their selling dealer-installer for any/all warranty issues. 8. Distributor and/or Dealer-Installer are responsible for all shipping charges, incl. freight and insurance fees, for products shipped to Pach and Company repair center. 9. Pach and Company warranty does not guarantee any product, new or repaired, to be free of operation error or service interruption in any way during the course of daily product operation 10. -
Page 11: Chapter 2. Installation
INSTALLATION A proper installation of the AeGIS system is very essential. You MUST follow the installation procedures, block diagrams and installation requirements as specified in this chapter. Figure 2.1 Pach and Company Chapter 2 Page 4 AeGIS 7000 Series INSTALLATION... - Page 12 AeGIS 7000 to dial the outside line. DOOR STRIKE OR ELECTRICAL STRIKE The AeGIS 7000 series provides a single relay form "C" dry contact: Normally Open (NO) and Normally Closed (NC). • 10 Ampere 120 VAC or • 10 Ampere 24 VDC or •...
- Page 13 AeGIS 7000 Series, use the same connection as shown on figure 2.1. • Two conductors, 18-gauge shielded stranded wires must be used. Ground one end of the shielded to earth ground.
-
Page 14: Chapter 3. Programming
Chapter 3 PROGRAMMING The AeGIS 7000 Series can be programmed locally using the built-in keypad or remotely via a touch tone phone. 3.1 LOCAL PROGRAMMING VIA BUILT-IN KEYPAD Log on to programming mode Two ways to log on to programming mode:... -
Page 15: Programming Function Codes
Code will remain in the system. Step 4 Select another Function Code to program different field from the table or press * to exit the programming mode and you hear “Three Short Beeps”. Pach and Company Chapter 3 Page 8 AeGIS 7000 Series PROGRAMMING... -
Page 16: Program A New Tenant
Press to clear all letters them it alphabetical order. or numbers entered. 7. The same Name, Telephone Number and Access Code can be assigned into different directory code number. Pach and Company Chapter 3 Page 9 AeGIS 7000 Series PROGRAMMING... -
Page 17: Modify An Existing Tenant Directory
11-digit then press #, the display shows: Note: The AeGIS 7000 Series does not provide a pause to dial. Step 6 Enter the 4-digit access code then press #. The 4-digit code is for the tenant to to gain access into the door or gate. -
Page 18: Delete An Existing Tenant Directory
Step 2 Enter Function Code 04 then press #, the NOT AVAILABLE. display shows: Step 3 • Press 13 then # the display shows: then proceed to step 4 or Pach and Company Chapter 3 Page 11 AeGIS 7000 Series PROGRAMMING... -
Page 19: Manual Lock (Open) Or Unlock (Close) Door
Step 4 Proceed to step 2 and select the same Function Code or different Function Code to continue programming or press to exit the programming mode and you will hear “Three Short Beeps”. Pach and Company Chapter 3 Page 12 AeGIS 7000 Series PROGRAMMING... -
Page 20: Single Or Multi Systems
1 st segment then enter the Step 3 Press combination of letter and number. welcome message then press # # to proceed to the 2 nd segment, the display shows: Pach and Company Chapter 3 Page 13 AeGIS 7000 Series PROGRAMMING... -
Page 21: System Information
Welcome Screen, to cancel and proceed to step 3. Step4 Press then proceed to step 2 and select the same Function Code or different Function Code Pach and Company Chapter 3 Page 14 AeGIS 7000 Series PROGRAMMING... -
Page 22: Change Talk Time
Short Beeps”. system will ignore further access code entries for 90 Step4 Press then proceed to step 2 and select the seconds. Step 4 Select another Function Code to Pach and Company Chapter 3 Page 15 AeGIS 7000 Series PROGRAMMING... -
Page 23: Select Tone Or Pulse Dialing
Step 3 Enter 1 to turn ON key press beep or 0 press #and you will hear “Two If the system is set for turn OFF key press beep, then press #. Multi (see Function Code Short Beeps”. 07), Pach and Company Chapter 3 Page 16 AeGIS 7000 Series PROGRAMMING... -
Page 24: Turn On Or Off Speaker Beep
(press 3 to scroll A-Z or 6 to scroll Z-A). Step 3 Press # to display the directory code. Pach and Company Chapter 3 Page 17 AeGIS 7000 Series PROGRAMMING... -
Page 25: Exit From Remote Programming
“Three Short Beeps”. Press 91 then press # to disconnect the call, you hear “Three Short NOT AVAILABLE. EXIT FROM Beeps”. REMOTE PROGRAMMING Pach and Company Chapter 3 Page 18 AeGIS 7000 Series PROGRAMMING... -
Page 26: Chapter 4. System's Operation
Step 1 Call the system ( you must know the phone number) then you hear “One Short Beep” if the call is connected. Step 2 Press to talk to the visitor then press 9 to unlock the door or hang up. Pach and Company Chapter 4 Page 19 AeGIS 7000 Series SYSTEM’S OPERATION... -
Page 27: How To Provide Remote Access
Step 1 Log on to programming mode (see section 3.1), the display shows: Step 2 Press * to exit, then the display shows: XXX is the total number of tenant in the system. Pach and Company Chapter 4 Page 20 AeGIS 7000 Series SYSTEM’S OPERATION... -
Page 28: Chapter 5. Trouble Shooting Guide
• The LCD's ribbon cable has red dots along the side. The red dots must be facing up. It must be connected to the terminal marked number 1. Pach and Company Chapter 5 Page 21 AeGIS 7000 Series TROUBLE SHOOTING GUIDE... - Page 29 GOING OUT WHILE THE • Both the visitor and tenant can't talk simultaneously. • Try to speak a little further from the system TENANT AND VISITOR ARE TALKING Pach and Company Chapter 5 Page 22 AeGIS 7000 Series TROUBLE SHOOTING GUIDE...
-
Page 30: Access Code
Our Services are available between 7:30 AM - 4:30 PM Pacific Standard Time. TOLL FREE (888) 678-7224. Pach and Company Chapter 5 Page 23 AeGIS 7000 Series TROUBLE SHOOTING GUIDE... -
Page 31: General Fcc Requirements
GENERAL FCC REQUIREMENTS This equipment complies with Part 68 of the FCC rules. Located on the back of your AeGIS system is a label that contains, among other information, the FCC registration and ringer equivalence number (REN) for the system. Prior to installing your AeGIS system, please call your telephone company and provide them the FCC registration and REN numbers as well as the telephone number of the line to which you will connect the system. -
Page 32: Quick Guide
SYSTEM’S OPERATION KEYPAD LAYOUT TO PLACE A CALL FROM THE AeGIS 7000 SERIES: • Press 3 to scroll the tenant name from A to Z. o r Press 6 to scroll the tenant name from Z to A, then press #.
