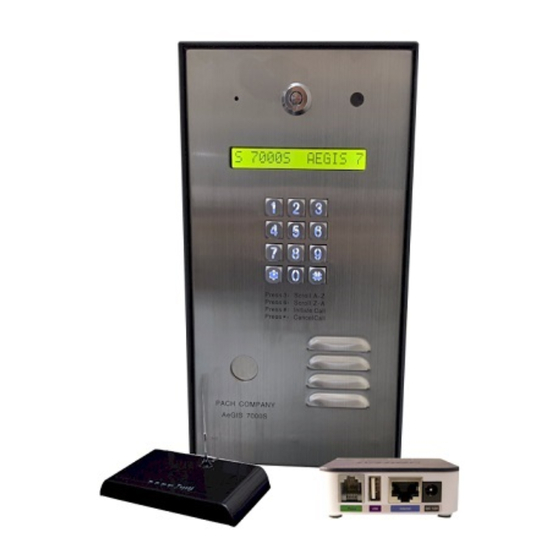

PACH & COMPANY AeGIS 7000SV Quick Manual

Exit program, cancel call
Save program
00 Change master code (0000
is default)
Add new forwarding tenant's
01
directory
Edit existing tenant's
02
directory
Delete existing tenant's
03
directory
Clear all forwarding tenant's
04
directory
05 Enable/Disable Call
06 New access code
07 Delete access code
08 Clear all access code
09 Access code digit (4-8 digit).
Default is 4-digit
10 Add new card
11 Delete card
12 Clear all card
13 Set time
14 Set date
15 Initializing event recording
16 AUS= auto unlock schedule
(0-9 schedule)
17 TMZ= time zone. 20 TMZ,
00-20.
18 HLD= holiday zone. 20 HLD,
1-20
19 Directory digit (2-4 digit).
Default is 2-digit
20 AUXIN1
0= disable (default)
1= enable control by relay 1
open interval
2= relay 1 control by AuxIn2
21 AUXIN2
0= disable (default)
1= enable control by relay 2
open interval
2= relay 2 control by AuxIn2
22 Do not disturb
0= disable (default),
1= enable
23 Lock-out Count
24 Alarm
0= disable
1= local beep for 60
seconds
2= disable system for 60
seconds with no beep
3= call directory (0-9)
25 Keypad beep
0= disable (default)
1=enable
26 Door beep
0= disable
1= enable (default)
27 Talk time (060-240
second). Default=60
second
28 Unlock relay1 time
(12-99 second).
Default= 12 second
29 Unlock relay2 time
(12-99 second).
Default= 12 second
33 Temporary code
34 Special code
35 Temporary card
36 Special card
38 System acknowledge
(0-9). Default= 3
39 Remote access
0= disable
1=enable (default)
40 DTMF relay 1 (0-9).
Default=9
41 DTMF relay 2 (0-9).
Default=8
42 Relay 2 Mode
1= door control (default)
2= relay 2 trigger
simultaneously as relay
1
3= enable if function
code 24 is enable
4= turn relay 2 on and
off
On=7, Off=6
43 DND: do not disturb time
zone (0-9)
44 Disable Time zone relay
1, 2 or both
45 Relay 1 and 2 unlock
timer
46 Firmware version
48 PBX enable. Default=
disable
49 Edit Access code
50 Erase the memory to
factory default
51 Welcome screen
AeGIS 7000S SERIES
PACH AND COMPANY INC.
Log on to programming:
Press
release, the welcome message will
stop scrolling (repeat if screen still
scrolling) enter 4-digit "MASTER
CODE" (0000 is default), the screen
will show as below:
Select the "Function Code" from
the table
OPERATION
Two ways to call tenant
1. Press to scroll name from A-Z or
from Z-A then press to call name selected.
2. Press wait for dial tone then press the directory
number
Opening the door remotely press
(relay 2)
Opening the door with the access code press
(display screen will stop scrolling) then press a valid 4-digit
access code.
Extending talk time tenant must press
phone after the time out warning beep.
Calling into the system:
1. Enable function code 39 and function code 38 must be
set 1-9
2. Call the system phone number, hear one beep if the
system
answering the call.
3. Press then 4-digit master code, hear one short
beep
4. Press to establish two way communication
5. Press or to release the door.
.
• 24 Months warranty for complete system
• 6 Months warranty for Printed Circuit Board
QUICK GUIDE
simultaneously then
to scroll name
(relay 1) or
from the
