INSTALLATION AND PROGRAMMING MANUAL
Rev. 02-2011

Advertisement

loading

Related Manuals for PACH & COMPANY AeGIS 8000 PLUS

Summary of Contents for PACH & COMPANY AeGIS 8000 PLUS

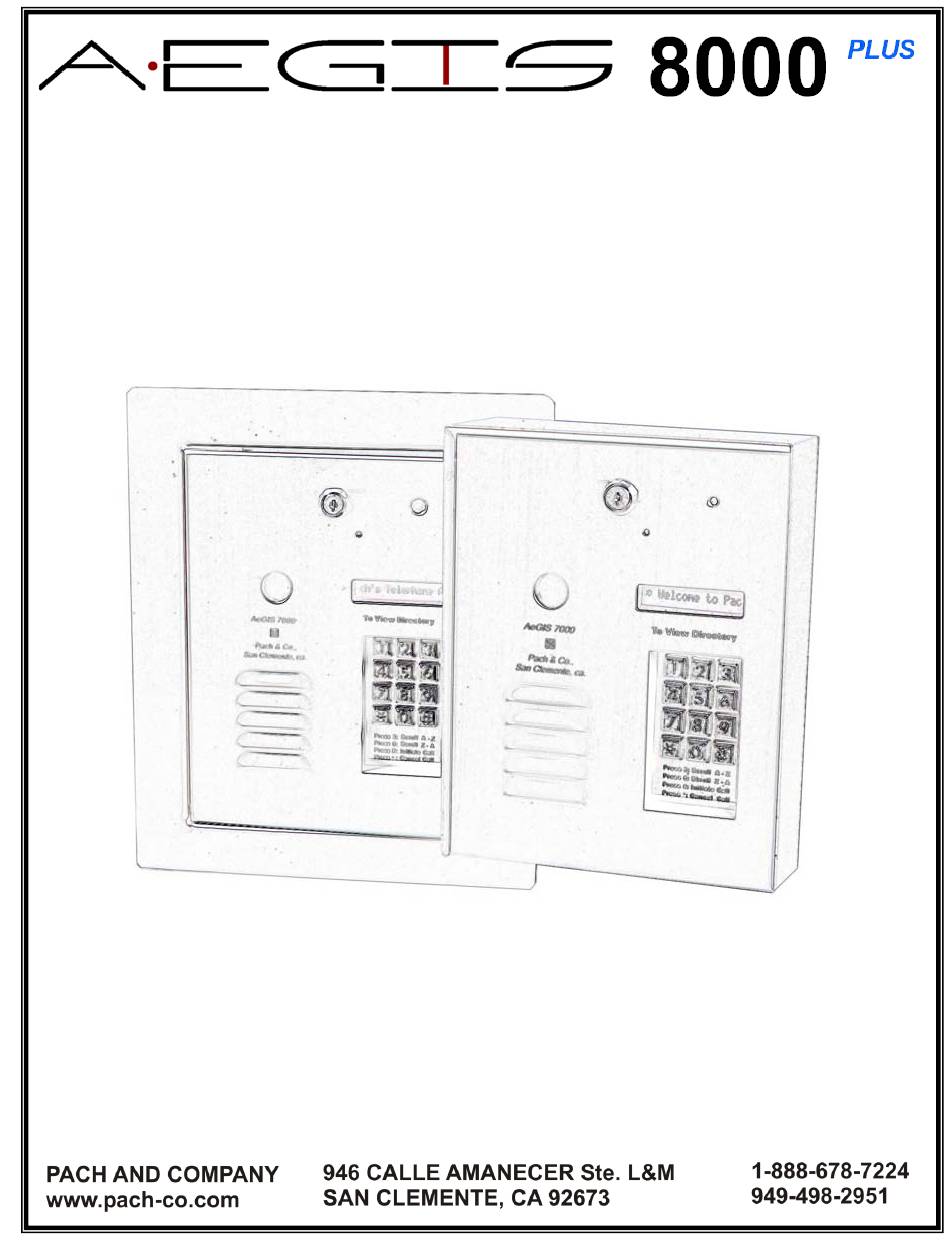

  • Page 1 INSTALLATION AND PROGRAMMING MANUAL Rev. 02-2011...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Chapter 1 GETTING STARTED -------------------------------------------------------------- 4 Chapter 2 INSTALLATION WIRING DIAGRAM ---------------------------------------- 11 Chapter 3 PROGRAMMING ------------------------------------------------------------------ 13 Chapter 4 SYSTEM’S OPERATION -------------------------------------------------------- 24 Chapter 5 TROUBLE SHOOTING GUIDE ------------------------------------------------ 26 GENERAL FCC REQUIREMENTS ------------------------------------------- 28 QUICK GUIDE ---------------------------------------------------------------------- 29 AeGIS8000P Page 2...
  • Page 3 LIMITATIONS OF LIABILITY This manual is subject to change without notice. Pach and Company is not liable for any errors that might occur from use of this document, nor is any commitment to update the information herein implied. Pach and Company does not assume any liability for any damages, which may arise in installation or use of the AeGIS 8000P Series.

  • Page 4: Chapter 1 Getting Started

    Chapter 1 GETTING STARTED Introduction Pach & Company thanks and congratulates you on the purchase of your AeGIS 8000P Telephone Entry Access Control Systems. The manual is designed to guide you through the proper programming and use of the AeGIS 8000P Series. It is important for you to read and follow the manual completely.
  • Page 5 o Talk Time timer Technical Specifications o Power Input: 12 VAC 40 VA (supplied) or 12 VDC 40VA UL Listed Transformer o Current Consumption: 500mA idle, 700mA operation o Emergency Battery: 12Vdc, 4Ahr rechargeable (not supplied) o Telephone Line: Standard voice grade RJ11 jack. o Night Light: 14V 0.080A 15,000 Average life hours.
  • Page 6 Limited Warranty Pach and Company new products are warranted to be free of defects in material or workmanship for a period of 24 month from the date of purchase. This warranty extends only to wholesale customers who buy direct from Pach and Company or through Pach and Company’s normal distribution channels. AeGIS8000P Page 6...
  • Page 7 Pach and Company does not warrant this product in any way to the end user consumer. Consumers must obtain warranty information from the selling dealer and/or installer as to the nature of the dealer’s warranty, if any. All contact to Pach and Company from the end user consumer will be referred to the consumer’s selling dealer and/or installer.
  • Page 8 Wiegand card, keyfob and transmitter Pach and Company warrants the wiegand card, clam, and keyfob to be free of defects in material or workmanship for a period of three (3) months from the date of invoice. The above warranty is subject to the following conditions.
  • Page 9 o Cause of product failure is not due to vandalism or malicious mischief, improper installation, abnormal physical or electrical stress, lightning, power surges, misuse, negligence, accidents, or Natural disasters. o Warranty is immediately null and void if the product has been altered, repaired, or modified without express written authorization from Pach and Company Technical Department, with such authorization given only to manufacturer approved dealer/installers.
  • Page 10 o Pach and Company reserves the right to replace a previously repaired product with a like product of equal value in the event of repair failure, provided repair failure occurs within the specified warranty period. o Distributors and/or Dealer-Installer must first obtain a Return Merchandise Authorization (RMA) number from Pach and Company Technical Department before returning any product to factory for non-warranty repair.

  • Page 11: Installation Wiring Diagram

    Chapter 2 INSTALATION WIRING DIAGRAM Checking your installation 1. Turn the “Power” On, the display will go into cycle mode as show LCD DISPLAY OK FLASH OK DTMF OK INIT START COMPLETE . . . Welcome to Pach’s WARNING: IF THE DISPLAY SHOWS BLANK SCREEN, TURN THE SYSTEM IMMEDIATELY 2.
  • Page 12 Checking your installation 1. Turn the “Power” On, the display will go into cycle mode as show LCD DISPLAY OK FLASH OK DTMF OK INIT START COMPLETE . . . Welcome to Pach’s WARNING: IF THE DISPLAY SHOWS BLANK SCREEN, TURN THE SYSTEM IMMEDIATELY 2.

  • Page 13: Chapter 3 Programming

    Chapter 3 PROGRAMMMING Two ways to Log-on to programming mode: First using system’s keypad 1. Press 0 and # simultaneously then release, see below Press 0# simultaneously, LCD screen will stop scrolling if the LCD is still scrolling repeat the process then 4-digit Master Code (0000 is default master code) The screen will show as below, if the master code is valid Select Func: _ _...
  • Page 14 Keypad Function and Layout III. Programming Function Codes FUNCTION CODE PROGRAMMING Must be in programming mode, see Two ways to MASTER CODE (0000 is default) Log-on to programming mode: on page 13 Change the master code for your security 1. Enter function code 00 then press # MASTER CODE: 0000 2.
  • Page 15 Enter the Name NOTE: DIRECTORY MUST BE UNIQUE FOR EACH TENANT OTHERWISE THE DISPLAY _ _ _ _ _ _ _ _ _ _ _ _ _ WILL SHOW DIR # is used ! 3. Enter the person name up to 16-characters. Press # after entering each letter, see (Keypad Function and Layout page 14).
  • Page 16 Repeat step 1 to edit another tenant directory. Must be in programming mode, see Two ways to DELETING A DIRECTORY Log-on to programming mode: on page 13 1. Enter function code 03 then press # NOTE: IF DIRECTORY DOES NOT EXIST, THE DISPLAY WILL SHOW Delete Dir: _ _ _ Error on Delete !
  • Page 17 Must be in programming mode, see Two ways to SINGLE OR MULTI SYSTEM Log-on to programming mode: on page 13 1= Single 0= Multi Default is single 1. Enter function code 07 then press # SING=1, MULT=0: 1 NOTE: SET TO MULTI IF MORE THAN ONE SYSTEM SHARING ONE PHONE LINE 2.
  • Page 18 Must be in programming mode, see Two ways to DOOR2 OPEN TIME Log-on to programming mode: on page 13 04-99 Seconds Default is 12 seconds 1. Enter function code 71 then press # OPEN1 TIME:12 2. Press 04-99 then press # Must be in programming mode, see Two ways to DOOR2 OPEN TIME Log-on to programming mode: on page 13...
  • Page 19 Date:MMDDYYYYD 2. Enter MM= Month, for example 02 DD= Date, for example 12 YYYY= Year, for example 2011 D= Day, 0=Sun, 1=Mon, 2= Tue, 3= Wed, 4=Thu, 5=Fri, 6= Sat then press # Must be in programming mode, see Two ways to INTIALIZING EVENT RECORDING Log-on to programming mode: on page 13 0= cancel...
  • Page 20 WARNING: MASKING THE MASTER CODE WILL DISABLE THE RETRIEVAL BUTTON. THERE ISN’T A WAY TO RECOVER THE MASTER CODE. PACH AND COMPANY WILL NOT COVER THE WARRANTY IF THE MASTER CODE HAS BEEN FORGOTTEN. IF YOU ARE THE INSTALLER DO NOT MASK THE MASTER CODE.
  • Page 21 Default is Enable EN-MODEM(0,1):0 2. Press 1= enable or 0=disable then press # Must be in programming mode, see Two ways to LOCK OUT COUNT Log-on to programming mode: on page 13 1-9 Times Default is 3 times 1. Enter function code 72 then press # LOCK-OUT CNT:3 WARNING: SYSTEM WILL BE DISABLED FOR 90 SECONDS IF INVALID ACCESS CODE HAS...
  • Page 22 Must be in programming mode, see Two ways to Log-on to programming mode: on page 13 0= disable 1= enable 1. Enter function code 77 then press # Default is disable PBX_EN(1,0):0 2. Press 1= enable or 0= disable then press #, if 1 is selected, the screen will show: PBX _No(0-9): _ 3.
  • Page 23 Must be in programming mode, see Two ways to TOTAL NUMBER OF TENANT DIRECTORY Log-on to programming mode: on page 13 Number of tenants are occupied the system memory 1. Enter function code 91 then press # Total TnT: 025 2.

  • Page 24: Chapter 4 System's Operation

    Chapter 4 SYSTEM’S OPERATION A. How to view tenant’s directory 1. Press (scroll A-Z) or 2. Press (scroll Z-A) B. How to initiate a call from the system Two ways to initiate a call 1. By scrolling (see A, press 3 or 6 to scroll) then press # to call 2.
  • Page 25 3. Press to establish communication 4. Press 9 to release the door. G. How to use the 4-digit access code to open 1. Press , the welcome screen will stop the door scrolling otherwise repeat this step. 2. Press 4-digit valid access code. WARNING: SYSTEM WILL BE DISABLED FOR 90 SECONDS IF INVALID ACCESS CODE HAS BEEN ENTERED...

  • Page 26: Trouble Shooting Guide

    Chapter 5 TROUBLE SHOOTING GUIDE AUDIO PROBLEMS 1. Turn the system’s power off and on No audio on key(s) press 2. Check the speaker and microphone connection, check for broken wires. 3. Disconnect the microphone and speaker connector then check the speaker’s impedance, must read between 18-24 ohms 1.
  • Page 27 a heater pad (AHP5) COMMUNICATION PROBLEMS 1. Turn the system’s power off and on No dial tone 2. Check the phone line for dial tone. Must check at the end of the phone cord. 3. Disconnect the microphone and speaker connector then check the speaker’s impedance, must read between 18-24 ohms 4.

  • Page 28: General Fcc Requirements

    GENERAL FCC REQUIREMENTS This equipment complies with Part 68 of the FCC rules. Located on the back of your AeGIS system is a label that contains, among other information, the FCC registration and ringer equivalence number (REN) for the system. Prior to installing your AeGIS system, please call your telephone company and provide them the FCC registration and REN numbers as well as the telephone number of the line to which you will connect the system.

  • Page 29: Quick Guide

    AeGIS8000P Page 29...
  • Page 30 AeGIS8000P Page 30...
